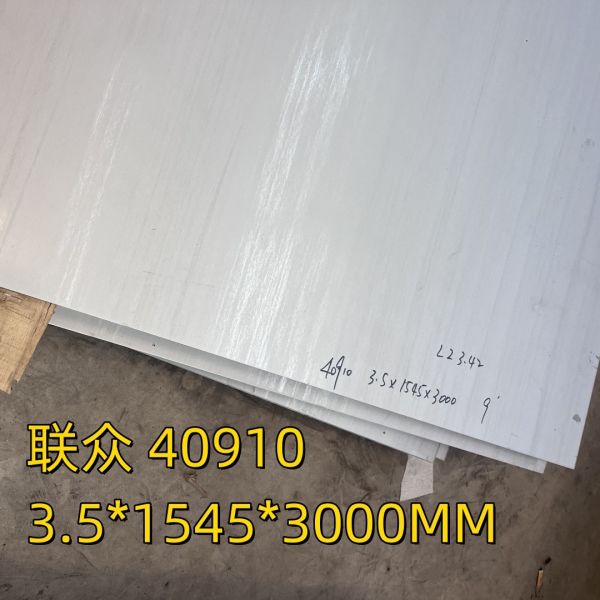

SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
Specifications
Brand Name :
TISCO,BAO STEEL
Model Number :
409L
Certification :
ISO
Place of Origin :
China
MOQ :
2 Tons
Price :
USD 1250-1800/Ton
Payment Terms :
L/C, T/T
Supply Ability :
2000tons per month
Delivery Time :
10 days after receive the deposit
Packaging Details :
export packing
Surface :
2B 1D
Thickness :
3-10mm
width :
1000,1219,1500mm
Lengh :
2000,2438,3000
Standard :
ASTM, AISI, DIN, EN, GB, JIS
Type :
Plate, Sheet Plate Coil
Feature :
Corrosion Resistance High Temperature
Commodity :
stainless steel plate 409L
Port :
Shanghai
Application :
Food industry, chemical industry, construction, etc.
Panel Thickness :
8 mm
Durability :
Long-lasting
Quality :
Prime Grade
Weight :
Lightweight
Raw Material :
Plate Rolling
Material :
Stainless Steel
Finishing :
Powder Coated
Certifications :
ISO, ASTM, EN
Description

SUH409L UNS S40910 Stainless Steel Plate 1D Finished 3.5mm Hot Rolled 409L Plate

SPECIFICATION

Specifications ASTM A240 / ASME SA240
Dimensions ASTM, ASME and API
Standard JIS, AISI, ASTM, GB, DIN, EN, etc.
Surface 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc.
Finish Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.

CHEMICAL COMPOSITION OF STAINLESS STEEL 409L PLATES

Grade C Mn Si S P Cr Ni Ti
SS 409L 0.03 max 1.00 max 1.00 max 0.030 max 0.040 max 10.50-11.70 1.5 max -

MECHANICAL PROPERTIES OF ASTM A240 STAINLESS STEEL 409L SHEETS

Element Density Tensile Strength Yield Strength (0.2%Offset) Elongation Hardness
SS 409L 7.8 g/cm3 MPa – 380 MPa – 170 20 % Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t

Stainless steel plate surface description

Finish Designation Method and degree of finish
No.1 After hot rolling, heat treatment, pickling or other equivalent treatment is applied.
No.2D Annealing and pickling are performed after cold rolling; material is soft with surface of silver-white luster; used for general applications and deep drawing.
No.2B After 2D finish, skin pass rolling is performed to obtain a more suitable luster; the surface becomes very exquisite; used for general applications.
No.3 Intermediate 100-120 grit finish; used for applications in which surface polishing is performed after shaping.
No.4 General 150-180 grit finish; used for restaurants and kitchen equipment and tools.
#240 240 grit finish; used when a finer finish than No. 4 is required; typically for restaurants and kitchen equipment and tools.
#320 320 grit finish polished product.
HL This finish is performed by continuous linear polishing using an abrasive of appropriate grain size; mainly used for architectural applications.
BA Achieved by performing bright annealing after cold rolling and then skin pass rolling to obtain even greater reflectance; provides excellent corrosion resistance; used for household appliances, kitchen equipment, and automobiles.
8K Through multiple grinding, it achieves very high brightness and smoothness, like a mirror.

SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L

SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409LSUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L

Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.


Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.


Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6:What is your delivery time?

A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.


Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
