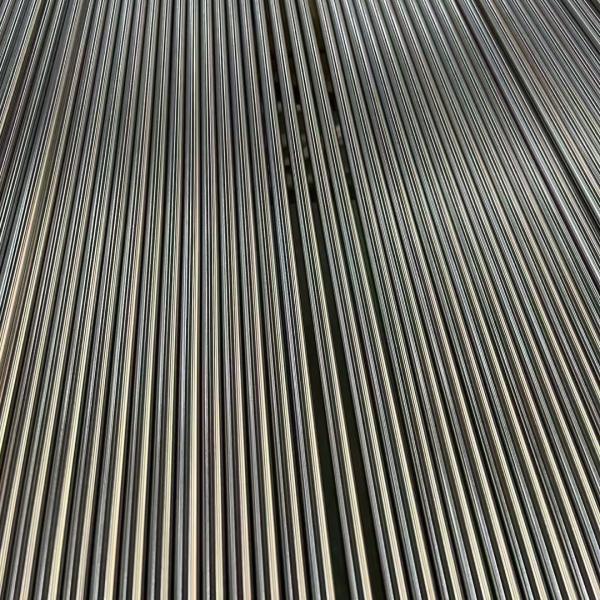

SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
Specifications
Brand Name :
MITTEL
Model Number :
316L 1.4404
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
100KGS
Price :
2.5-3.95 USD/KG
Payment Terms :
L/C, T/T, D/P
Supply Ability :
850000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Box
Application :
Construction,Decoration,Industry,boiler,Chemical
Standard :
DIN,ASTM,JIS,AISI
Steel grade :
304 304L 316 316L 310S 321
Type :
Seamless
Welding line type :
Seamless
Thickness :
1mm-20mm
Length :
3000mm~6000mm
Shape :
Round Pipe Tube
Outer diameter :
6-762mm
Technique :
Cold Drawn
Material :
stainless steel,300 Series
Finish :
polished,Ba,pickled
Description

SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe

Product Description

Name Pickled Seamless Steel Pipe
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304/TP304L /TP316/ TP316L /TP347/ TP347H /TP321/ TP321H /TP310/ TP310S/TP310H
TP317L/TP317
S31803/S32205 S32750 S32760 S32304 S32101
Outer Diameter Seamless Pipe: 6mm-610mm
Thickness Seamless Pipe: 0.6mm - 60mm
Length 5.0-5.8 MTR or as customers' request
Tolerance According to the Standard.
Test UT,ET,HT,RT,ect, and others according to the standard,or as the requests of the customers
Sample Yes
Certificate ISO 9001:2008
Marking Standard, Grade, Size, Length and Heat No.

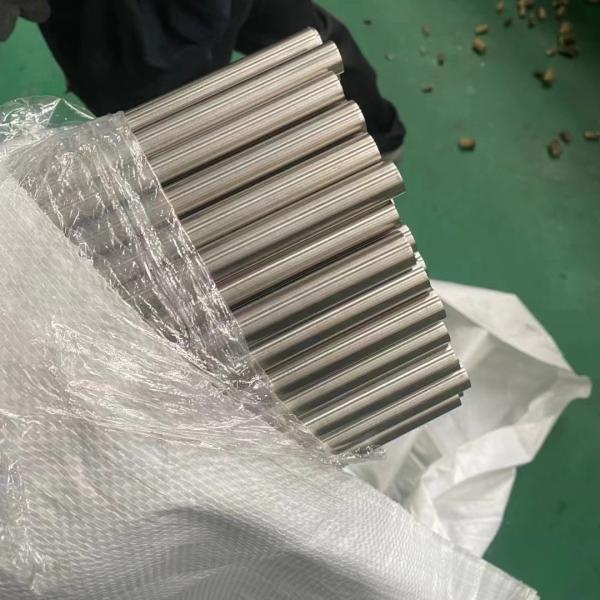

Packing Details Plastic bags in bundles, wooden cases or depend on buyer’s requirement
Payment Terms T/T, D/P at sight, L/C at sight
Delivery Time Depend on the quantity
Supply Ability 1000 tons per month

Bright Annealed Stainless Steel Tube ASTM A269 TP304 TP316

Size range: O.D.: 4.0-760mm W.T.:1-50mm L: according to customer requirement

Manufacture:

The tubes are made by seamless or welded process.

The tubeing can be hot finished or cold finished

Heat treatment:

All tubes are furnished in the heat-treated condition

Mechanical Tests Requirement:

Flaring Test (Seamless Tubes)

Flange Test (Welded Tubes)

Hardness Test

Hydrastatic or Nondestructive Electric Test

Surface Condition:

The tube surface are pickled free of scale.

When bright annealing is used, pickling is not used.

Chemical Requirement:

Grade: TP201 TP201LN TP304 TP304L TP304LN TP316 TP316L TP316LN
UNS S20100 S20153 S30400 S30403 S30453 S31600 S31603 S31653
C, max 0.15 0.03 0.08 0.035 0.035 0.08 0.035 0.035
Mn, max 5.5-7.5 6.4-7.5 2.00 2.00 2.00 2.00 2.00 2.00
P, max 0.06 0.045 0.045 0.045 0.045 0.045 0.045 0.045
S, max 0.03 0.015 0.030 0.030 0.030 0.030 0.030 0.030
Si, max 1.00 0.075 1.00 1.00 1.00 1.00 1.00 1.00
Ni 3.5-6.5 4.0-5.0 8.0-11.0 8.0-12.0 8.0-11.0 10.0-14.0 10.0-15.0 10.0-13.0
Cr 16.0-18.0 16.0-17.5 18.0-20.0 18.0-20.0 18.0-20.0 16.0-18.0 16.0-18.0 16.0-18.0
Mo … … … … … 2.00-3.00 2.00-3.00 2.00-3.00
Ti … … … … … … … …
Tantalum … … … … … … … …
Columbium … … … … … … … …
Nitrogen 0.25 0.10-0.25 … … 0.10-0.16 … … 0.10-0.16
V … … … … … … … …
Copper … 1.00 … … … … … …
Others … … … … … … … …

Grade: TP317 TP321 TP347 TP348 TP XM-10 TP XM-11 TP XM-15 TP XM-19
UNS S31700 S32100 S34700 S34800 S21900 S21904 S38100 S20910
C, max 0.08 0.08 0.08 0.08 0.08 0.040 0.08 0.06
Mn, max 2.00 2.00 2.00 2.00 8.0-10.00 8.0-10.00 2.00 4.0-6.0
P, max 0.045 0.045 0.045 0.045 0.045 0.045 0.045 0.045
S, max 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030
Si, max 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Ni 11.0-15.0 9.0-12.0 9.0-12.0 9.0-12.0 5.5-7.5 5.5-7.5 10.0-14.0 11.5-13.5
Cr 18.0-20.0 17.0-19.0 17.0-19.0 17.0-19.0 19.0-21.5 19.0-21.5 16.0-18.0 20.5-23.5
Mo 3.00-4.00 … … … … … 2.00-3.00 1.5-3.0
Ti … … … … … … … …
Tantalum … … … 0.10 … … … 0.10-0.30
Columbium … … 10XCmin 1.10max … … … … …
Nitrogen … … … … 0.15-0.40 0.15-0.40 … 0.20-0.40
V … … … … … … … 0.10-0.30
Copper … … … … … … … …
Others … … … Co 0.20max … … … …

Grade: TP XM-29 … … … … … … …
UNS S24000 S31254 S31725 S31726 S31727 S32053 S30600 S32654
C, max 0.08 0.020 0.035 0.035 0.030 0.030 0.018 0.020
Mn, max 11.5-14.5 1.00 2.00 2.00 1.00 1.00 2.00 2.0-4.0
P, max 0.060 0.030 0.045 0.045 0.030 0.030 0.020 0.030
S, max 0.030 0.015 0.030 0.030 0.030 0.030 0.020 0.005
Si, max 1.00 0.80 1.00 1.00 1.00 1.00 3.7-4.3 0.50
Ni 2.3-3.7 17.5-18.5 13.5-17.5 14.5-17.5 14.5-16.5 24.0-26.0 14.0-15.5 21.0-23.0
Cr 17.0-19.0 19.5-20.5 18.0-20.0 17.0-20.0 17.5-19.0 23.0-24.0 17.0-18.5 24.0-25.0
Mo … 6.0-6.5 4.0-5.0 4.0-5.0 3.8-4.5 5.0-6.0 0.2 max 7.0-8.0
Ti … … … … … … … …
Tantalum … … … … … … … …
Columbium … … … … … … … …
Nitrogen 0.20-0.40 0.18-0.22 0.20max 0.10-0.20 0.15-0.21 0.17-0.22 … 0.45-0.55
V … … … … … … … 0.30-0.60
Copper … 0.50-1.00 … … 2.8-4.0 … 0.50 max …
Others … … … … … … … …

Permissible Variations in Dimensions
Group Size, Outside
Diameter, in(mm)		 Permissible Variations in Outside Diameter, in.[mm] Permissible Variations in WT, % Permisible Variations in Cut Length, in[mm]
Over Under
1 Up to 1/2(12.7) ±0.005[0.13] ±15 1/8[3.2] 0
2 1/2 to 1 1/2, excl ±0.005[0.13] ±10 1/8[3.2] 0
3 1 1/2 to 3 1/2, excl ±0.010[0.25] ±10 3/16[4.8] 0
4 3 1/2 to 5 1/2, excl ±0.015[0.38] ±10 3/16[4.8] 0
5 5 1/2 to 8, excl ±0.030[0.76] ±10 3/16[4.8] 0
6 8 to 12, excl ±0.040[1.01] ±10 3/16[4.8] 0
7 12 to 14, excl ±0.050[1.26] ±10 3/16[4.8] 0

SUPPLEMENTARY REQUIREMENTS:

S1 Stress-Releived Anneald Tubes

S2 Air Underwater Pressure Test

S3 Stablizing Heat Treatment

S4 Intergranular Corrosion Test

Referenced Documents:

ASTM Standards:

ASTM A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels

ASTM A370 Test Methods and Definitions for Mechanical Testing of Steel Products

ASTM A480/A 480M Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting

Steel Plate, Shet, and Strips

ASTM A632 Specification for Seamless and Welded Austenitic Stainless Steel Tubing (Small-Diameter)

for General Service

ASTM A1016/A 1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel

and Stainles Steel Tubes

ASTM E 527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

ASME B31.3 Process Piping

SAE J1086 Practice for Numbering Metals and Alloys

SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless PipeSUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe

SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe

FAQ

Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.


Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.


Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6:What is your delivery time?

A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.


Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
