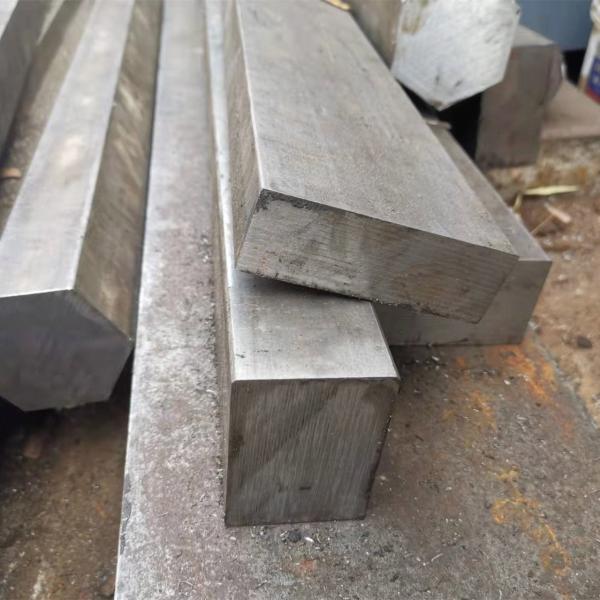

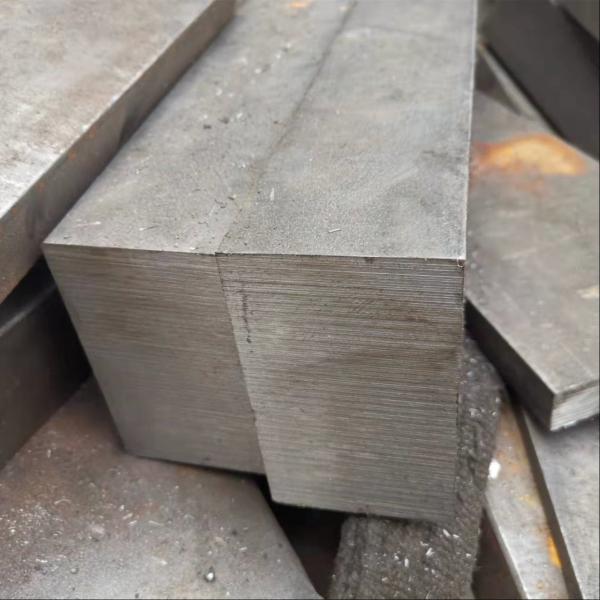

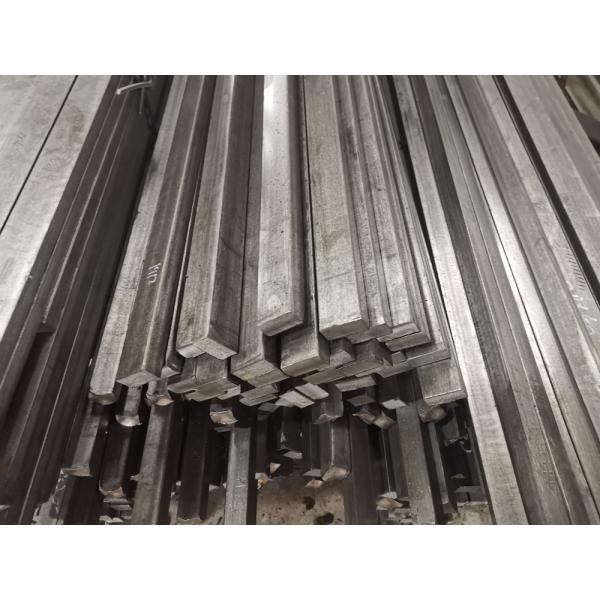

Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
Specifications
Brand Name :
Mittel
Model Number :
SAE1045
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
200KGS
Price :
1.12 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
14 Days
Packaging Details :
Wooden Box
Steel grade :
ss400 a36 s45c sae1045 42CrMo
Alloy or not :
Non-alloy
Technique :
Hot Rolled,Cold Drawn
Type :
Flat Bar
Standard :
ASTM,DIN,AISI
Shape :
flat
Length :
1--12m
Delivery condition :
annealed
Description

Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn

Product Name

 Cold Drawn steel bar

Technique

 Cold Drawn

Type

 Low Carbon Steel, Medium Carbon Steel

Place of Origin

 Tianjin, China(mainland)

Grade

GB

 DIN JIS ASTM/SAE/AISI BS

20#

 C22/CK22 S20C 1020 IC22

45#

 C45/CK45/1.0503 S45C/S48C 1045 060A42/060A47

Q235B

 S235jr SS400 A36 S235jr

Q345B

 SM490 S355JR ------ S355JR

Section Shape

 Round, square, hexagonal, flat, deformed

Surface

 Bright

Specifications

Round Bar

 4mm-80mm

Flat Bar

 Length: 20-150mm
Width: 3-80mm

Square Bar

 4*4mm-80*80mm

Hexagon bar

 4-80mm

Deformed

 Special drawings

Length

 2m, 4m, 5.8m, 6m or as required

delivery condition

 cold drawn , anneal or not

Payment Terms

 T/T, L/C

Package

 Bundled, wooden box for export standard package

Price Terms

 EXW, FOB, CIF,CFR

Delivery Time

 Normally according to the order quantity

Container Size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

45# Cold Drawn SAE 1045 Square Bar 40*40 50*50 60*60mm Chemical Composition

Chemical composition %:
C Si Mn S P Cr Ni Cu
0.4-0.45 0.17-0.37 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25

SAE 1045 Carbon Steel Flat Bar Mechanical Properties

mechanical properties:
Tensile strength σb
(Mpa)		 Yield strength σb
(Mpa)		 Elongation σb
(%)		 reduction of area
ψ (%)		 Hardness
No heat treatment		 Impacting Energy Akv (J) Notched bar impact strength
αkv (J/cm2)
min min min min max min min
540(55) 315(32) 20 45 217HB 63 78(8)

Annealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold DrawnAnnealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold DrawnAnnealed Astm SAE1045 / S45c / CK45 Steel Square Bar Cold Drawn
