S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
Specifications
Brand Name :
BAOSTEEL BENSTEEL HBIS
Model Number :
S350GD galvanized steel coil
Certification :
SGS,BV,ISO
Place of Origin :
China
MOQ :
5 tons
Price :
600 - 1000 USD/Ton
Payment Terms :
L/C, T/T,Western Union
Supply Ability :
3000 TON per month
Delivery Time :
5 days
Packaging Details :
Standard export packing or as per customer’s request.
Products :
S350GD Galvanized steel Coil
Zinc Coating :
Z60-275 g/m2
Coil ID :
508mm / 610mm
Type :
Coil / Strips
Technique :
Hot dipped galvanized
Surface :
regular spangle / zero spangle
Width :
1000mm 1250mm 1500mm
Service :
slit cutting
Coil Weight :
5 - 10 Tons
Loading Port :
Shanghai, China
Description

EN 10346 S350GD +Z275 Galvanized Steel Coil / High Strength Galvanized Steel Coil 0.3 - 3.0mm Thickness

Commodity S350GD Galvanized Steel Coils
Standard JISG3302 /EN10346/ASTMA653
Thickness 0.4-3.0mm
Width 600-1250mm
Zinc Coating Z30-275g/M2
Coil ID 508/ 610mm
Coil Weight Within 8MT
Min Order 5 Tons Per Size
Spangle Regular , Zero Spangle
Surface Chromated,Skin-Passed,Non Skinpassed
Payment Terms T/T Or L/C
Delivery Terms FOB/CFR/CIF
Delivery Time 5 - 12 Days After Received The Deposit Or As Client Requirement
Packing Standard Seaworthy Export Packing

About S350GD Galvanized Steel Coil

S350gd is a grade in the European standard “EN 10346-2009 Continuous Hot-Dip Galvanized Steel Sheet Products”, which is a galvanized steel sheet. S350G is structural steel requiring tensile strength greater than 350MPa, D means galvanized sheet, so s350gd is structural galvanized sheet with yield strength greater than 350MPa

The S350G is available in the following hot dip coatings: S350GD+Z (galvanized), S350GD+ZF (galvanized-iron), S350GD+ZA (galvanized-aluminum), S350GD+AZ (aluminum-zinc), S350GD+AS (galvanized-iron) aluminum silicon).

Features of S350GD Galvanized Steel Coil

S350GD galvanized sheet (coil) has the characteristics of strong coating adhesion, strong erosion resistance, precise control of galvanized layer thickness, high dimensional accuracy, flat profile, good mechanical properties, processing performance and welding performance. They can be used to manufacture interior and exterior panels, structural parts and reinforcements for automobiles.

Percent Chemical Composition Of Steel S350GD: EN 10346-2009

C Si Mn P S
max 0.2 max 0.6 max 1.7 max 0.1 max 0.045

Mechanical Properties Of Steel S350GD (1.0529)

Rm - Tensile strength (MPa) 420
Rp0.2 0.2% proof strength (MPa) 350
A - Min. elongation Lo = 80 mm (%) 16

Equivalent Grade For Steel S350GD (1.0529)

EU European old
EN EN
S350GD FeE350G

Application Industry

Prefabricated steel buildings, industrial and commercial roofing and cladding, agricultural buildings, building accessories, light steel frames, building pipes

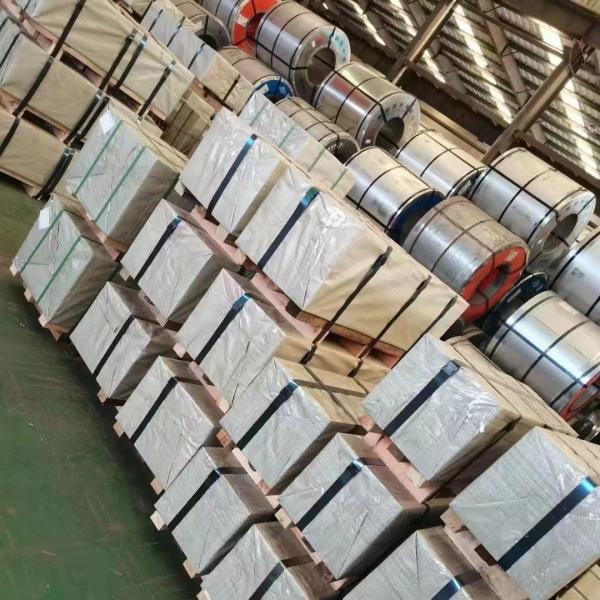

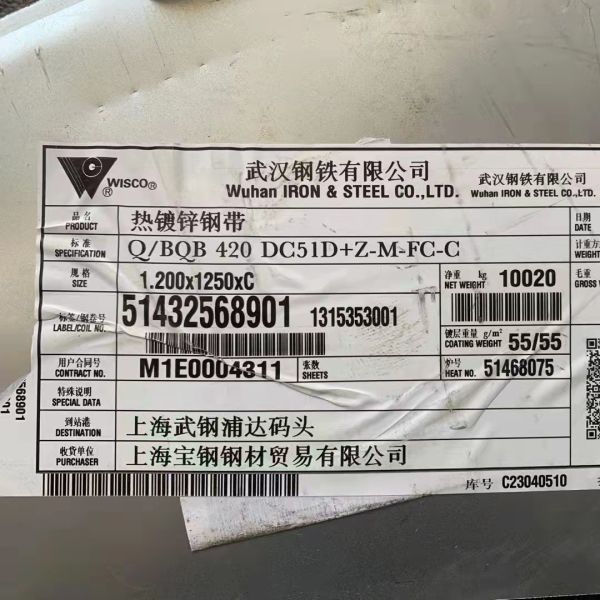

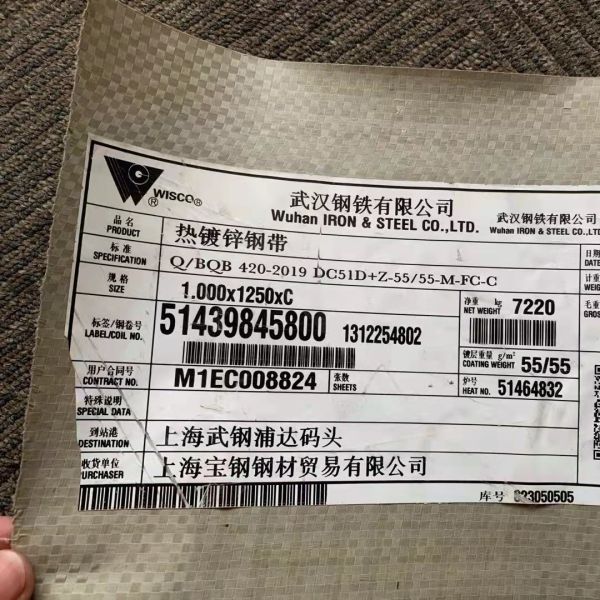

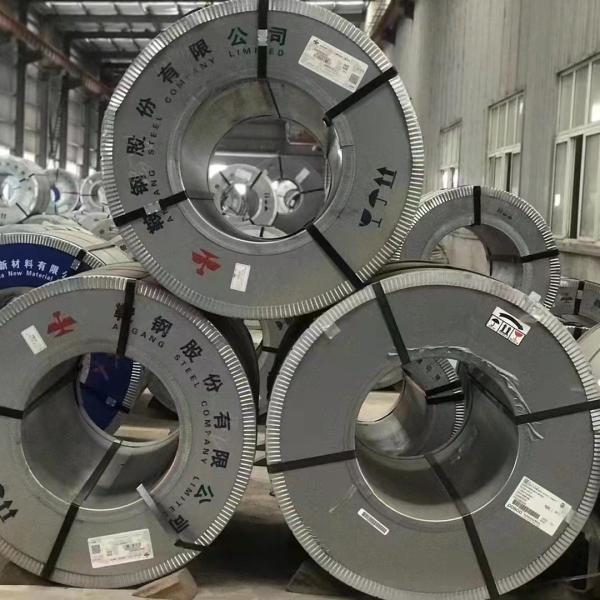

Products Show

S350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm ThicknessS350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm ThicknessS350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm ThicknessS350GD Z275 Galvanized Steel Coil Slit Cutting 3.0mm Thickness
