Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe
Specifications
Brand Name :
MITTEL
Model Number :
S31803 S32205 S32750 S32760 S32101
Certification :
ISO 9001
Place of Origin :
China
MOQ :
500 KGS
Price :
2800-6600 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Ton/month
Delivery Time :
5-12 days
Packaging Details :
good packing for export
Products :
stainless steel pipe
Grade :
S31803 S32205 S32750 S32760 S32101.etc
Standard :
ASTM A789/790M
Diameter :
DN6 - DN400mm
Length :
6m or cutting as request
Surface :
pickled finishing
Description

Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe

Stainless Steel Seamless Pipe is made from round bar. There are many processes to make round bar to seamless pipe. It is different from welded pipe, seamless pipe has no welding seam across the whole section. Hence, it can bear higher pressure than welded pipe.
It is widely used in the food industry, home appliances and consumer electronics, medical equipment, architectural decoration, hardware tools, automotive industry, petrochemical, water treatment plants, aerospace, etc.
Tubinox is able to make stainless steel seamless pipe as per different standards/specifications, like ASTM A312 / ASME SA312, ASTM A213 / ASME SA213, ASTM A269, ASTM A632 / ASME SA632, JIS G3459, JIS G3448, JIS G3463, EN10216-5, EN ISO1127, DIN 17456, DIN 17458, GOST 9941, etc. We can also make as per custom specification.

Type Seamless/Welded
Size Outside diameter: 10mm--630mm(seamless); 10mm-2500mm(welded)
Wall thickness: 0.5mm--50mm
Standard ASTM A312,ASTM A269, ASTM213,EN10216-5 ASTM A789 (ASME SA789), ASTM A790 (ASME SA790) etc.
Grade TP304, 304L, 304H, TP316, 316L, 316H, TP321/321H, TP347/347H, S31803, S32205, S31500, S32304, S32750, S32760 etc.
Surface Pickling,solid solution, polished or as customer's requirement
Packing Bundle, plastic bag, woven bag, wooden case
Delivery stock, 5-30days to port
Payment T/T, D/P, L/C at sight, Usance L/C etc.

Standard Size of Our Stainless Steel Pipe

DN NPS OD ASME B36.19M ASME B36.10M
Sch5S Sch10S Sch40S Sch80S Sch5 Sch10 Sch20 Sch30 Sch40 Sch60 Sch80 Sch120 Sch140 Sch160 STD XS XXS
(Inch) (mm) Wall Thickness (mm) Wall Thickness (mm)
6 1/8 10.3 - 1.24 1.73 2.41 - 1.24 - 1.45 1.73 - 2.41 - - - 1.73 2.41 -
8 1/4 13.7 - 1.65 2.24 3.02 - 1.65 - 1.85 2.24 - 3.02 - - - 2.24 3.02 -
10 3/8 17.1 - 1.65 2.31 3.20 - 1.65 - 1.85 2.31 - 3.20 - - - 2.31 3.20 -
15 1/2 21.3 1.65 2.11 2.77 3.73 1.65 2.11 - 2.41 2.77 - 3.73 - - 4.78 2.77 3.73 7.47
20 3/4 26.7 1.65 2.11 2.87 3.91 1.65 2.11 - 2.41 2.87 - 3.91 - - 5.56 2.87 3.91 7.82
25 1 33.4 1.65 2.77 3.38 4.55 1.65 2.77 - 2.90 3.38 - 4.55 - - 6.35 3.38 4.55 9.09
32 1-1/4 42.2 1.65 2.77 3.56 4.85 1.65 2.77 - 2.97 3.56 - 4.85 - - 6.35 3.56 4.85 9.70
40 1-1/2 48.3 1.65 2.77 3.68 5.08 1.65 2.77 - 3.18 3.68 - 5.08 - - 7.14 3.68 5.08 10.15
50 2 60.3 1.65 2.77 3.91 5.54 1.65 2.77 - 3.18 3.91 - 5.54 - - 8.74 3.91 5.54 11.07
65 2-1/2 73.0 2.11 3.05 5.16 7.01 2.11 3.05 - 4.78 5.16 - 7.01 - - 9.53 5.16 7.01 14.02
80 3 88.9 2.11 3.05 5.49 7.62 2.11 3.05 - 4.78 5.49 - 7.62 - - 11.13 5.49 7.62 15.24
90 3-1/2 101.6 2.11 3.05 5.74 8.08 2.11 3.05 - 4.78 5.74 - 8.08 - - - 5.74 8.08 -
100 4 114.3 2.11 3.05 6.02 8.56 2.11 3.05 - 4.78 6.02 - 8.56 11.13 - 13.49 6.02 8.56 17.12
125 5 141.3 2.77 3.40 6.55 9.53 2.77 3.40 - - 6.55 - 9.53 12.70 - 15.88 6.55 9.53 19.05
150 6 168.3 2.77 3.40 7.11 10.97 2.77 3.40 - - 7.11 - 10.97 14.27 - 18.26 7.11 10.97 21.95
200 8 219.1 2.77 3.76 8.18 12.70 2.77 3.76 6.35 7.04 8.18 10.31 12.70 18.26 20.62 23.01 8.18 12.70 22.23
250 10 273.0 3.40 4.19 9.27 12.70 3.40 4.19 6.35 7.80 9.27 12.70 15.09 21.44 25.40 28.58 9.27 12.70 25.40
300 12 323.8 3.96 4.57 9.53 12.70 3.96 4.57 6.35 8.38 10.31 14.27 17.48 25.40 28.58 33.32 9.53 12.70 25.40
350 14 355.6 3.96 4.78 9.53 12.70 3.96 6.35 7.92 9.53 11.13 15.09 19.05 27.79 31.75 35.71 9.53 12.70 -
400 16 406.4 4.19 4.78 9.53 12.70 4.19 6.35 7.92 9.53 12.70 16.66 21.44 30.96 36.53 40.49 9.53 12.70 -
450 18 457.0 4.19 4.78 9.53 12.70 4.19 6.35 7.92 11.13 14.27 19.05 23.83 34.93 39.67 45.24 9.53 12.70 -
500 20 508.0 4.78 5.54 9.53 12.70 4.78 6.35 9.53 12.70 15.09 20.62 26.19 38.10 44.45 50.01 9.53 12.70 -
550 22 559.0 4.78 5.54 - - 4.78 6.35 9.53 12.70 - 22.23 28.58 41.28 47.63 53.98 9.53 12.70 -
600 24 610.0 5.54 6.35 9.53 12.70 5.54 6.35 9.53 14.27 17.48 24.61 30.96 46.02 52.37 59.54 9.53 12.70 -

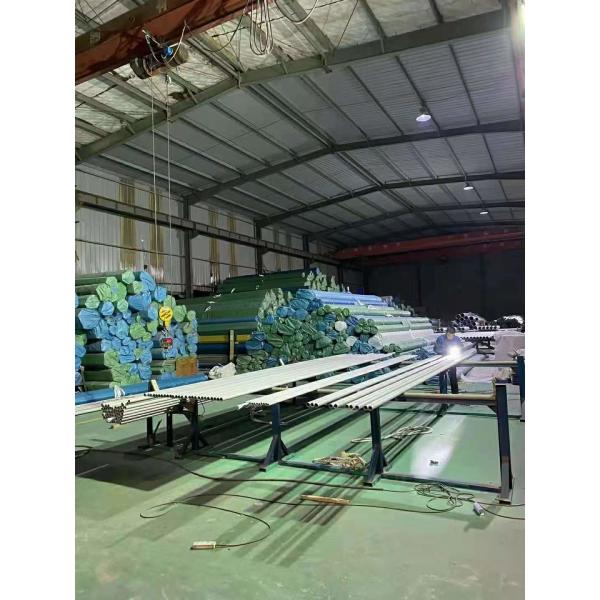

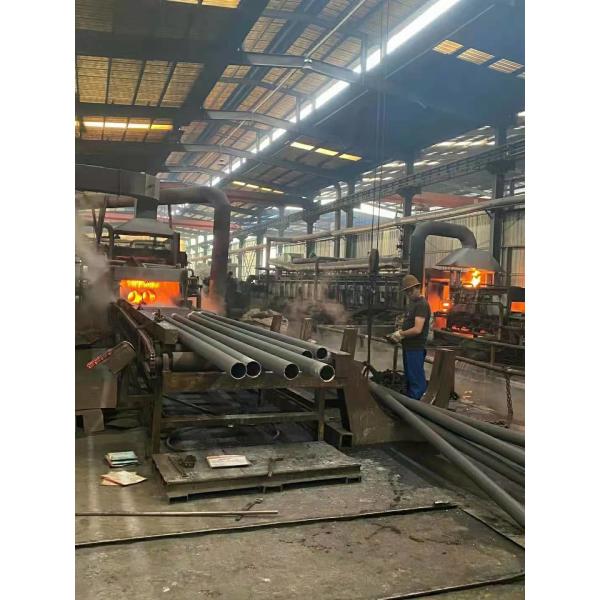

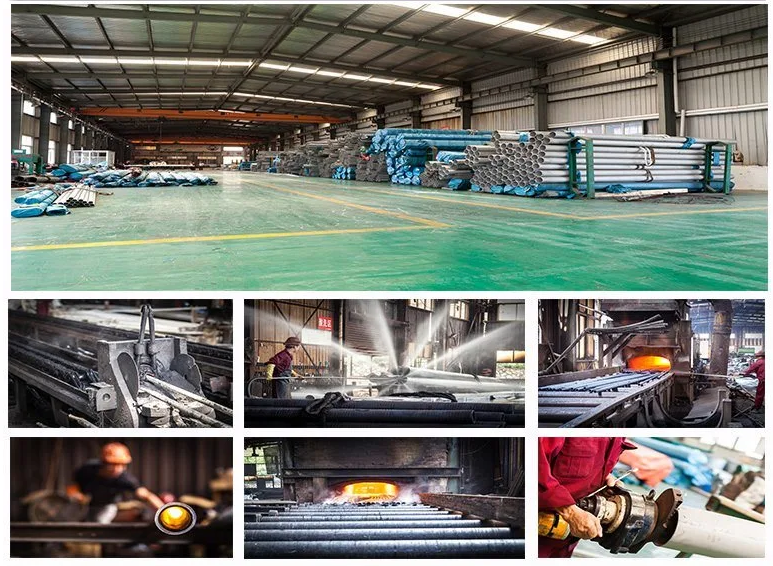

Our Factory Show

Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe

Shipping Informations:

  • 1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

  • 2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.

  • 3. Customers specifying freight forwarders or negotiable shipping methods!

  • 4. Delivery Time: 10-30days after conformed or according to quantity.

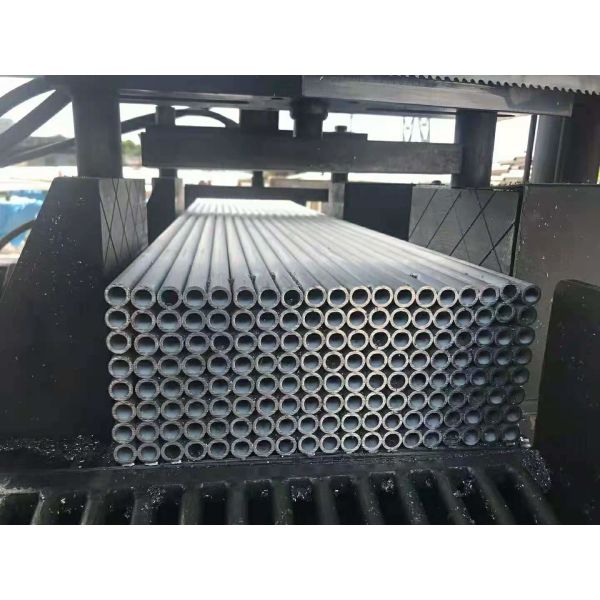

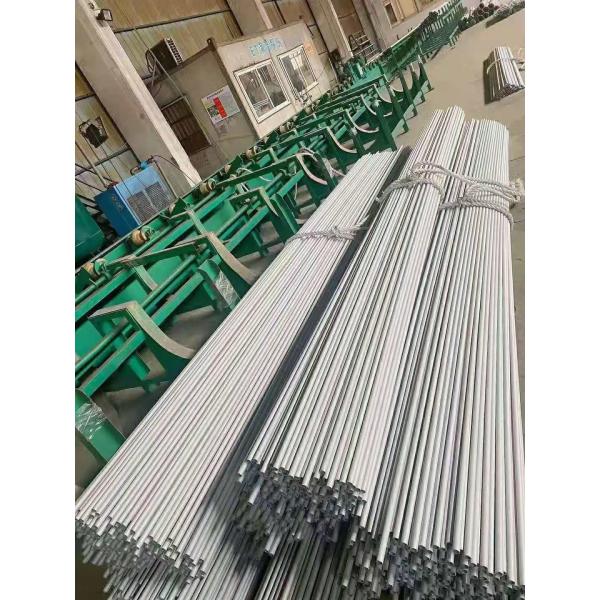

Products Pictures

Grade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel PipeGrade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel PipeGrade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel PipeGrade ASTM A790 S31803 S32205 S32750 S32760 S32101 Duplex Stainless Steel Pipe

Packing
Each tube is wrapped in a plastic sleeve with a cap on the end to ensure the best cleanliness
OEM accepted, besides,the pakage can also be according to your demands.
Shipping
1.Shipping by containers
2.Shipping by bulk ship.
FAQ

Q1. How do you control quality ?

A1: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS

Q2: What is the terms of packing?

A2: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.

Q3:What is your delivery time?

A3: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q4. What are the advantages of your company ?

A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?

A5: Exported to more than 100 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q6. Can you provide sample ?

A6: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
