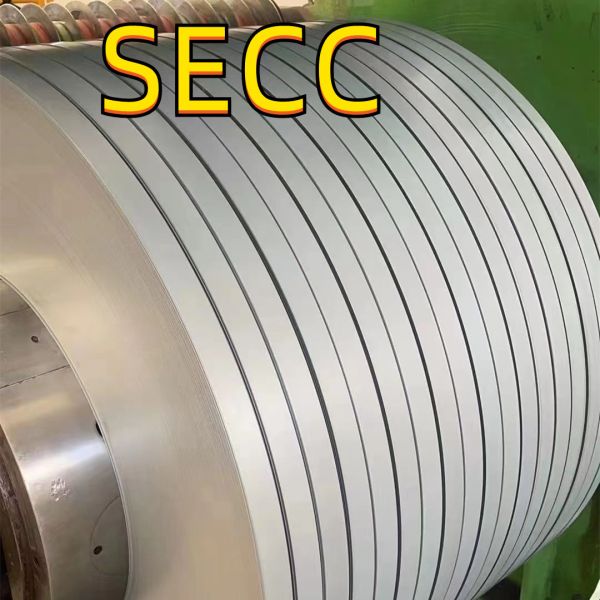

0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
Specifications
Brand Name :
MITTEL TISCO BAO STEEL
Model Number :
SECC
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
300KGS
Price :
0.5 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Pallet
Width :
600mm-1250mm
Standard :
ASTM,AISI
Grade :
SECC
Zinc coating :
30-275g/m2
Application :
roofing,Decor,commercial use
Type :
Steel Coil
Surface treatment :
Coated,Galvanized
Spangle :
Minimized
Surface :
Galvanized Coated,chromated and oiled
Description
Product introduction
Electro galvanizing, also known as cold galvanizing in the industry, is the process of forming uniform, dense and well bonded metal or alloy deposition layer on the surface of products by electrolysis.

Electroplated galvanized steel sheet, produced by electroplating method, has good processability. However, the coating is thinner and its corrosion resistance is not as good as that of hot dip galvanized sheet;

Because zinc is not easy to change in dry air, and it can produce a kind of basic zinc carbonate film in humid environment. This kind of film can protect the internal parts from corrosion damage. Even if the zinc layer is damaged by some factors, the combination of zinc and steel will form a micro battery after a period of time, and the steel matrix will be protected as a cathode. The characteristics of zinc plating are summarized as follows

1. Good corrosion resistance, fine and uniform combination, not easy to be corrosive gas or liquid into the interior.

2. Because the zinc layer is relatively pure, it is not easy to be corroded in acid or alkali environment. Effective protection of steel body for a long time.
product name Galvanized steel sheets/Galvalume steel sheet
Thickness 0.13mm-5.0mm
Width 600mm-1500mm,762mm,914mm,1000mm,1200mm,1219mm,1250mm
zinc coating 40g,60g, 80g, 90,100g, 120g, 140g,180g, 200g, 250g, 275g and so on.
Standard ASTM, AISI, DIN, GB
Material SECC
Spangle zero spangle,regular spangle or normal spangle
surface treatment chromated and oiled, chromated and non-oiled
Packing export standard.
Payment T/T, L/C or DP
min order 25 tons (one 20ft FCL)
More information

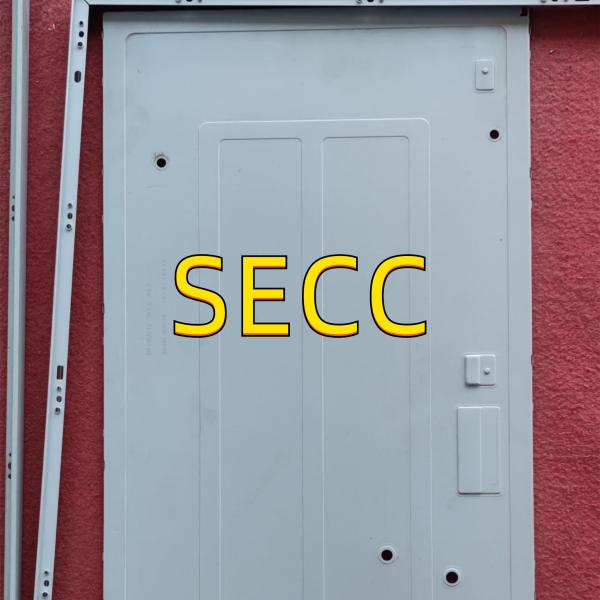

Available range of SECC electro-galvanized steel sheets for appliances:


Item		 Nominal
Thickness 0.3-3.5
Width 800-1830
Length Steel plate 1000-6000
Steel strip Coil inside diameter 508,610

SECC electro-galvanized coating range and recommended nominal coating weight:


Coating from		 Coating type
Pure zinc coating (single-side) g/m² Zinc-nickel alloy coating (single-side) g/m²
Uniform thickness 3~90 10~40
Different thickness 3~90, the maximum difference value between both sides is 40. 10~40, the maximum difference value between both sides is 20.
Single side 10~110 10~40
Note: The weight of 50g/m²of pure zinc coating is equal to about 7.1um, and the weight of 50g/m² of zinc-nickel alloy coating is equal to about 6.8um.

Coating form Coating type
Pure zinc coating (single-side) g/m² Zinc-nickel alloy coating (single-side) g/m²
Uniform thickness 10/10, 20/20, 30/30, 40/40, 50/50, 70/70, 90/90 10/10, 20/20, 30/30, 40/40
Difference thickness 10/30, 20/40, 30/50, 40/60, 50/70, 60/90 10/20, 15/25, 25/30, 30/40
Single side 10/0, 20/0, 30/0, 40/0, 50/0, 60/0, 70/0, 80/0, 90/0, 100/0, 110/0 10, 15, 20, 25, 30, 40

0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll0.4MM Thick Electro Galvanized Steel Coils Sheet With Film SECC Roll
