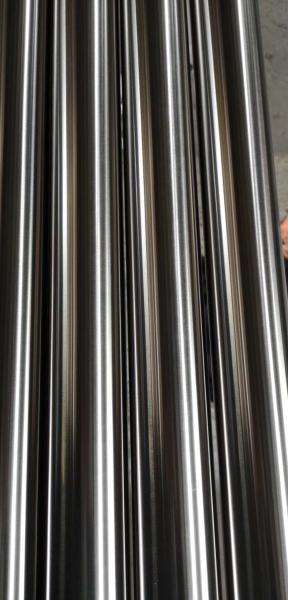

ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
ASTM 304 / 304L Stainless Steel Welded Tube With Bright Mirror Polished Flexible
Specifications
Brand Name :
Mittel
Model Number :
304
Certification :
SGS ISO MTC
Place of Origin :
China
MOQ :
100KGS
Payment Terms :
L/C, T/T
Supply Ability :
80000KGS
Delivery Time :
7 Working Days
Packaging Details :
Wooden Pallet BOX
Price :
1.85 USD/KG
Steel grade :
300 Series
Type :
Welded
Welding line type :
ERW
Standard :
ASTM,AISI,DIN
Application :
Construction,Decoration,Industry
Shape :
Round.square.Rectangle
Surface :
Annealing
Product name :
Stainless Steel Pipe
Thickness :
0.5-25.4mm
Length :
6 Meters or customized
Outer diameter :
6mm-630mm or customized
Technique :
Seamless/Welded
Finish :
Bright,Brush Polish
Price term :
CIF,FOB,CFR,EX-WORK
Trade terms :
FOB CIF CFR CNF EXWORK
Description

DESCRIPTION

The 304 / 304L grade of austenitic chromium-nickel stainless steel tubes and pipes are the most versatile and widely used steel piping products. Type 304 / 304L stainless steel is a very low carbon steel that exhibits excellent corrosion resistance. Also, it offers superior resistance to intergranular corrosion following welding or stress relieving. Besides, the 304 and 304L type grades exhibit good machinability and excellent weld-ability characteristics with or without filler metals.

304 / 304L STAINLESS STEEL TUBE/PIPE PROPERTIES

Below are the properties of 304 / 304L stainless steel pipes offered by Arch City Steel & Alloy, Inc.:

  • Tough metallic properties
  • High corrosion protection
  • High temperature resistance
  • Ability to be sterilized
  • High workability and machinability
  • Easily welded by all commercial processes
  • Resultant weld has good toughness and ductility
  • High annealing range, between 1850° and 2050°F
  • Non-magnetic in the annealed condition
  • Not hardened by heat treatment
  • Hardness and tensile strength can be increased by cold working
  • Cold working may cause slight magnetism
  • Good wall tolerance and straightness tolerance
  • Cost-effective choice for most applications

Applications of 304 / 304L Stainless Steel Pipes/Tubes

304 Stainless Steel Pipe is most suited for applications where superior strength and excellent corrosion resistance is required. 304 / 304L stainless steel seamless pipes are widely accepted in food processing, water treatment, petrochemical, diary, and chemical industries for moving fluids and gases. Welded 304 / 304L stainless steel tube/pipe is ideally used for posts, and poles as well as handrails, in exterior and marine applications. 304 / 304L pipes find extensive use in applications requiring welding, machining, grinding, forming, and polishing.

Because of their durable mill finish and interior welded seam, these pipes are widely used for projects that are exposed to chemical, acidic elements, fresh water, and salt water environments.

COMPOSITION

Typical Chemical Composition % (max values, unless noted)
Weight % Carbon (C) Manganese (Mn) Phosphorus (P) Sulfur (S) Silicon (Si) Chromium (Cr) Nickel (Ni)
304 .08 2.00 .045 .030 1.00 18.0-20.0 8.0-11.0
304L .035 2.00 .045 .030 1.00 18.0-20.0 8.0-13.0

MECHANICAL PROPERTIES

Typical Room Temperature Mechanical Properties
Type UTS KSI (MPA) 0.2% YS KSI (MPA) Elongation% in 2ʺ(50.8 mm) HardnessRockwell
304 90 (621) 42 (290) 55 B82
304L 85 (586) 35 (241) 55 B80
