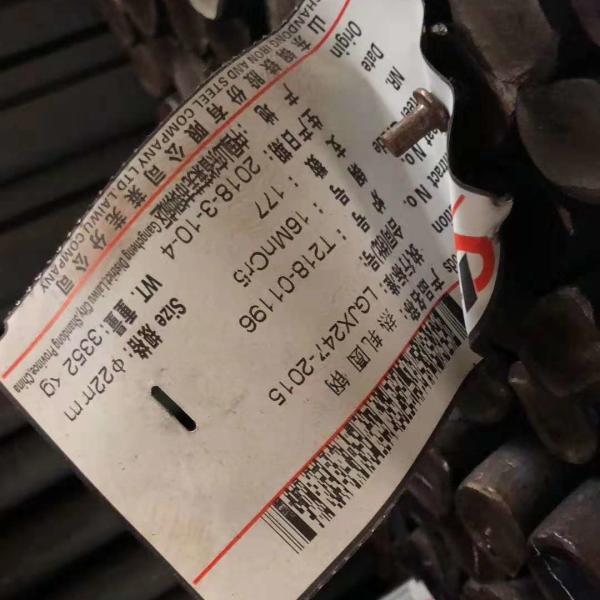

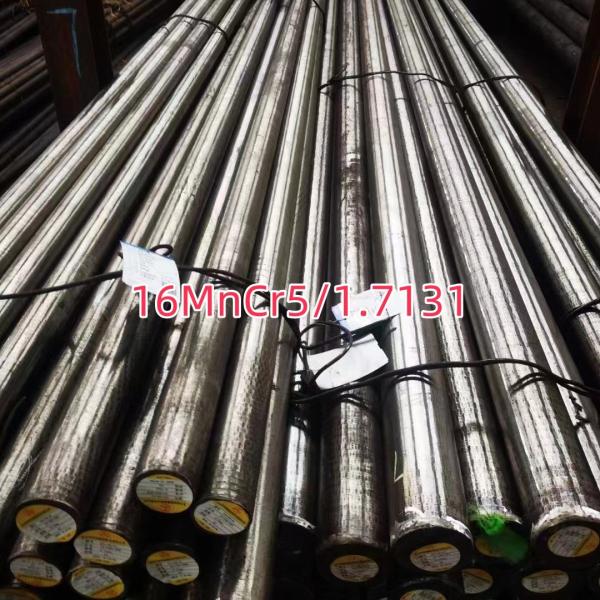

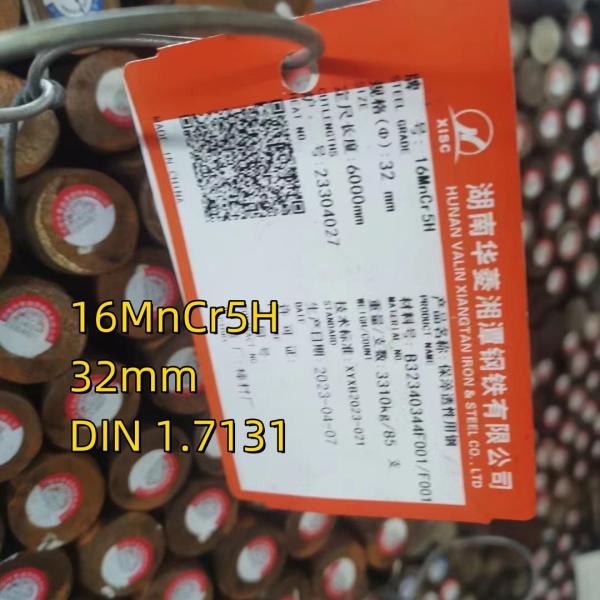

DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
Specifications
Brand Name :
Lai Steel
Model Number :
16MnCr5
Certification :
SGS ISO
Place of Origin :
China
MOQ :
500KGS
Price :
1.25USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7-10 Days
Packaging Details :
Export Packing
OD :
6-400MM
Length :
5800 6000mm 9000mm
Surface :
Black
Standard :
GB ASTM
DIN Standard :
EN 10084 : 2008
Condition :
End quenchh test Quenching
Description

16MnCr5,16MnCr5 Chemical composition,16MnCr5 steel grades,if you need EN 10084 : 2008 Case hardening steels. Technical delivery conditions ,please contact us.

Grade : 16MnCr5
Number: 1.7131
Standard: EN 10084 : 2008 Case hardening steels. Technical delivery conditions
EN 10132 - 2 : 2000 Cold rolled narrow steel strip for heat treatment. Technical delivery conditions. Case hardening steels
Classification: Case hardening steels
Equivalent grades: Go here

16MnCr5 EN 10084-1998, Number: 1.7131 Comparison of steel grades
JUS Č.4320
DIN 16MnCr 5; ZF 6
BS 590M17,
GOST 18HG
AISI SAE 5115, SAE 51204
UNI 16MnCr5
NF 16MC5

Chemical composition (cast analysis)

Chemical elements C Si
max.		 Mn P max. S Cr
%, by mass 0,14-0,19 0,40 1,00-1,30 0,035 ≤ 0,035 0,80 – 1,10
Permissible deviation ± 0,02 + 0,03 ± 0,05 + 0,005 + 0,005 ± 0,05

Hardness limits for steel

Hardness HRC at a distance from quenched end of test piece (in milimetres) of
mm 1,5 3 5 7 9 11 13 15 20 25 30 35 40 45 50
+H max. 47 46 44 41 39 37 35 33 31 30 29 28 27 - -
min. 39 36 31 28 24 21 - - - - - - - - -
+HH max. 47 46 44 41 39 37 35 33 31 30 29 28 27 - -
min. 42 39 35 32 29 26 24 22 20 - - - - - -
+HL max. 44 43 40 37 34 32 30 28 26 25 24 23 22 - -
min. 39 36 31 28 24 21 - - - - - - - - -


Hardness requirements for products delivered in the conditions ’’treated to improve shearabilita’’ (+S), ’’anneled to maximum hardness requirements’’ (+A), ’’treated to hardness range’’ (+TH) or ’’treated to ferrite-pearlite structure and hardness range’’ (+FP)

Brinell hardness in the condition
+S max. +A max. +TH +FP
min. max. min. max.
* 207 156 207 140 187


Non-metallic inclusions Requirements for microscopic degree of purity when tested in accordance with DIN 50 602 (method K) (valid for oxidic non-metallic inclusions)

D (mm) Bars Diameter d (mm) K Total characteristic value K (oxides) for the individual cast
140 < d 200 K 4 ≤ 50
100 < d ≤ 140 K 4 ≤ 45
70 < d ≤ 100 K 4 ≤ 40
35 < d ≤ 70 K 4 ≤ 35
17 < d ≤ 35 K 3 ≤ 40
8 < d ≤ 17 K 3 ≤ 30
d ≤ 8 K 2≤ 35

Conditions for heat treating test bars and treatment of the steels

End quenchh test Quenching, 0C Carbunnzing temperature, 0C Core-hardening temperature, 0C Case-hardening temperature, 0C Tempering, 0C
870 880 to 980 860 to 900 780 to 820 150 to 200

DIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 EquivalentDIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 EquivalentDIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 EquivalentDIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 EquivalentDIN 1.7131 32mm Bearing Steel Bar 16mncr5H Steel high Tensile Strength SAE 51204 Equivalent
