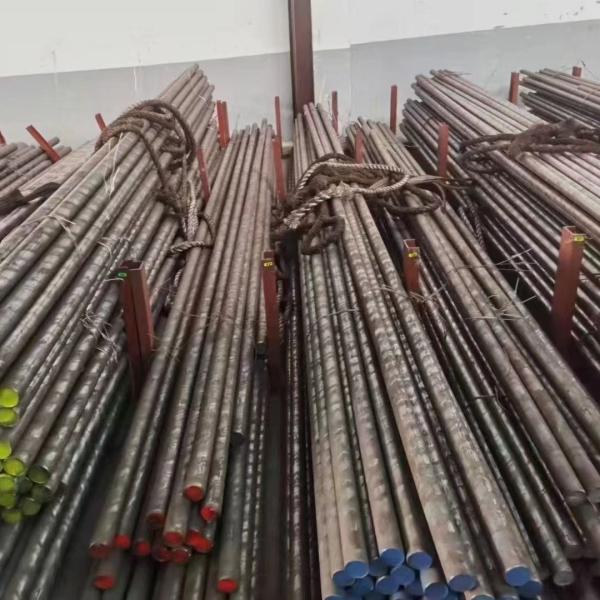

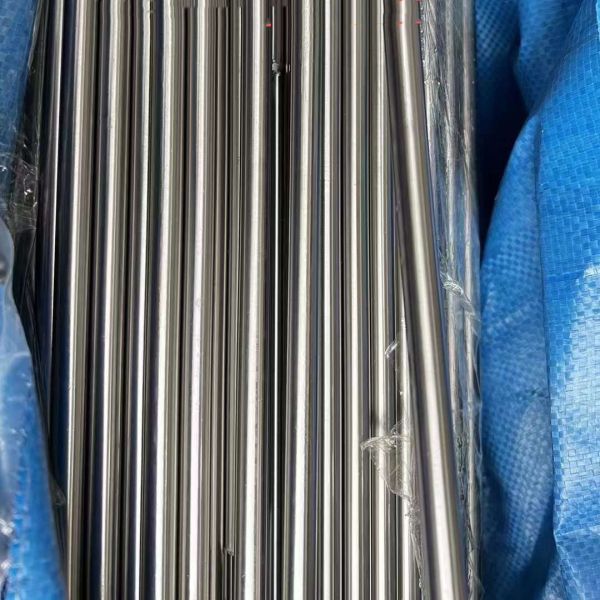

Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02
Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02
Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02
Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02
Specifications
Brand Name :
MITTEL TISCO BAO STEEL
Model Number :
431 14Cr17Ni2
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
300KGS
Price :
2.75 USD/KG
Payment Terms :
L/C, T/T, D/P
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Wooden Pallet
Type :
Round
Application :
Construction,decoration,Industry,Mechineal,shipbuilding
Standard :
DIN,ASTM,AISI,JIS
Grade :
400 Series
Shape :
Round
Dimensions :
3mm-800mm
Surface :
bright,Polished,black
Technique :
Cold drawn&hot rolled
Packing :
Standard Seaworthy Package
Price term :
CIF CFR FOB Ex-Work
Description

431 Stainless Steel

Industry Names

  • UNS S43100
  • 431 Stainless

Material

  • Stainless Steel

Specifications

  • AMS 5628
  • ASTM A276 (Bar)
  • ASTM A479 (Bar)
  • MIL-S-18732
  • UNS S43100

Applications

  • Bolts
  • Fasteners
  • Marine Fixtures
  • Pump Shafts

Features

  • Corrosion Resistant in a Variety of Marine and Chemical Environments
  • Excellent Corrosion Resistance

431 Stainless Steel Round Bar Chemical Composition

Min. %
Max %
Carbon
0.12
0.20
Silicon
0.00
1.00
Manganese
0.00
1.00
Nickel
1.25
3.00
Chromium
15.00
18.00
Phosphorous
0.00
0.04
Sulphur
0.00
0.03

431 Stainless Steel Round Bar Physical Properties

DENSITY (G/CM 3)
8.0
DENSITY (LB/IN 3)
0.289
MELTING POINT (°C)
1400 – 1455
MELTING POINT (°F)
2550 – 2650

431 Stainless Steel Round Bar Mechanical Properties

Tensile Strength : Unit – ksi (MPa) , Minimum
Yeild Strength : 0.2 % Offset , Unit – ksi (MPa) , Minimum
Elongation : in 2″, Unit : % , Minimum
Hardness : Rockwell , Maximum

Condition
Annealed
*T
Tensile Strength Mpa
Min
850
Max
1000
0.2% Yield Strength Mpa
Min
635
Elongation on 5.65√S0 %
Min
11
Izod Impact Valua J mm
Min
63 34
63 20
Hardness HB
Min
248
Max
277
302
*Material stocked generally in condition T.
NB. Check the mill certificate if critical for end use.
