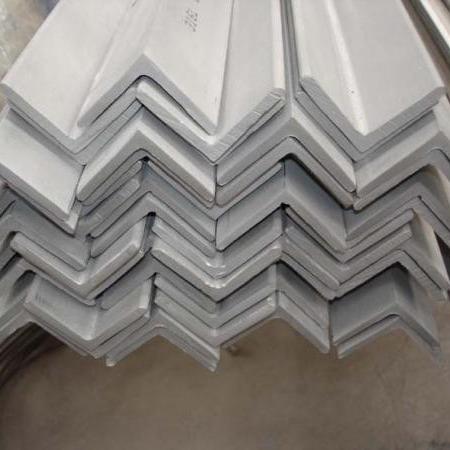

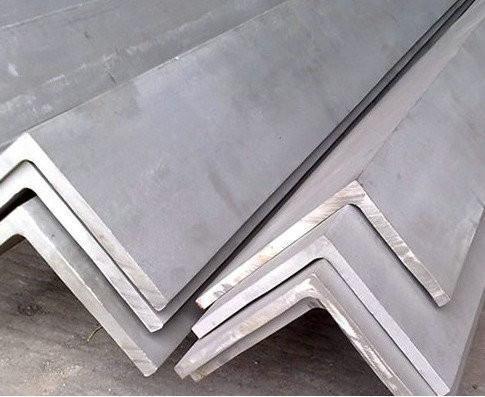

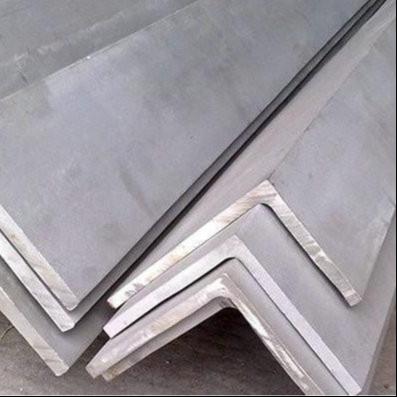

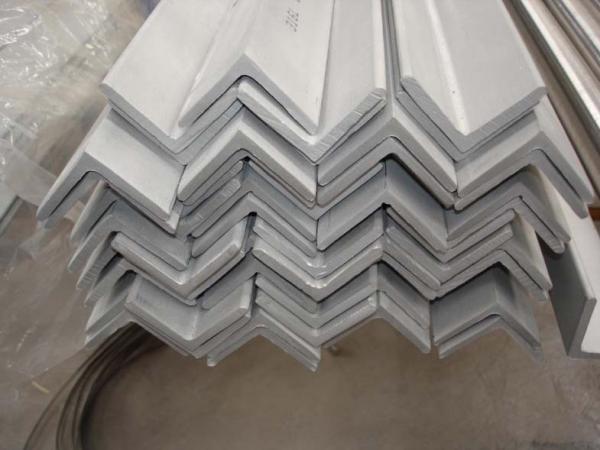

SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm
Specifications
Brand Name :
BAO STEEL, TISCO, LISCO
Model Number :
201, 202, 304, 316, 316L, 321
Certification :
CE, ISO, BV, SGS
Place of Origin :
Wuxi city, Jiangsu province
MOQ :
5 tons
Price :
USD2000-USD3000per ton
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000 tons per month
Delivery Time :
5 days
Packaging Details :
Standard seaworthy packaging by protect film + plywood case.
Commodity :
Stainless Steel Angle Bar
Thickness :
1mm-15mm
Length :
1000mm-6000mm
Standard :
ASTM, AISI, JIS, DIN, EN, GB
Type :
Angle
Application :
chemical, shipping
Special Use :
Valve Steels
Stock :
always in good stock
Description

SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm

Product Description

Products(free samples are avaiable)

1) Grade: 200 series, 300 series, 400 series Stainless Steel Angle Bar
2) Standard: AISI, ASTM, DIN, GB, JIS, SUS
3) Specification:2.5#---20#

4) Length: 6 meters or as required

5)Technique: Hot rolled/annealed/pickled
6) Certification: ISO9001: 2008 / SGS
7) Application: widely used in chemical, shipping, architecture, machine-made, household products industry, etc. SUS/AISI/ASTM

8) Delivery: Within 30 days upon receipt of 30% deposit
9) Payment: T/T or L/C at sight
10) Trade Terms: FOB/CIF/C&F

Chemical Elements of SUS/AISI/ASTM 304 Stainless Steel Angle Bar

Material C %(≤) Mn % (≤) P % (≤) S % (≤) Si % (≤) Cr% (≤) Ni% (≤) Mo%
304L 0.03 2 0.045 0.03 1 18.00-20.00 8.00-12.00 -

Tolerance of Different Grades of SUS/AISI/ASTM 304 Stainless Steel Angle Bar

Grade Specification Side Allowble Deviation Thickness
3 4 5 6 7 8 9 10 11 12
Tickness Allowble Deviation
2.5# 25×25 ±1.5 ±0.5 ±0.5 ±0.5 / / / / / / /
3# 30×30 ±2.0 ±0.5 ±0.5 ±0.5 ±0.5 / / / / / /
4# 40×40 ±2.0 ±0.6 ±0.6 ±0.6 ±0.6 ±0.6 / / / / /
5# 50×50 ±2.0 ±0.6 ±0.6 ±0.6 ±0.6 ±0.6 / / / / /
6# 60×60 ±3.0 / ±0.6 ±0.6 ±0.6 ±0.6 ±0.6 / / / /
6.5# 65×65 ±3.0 / / ±0.6 ±0.6 ±0.7 ±0.7 ±0.7 / / /
7# 70×70 ±3.0 / / ±0.7 ±0.7 ±0.7 ±0.7 ±0.7 ±0.7 / /
7.5# 75×75 ±3.0 / / / ±0.7 ±0.7 ±0.7 ±0.7 ±0.7 / /
8# 80×80 ±3.0 / / / ±0.7 ±0.7 ±0.7 ±0.7 ±0.7 / /
9# 90×90 ±3.0 / / / / ±0.7 ±0.7 ±0.7 ±0.8 ±0.8 ±0.8
10# 100×100 ±4.0 / / / / ±0.7 ±0.7 ±0.7 ±0.8 ±0.8 ±0.8

SUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mmSUS316L / AISI316L / ASTM 316L Stainless Steel Equal Angle Bar Length 50*50*5mm - 6000mm

Packaging

Packing details 800 Ton/Tons per Day
Export standard package :bundled wooden box or be required
Port:shanghai
Delivery Time 15 working days
Payment Terms L/C ,T/T , western union , paypal , alipay
Shipping DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable

Chemical Composition

Material C Si Mn P S Cr Ni
201 ≤0.12 ≤0.75 9.5-12.5 ≤0.045 ≤0.03 13-16 0.8-1.5
304 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤0.03 18-19 8-10
316 ≤0.08 ≤1.00 ≤2.0 ≤0.035 ≤0.03 10-14 16.0-18.5
316L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 16-18 10-14
430 ≤0.12 ≤0.75 ≤2.0 ≤0.04 ≤0.03 16-18 ≤0.6

Features

Terms:

1) Loading Port: Shanghai

2) Delivery term: FOB,CFR, CIF

3) Delivery lead time: 15 working days after received deposit.

4) Payment term:30% by T/T as deposit., balance will be paid by T/T ,

5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable

FAQ

Q: What the main products you can supply?
A: We are a professional and famous factory in China. The main products of our company include Stainless Steel Sheet/Coils/Tubes/Bars/Corrugated Sheets, Carbon Steel Sheets/Coils/Tubes, Galvanized Sheets/Coils/Tubes/Bars/Corrugated Sheets, PPGI/PPGL Sheets, PPGI/PPGL Coils, PPGI/PPGL Corrugated Sheets, Ductile Iron Pipe, Copper, Aluminum, etc.

Q: What is your payment terms?
A:Commonly two payment term for new customers
1) 30%T/T as deposit, 70% balance against B/L copy.
2) 100% Irrevocable L/C at sight.
If you need other terms, please feel free to contact us. We will try our best.
Q: How about the samples? Is it free or extra fees?
A: Usually, we would like to supply the samples before order. If the samples are in stock, it will be free. If the samples need to be produced, we will charge some reasonable cost. But this amount will be deducted from your first order invoice.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so common products size orders just need 5 days from stocks. If there are special size order, it will cost 7-15 days.
