Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
Specifications
Brand Name :
JIUFU
Model Number :
JF-11004
Place of Origin :
ANPING,CHINA
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per day
Delivery Time :
7-20 days
Packaging Details :
Wooden Box or Pallet
Certification :
ISO
Product Name :
Grease Filters
Technique :
knitted wire mesh
hole size :
2x3mm/4x5mm/12x6mm
Material :
Stainless steel wire
Filter Rating :
3-5um
Wire Diameter :
0.20mm-0.25mm
wIdth range :
40mm-1400mm
Hole Shape :
15cm
Thickness :
50cm
Frame Material :
Stainless Steel, Iron,Aluminum
Description

Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust

Knitted Wire Mesh Grease Filters:

Knitted mesh filter is composed of knitted wire mesh, wire mesh grill and frame. we also call it grease filters. it is widely used in cooking, chemical, petroleum or other fields for oil and gas, liquid and gas filtering. Knitted Wire Mesh Grease Filters with large surface area can supply optimum performance and low resistance. Its filtering efficiency can reach up to 98%, which is not matched by other types of filters.

Different supporting grilles.

1. Welded wire mesh grilles.

2. Crimped wire mesh grilles.

3. Expanded metal mesh grilles.

Different Frames:

1. Stainless Steel

2. Aluminum

3. Metal

Mesh Grease Filter Specification
Code number Actual size (W × H) (mm) Airflow rate (m3/s)
MGF-01 242 × 242 0.15
MGF-02 289 × 289 0.21
MGF-03 293 × 293 0.19
MGF-04 369 × 369 0.34
MGF-05 394 × 394 0.39
MGF-06 395 × 394 0.40
MGF-07 445 × 216 0.24
MGF-08 445 × 445 0.50
MGF-09 495 × 241 0.29
MGF-10 495 × 394 0.46
MGF-11 495 × 495 0.58
MGF-12 594 × 594 0.91
MGF-13 598 × 598 0.85
MGF-14 620 × 394 0.30
MGF-15 620 × 495 0.77

Knitted mesh filter Applications

Knitted mesh filter is widely used in industrial fields for gas and liquid or gas and oil separating and filtering. Such as chemical, petroleum, pharmacy, metallurgy, cooking.

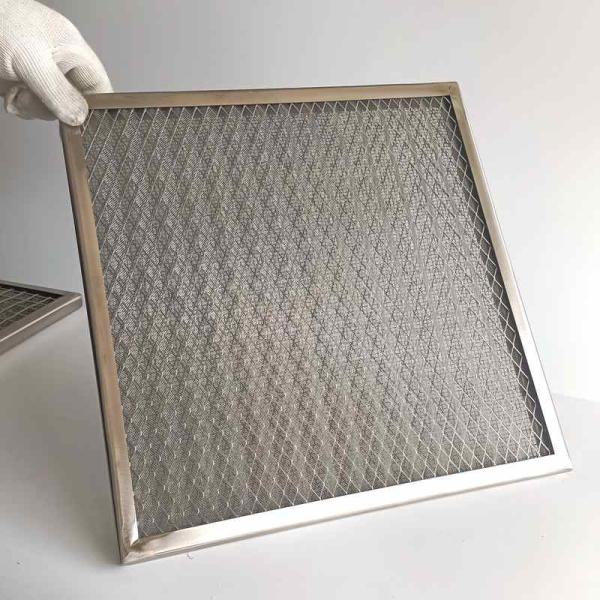

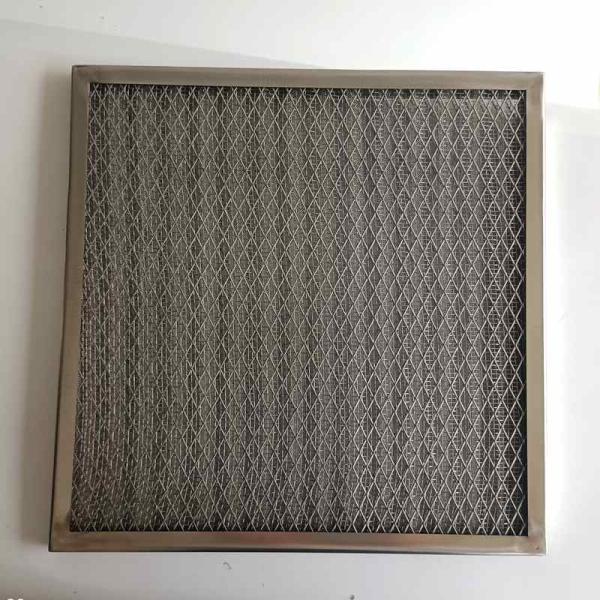

Knitted Wire Mesh Grease Filters Pictures:
Construct:
Stainless Steel Frame + Welding Wire Mesh + Knitted Wire Mesh.
Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
Square Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti RustSquare Aluminum Frame 3-5um Mesh Demister 50cm Thickness Anti Rust
