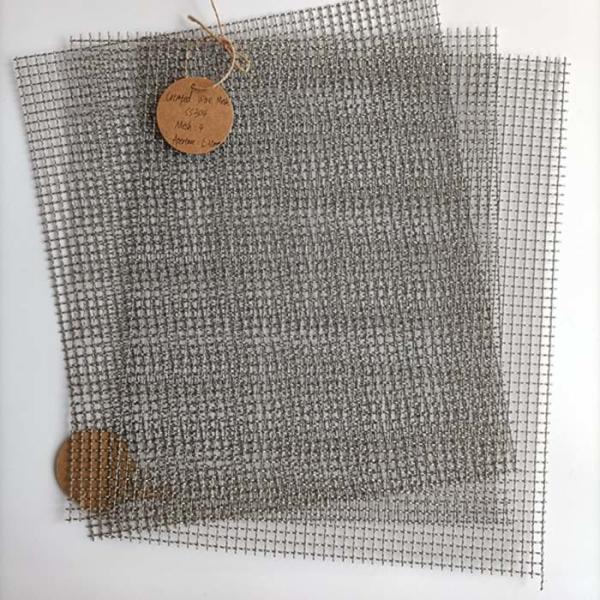

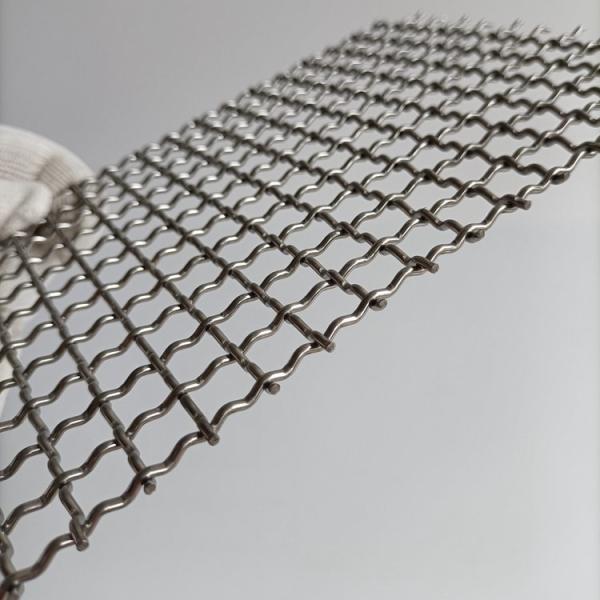

Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance
Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance
Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance
Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance
Specifications
Brand Name :
JIUFU
Model Number :
JF-12004
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
10 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Wooden Box or Pallet
Product Name :
Ginned Mesh
Material :
iron, black steel, stainless steel
Weave Type :
intermediate crimped
Wire Diameter :
0.5mm-22mm
Aperture :
0.7mm-40mm
Mesh Count :
1mesh-10mesh
Length :
30m
Application :
Vibrating Screen
Color :
Silver, Black
Feature :
strong impact resistance
Description

Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance

Crimped wire mesh, also known as woven wire mesh, is made of metal wires of various materials woven by a ginning loom.


Crimped Mesh Varieties: Galvanized Crimped Mesh, White Steel Crimped Mesh, Black Steel Crimped Mesh, Stainless Steel Crimped Mesh, Mine Screen Crimped Mesh, Pig Crimped Mesh, Granary Crimped Mesh, Decorative Crimped Mesh, Pimple Crimped Mesh, Edge Crimped Crimped Mesh, Crimped Mesh Sheet, Copper Clad Steel Crimped Mesh, Steel Strand Crimped Mesh, Heavy Duty Crimped Mesh, BBQ Crimped Mesh, Barbed Wire Crimped Mesh, Copper Clad Steel Crimped Mesh Mesh, lead wire crimped mesh, etc.

Crimped mesh weaving methods: whole weaving crimping, single-sided crimping, inter-crimping, and crimping locks.


Intermediate Crimped Wire Mesh Specification:

Intermediate Crimped Wire Mesh
Wire Diameter (mm) Hole Size (mm) Weight (kg/sqm)
0.4 3 0.5
0.5 3 1
0.6 3 1.25
0.6 4 0.8
0.67 4 1
0.75 4 1.35
0.6 5 0.8
0.7 5 1
0.85 5 1.5
0.45 6 0.35
0.58 6 0.6
0.65 6 0.8
0.75 6 1
0.85 6 1.3
0.9 6 1.5
0.98 6 1.7
0.78 8 0.8
0.9 8 1
1 8 1.35
1.14 8 1.7
1.24 8 2
1.38 8 2.5
1 10 1.1
1.13 10 1.35
1.2 10 1.5
1.25 10 1.7
1.35 10 2
1.5 10 2.5
1.2 12 1.35
1.25 12 1.5
1.35 12 1.7
1.45 12 2
1.6 12 2.5
1.2 15 1.1
1.35 15 1.35
1.4 15 1.5
1.5 15 1.7

Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance

Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance

Vibrating Screen Intermediate Crimped Wire Mesh 30m Length Impact Resistance

Our Advantage

1. our factory have 30-40 set machines to produce the stainless steel window mesh.

2. our factory have 2 set equiments to test the product quality.

3. our factory have 1 million USD amount product stock.

4. our factory cooperate with DHL, FEDEX, UPS, TNT, etc international express company.
