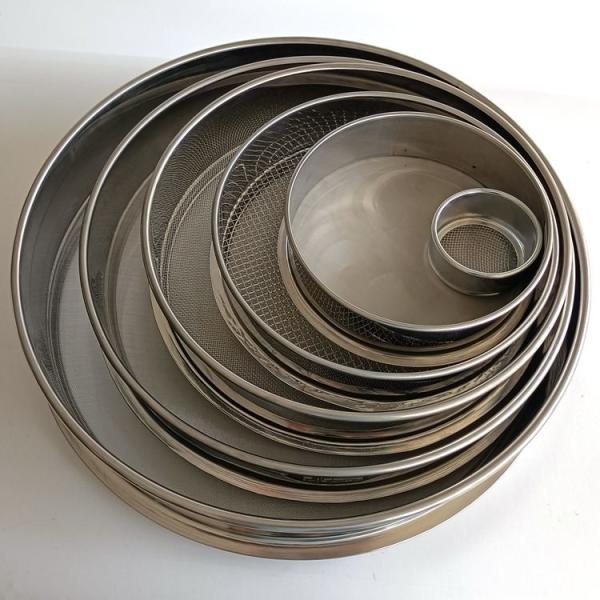

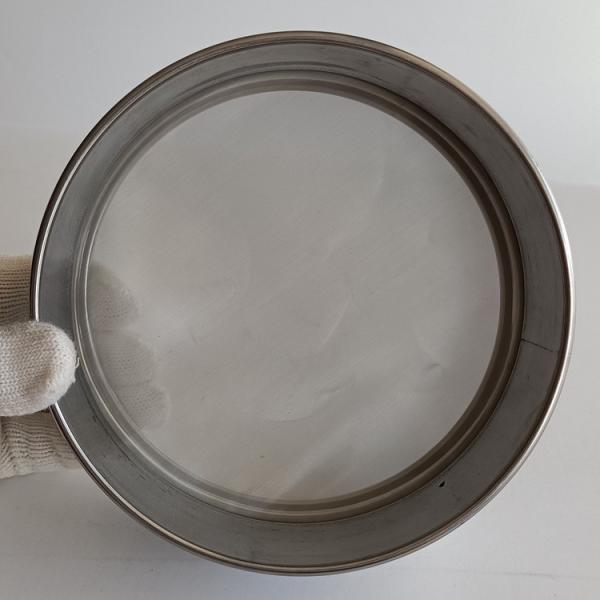

200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration
200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration
200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration
200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration
Specifications
Brand Name :
JIUFU
Model Number :
JF-30013
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 pc
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per day
Delivery Time :
7-20 days
Packaging Details :
Carton + Wooden Box / Pallets
Product Name :
Standard Sieve
Technique :
machine stamped
Frame Material :
stainless steel, iron
Mesh Material :
stainless steel
Mesh Type :
Perforated sheet, woven mesh, crimped mesh
Hole Shape :
Round, square
Diameter :
100mm, 150mm, 200mm, 250mm, 300mm, 350mm
Frame Layer :
double layer
Feature :
Precision Filtration
Application :
filter
Description

200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration

The test sieve is a tool for particle size classification and particle size detection of material particles. It is a sieve that is inspected, authenticated, and deemed to be in compliance with the contract by a designated agency. This is an important sign that it is different from ordinary sieves.

The relationship between mesh size and particle size


The larger the mesh number, the finer the material particle size; the smaller the mesh number, the larger the material particle size.


The sieving particle size is the size of the sieve holes that the particles can pass through the screen. It is expressed by the number of sieve holes in a 1-inch (25.4mm) wide screen, so it is called the mesh number.

Hole Size And Mesh Number Correspondence Table Of Test Sieve

Mesh Number Hole Size (mm) Mesh Number Hole Size (mm) Mesh Number Hole Size (mm)
2 12.5 45 0.4 220 0.065
3 8 50 0.355 240 0.063
4 6 55 0.315 250 0.061
5 5 60 0.28 280 0.055
6 4 65 0.25 300 0.050
8 3 70 0.224 320 0.045
10 2 75 0.2 325 0.043
12 1.6 80 0.18 340 0.041
14 1.43 90 0.16 360 0.040
16 1.25 100 0.154 400 0.0385
18 1.12 110 0.15 500 0.0308
20 1 120 0.125 600 0.026
24 0.8 130 0.112 800 0.022
26 0.71 140 0.105 900 0.020
28 0.68 150 0.100 1000 0.015
30 0.6 160 0.096 1800 0.010
32 0.58 180 0.090 2000 0.008
35 0.50 190 0.080 2300 0.005
40 0.45 200 0.074 2800 0.003

200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration

200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration

200mm 250mm Fine Wire Mesh Sieve Cement Sieve Precision Filtration
