16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen
16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen
16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen
16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen
Specifications
Brand Name :
JIUFU
Model Number :
JF-50021
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
30 Square Meter
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Square Meter per Day
Delivery Time :
7-20 days
Packaging Details :
Waterproof Paper / Bubble Wrap / Carton + Wooden Box / Pallets
Product Name :
Stainless Steel Window Screen
Material :
316 316L
Wire Diameter :
0.15mm-0.4mm
Mesh Count :
16-28 mesh
Surface Treatment :
powder coated
Color :
Silver
Key Feature :
corrosion-resistant
Application :
Anti Mosquitoes
Weave type :
Plain Weave
Length :
30m
Description

16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen

The main difference is the C content. The C content of 316L cannot exceed 0.03%.

316 and 316L Stainless Steel Window Screen Details:

1. The molybdenum content in 316L stainless steel is slightly higher than that in 316 stainless steel.

2. The upper limit of the C content of 316 is 0.08%, while the upper limit of the C content of 316L is 0.03%. The higher the C content, the easier it is to cause intergranular corrosion.

3. The lower limits of tensile and yield strength of 316 are 515 and 205 MPa, respectively, and the lower limits of tensile and yield strength of 316L are 485 and 170 MPa, respectively.

4. Heat resistance. In the range of 800-1575 degrees, it is best not to use 316 stainless steel continuously, but when 316 stainless steel is used continuously outside this temperature range, the stainless steel has good heat resistance. The carbide precipitation resistance of 316L stainless steel is better than that of 316 stainless steel.

5. Heat treatment. Annealed in the temperature range of 1850-2050 degrees, then rapidly annealed, then rapidly cooled. 316 stainless steel cannot be hardened by overheating.

6. Welding. 316 stainless steel has good weldability and can be welded by all standard welding methods. In order to obtain the best corrosion resistance, the welded section of 316 stainless steel needs to be post-weld annealed. Post weld annealing is not required if 316L stainless steel is used.

Stainless Steel Window Screen Specification

Galvanized Window Screen Stainless Steel Window Screen Aluminum Window Screen
Mesh Count Wire Diameter (mm) Mesh Count Wire Diameter (mm) Mesh Count Wire Diameter (mm)
12 0.25 12 0.30 14 0.25
12 0.23 12 0.25 14 0.23
14 0.25 14 0.25 14 0.22
14 0.23 14 0.23 16 0.25
14 0.21 14 0.21 16 0.23
16 0.25 16 0.25 16 0.21
16 0.23 16 0.23 18/16 0.25
16 0.21 16 0.21 18/16 0.23
18 0.25 18 0.25 18/16 0.21
18 0.23 18 0.23 20 0.21
18 0.21 18 0.21 20 0.19
18 0.19 18 0.19 -
22 0.23 22 0.23 -
22 0.21 22 0.21 -
22 0.19 22 0.19 -
22 0.17 22 0.17 -
24 0.21 24 0.21 -
24 0.19 24 0.19 -
24 0.17 24 0.17 -
Width: 0.6m-1.52m

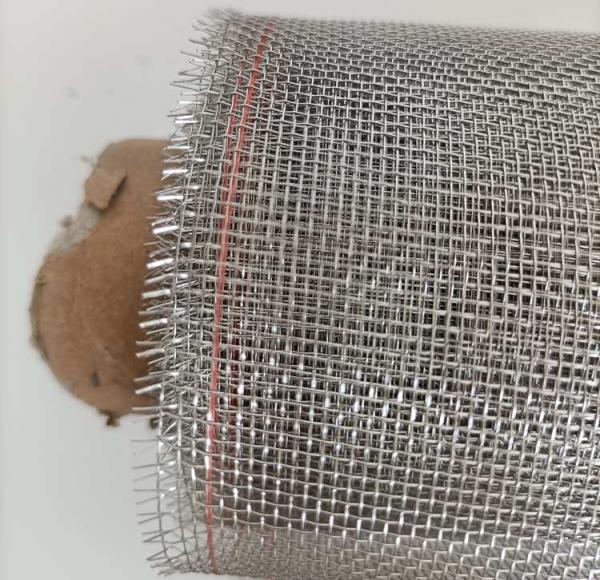

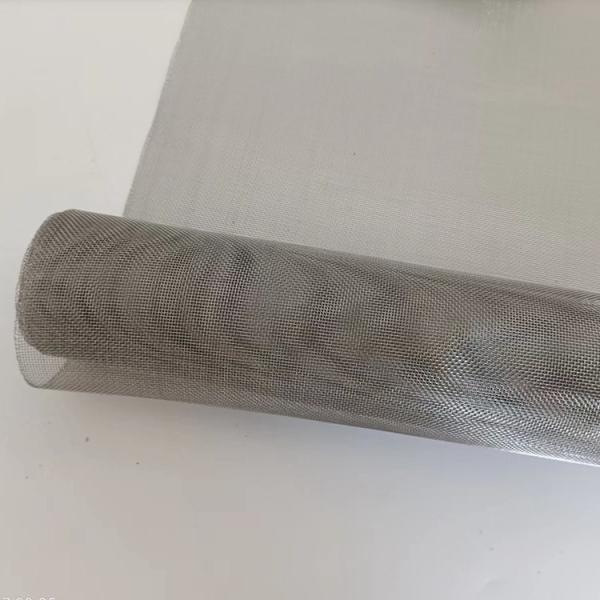

SS316L Stainless Steel Window Screen:

16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen

16 Mesh 316 316L Stainless Steel Window Screen Roll Paw Proof Fly Screen
