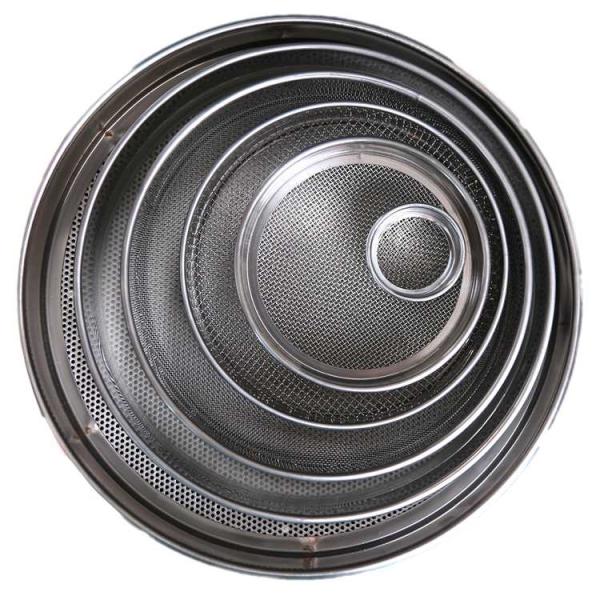

100mm 150mm Perforated Sieving Screen Mesh Filter Sieve
100mm 150mm Perforated Sieving Screen Mesh Filter Sieve
100mm 150mm Perforated Sieving Screen Mesh Filter Sieve
100mm 150mm Perforated Sieving Screen Mesh Filter Sieve
Specifications
Brand Name :
JIUFU
Model Number :
JF-30012
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
1 pc
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per day
Delivery Time :
7-20 days
Packaging Details :
Carton + Wooden Box / Pallets
Product Name :
Test Sieve
Technique :
machine stamped
Frame Material :
stainless steel, iron
Mesh Material :
stainless steel
Mesh Type :
Perforated sheet, woven mesh
Hole Shape :
Round, square
Diameter :
100mm, 150mm, 200mm, 250mm, 300mm, 350mm
Frame Layer :
double layer
Feature :
Precision Filtration
Application :
filter
Description

100mm 150mm Perforated Sieving Screen Mesh Filter Sieve

Mesh Number Of Test Sieve

The number of meshes refers to the number of empty holes on the screen per square inch. 50 meshes means that there are 50 holes per square inch, and 500 meshes are 500. The higher the mesh number, the more holes. In addition to indicating the holes of the screen, it is also used to indicate the particle size of the particles that can pass through the screen.

Particle Size Of Test Sieve

Because the particle shape is very complex, there are usually several representation methods such as sieving particle size, sedimentation particle size, equivalent volume particle size, and equivalent surface area particle size. The sieving particle size is the size of the sieve holes that the particles can pass through the screen. At present, it is more popular in the world to use the calculated diameter of the equivalent volume particle to express the particle size, expressed in μm or mm.

Mesh Number And Particle Size Correspondence Table Of Test Sieve

British Standard (Mesh) American Standard (Mesh) Lerthai Standard (Mesh) International Standard (Mesh) Microns (μm) Millimeter (mm)
4 5 5 — 4000 4.00
6 7 7 280 2812 2.81
8 10 9 200 2057 2.05
10 12 10 170 1680 1.68
12 14 12 150 1405 1.40
14 16 14 120 1240 1.20
16 18 16 100 1003 1.00
18 20 20 85 850 0.85
22 25 24 70 710 0.71
30 35 32 50 500 0.50
36 40 35 40 420 0.42
44 45 42 35 355 0.35
52 50 48 30 300 0.30
60 60 60 25 250 0.25
72 70 65 20 210 0.21
85 80 80 18 180 0.18
100 100 100 15 150 0.15
120 120 115 12 125 0.12
150 140 150 10 105 0.10
170 170 170 9 90 0.09
200 200 200 8 75 0.075
240 230 250 6 63 0.063
300 270 270 5 53 0.053
350 325 325 4 45 0.045
400 400 400 — 37 0.037
500 500 500 — 25 0.025
625 625 625 — 20 0.020

100mm 150mm Perforated Sieving Screen Mesh Filter Sieve

100mm 150mm Perforated Sieving Screen Mesh Filter Sieve

Why Choose us?

The company has participated in many exhibitions, expositions, Canton Fairs, foreign exhibitions and so on.

We have rich practical experience, good customer communication skills, and can solve various problems of customers at any time.

100mm 150mm Perforated Sieving Screen Mesh Filter Sieve
