Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
Specifications
Model Number :
TP304/316L
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1TON
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Plastic Bag or Plywooden case
Product name :
Stainless steel welded pipe
Application :
Construction,Decoration,Industry,machine building,Exhaust Pipe
Steel grade :
300 Series,400 Series,200 Series,304L,316L etc
Type :
Welded
Standard :
ASTM,JIS,AISI,DIN,EN
Shape :
Round.square.Rectangle
Description

STAINLESS STEEL WELDED PIPE TP304/316L

What is specifications of our pipe?

Name stainless steel welded pipe TP304/316L
Items Square pipes,rectangular pipes, round tubes, oval pipes, special shaped pipes
Standard ASTM ,GB,DIN AISI
Material Grade 201: Ni 0.7%--1%
202: Ni 3.0%--4%
304: Ni 8%, Cr 18%
Outer Diameter Round pipe9.5mm--813mm
square 12.7x12.7--200X200mm
rectangular 20X40--150X200mm
Thickness 0.8mm - 34mm
Length 5.8m,6m, or as customers' request
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface 180Grit, 320Grit, 400Grit Satin / Hairline
400Grit, 500Grit, 600Grit Mirror finish
Application industry,exhausting,water
Test Squash test, extended test, water pressure test,heat treatment, NDT
Chemical Composition of Material Material 201 201 304
C ≤0.15 ≤0.15 ≤0.08
Si ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00
P ≤0.06 ≤0.06 ≤0.045
S ≤0.03 ≤0.03 ≤0.03
Cr 16-18 17-19 18-20
N 3.5-5.5 4--6 8-10.5
Mechanical Property Material Item 201 202
Tensile Strength ≥535 ≥520
Yield Strength ≥245 ≥205
Extension ≥30% ≥30%
Hardness (HV) <253 <253

APPLICATIONS :

1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers’ requirements

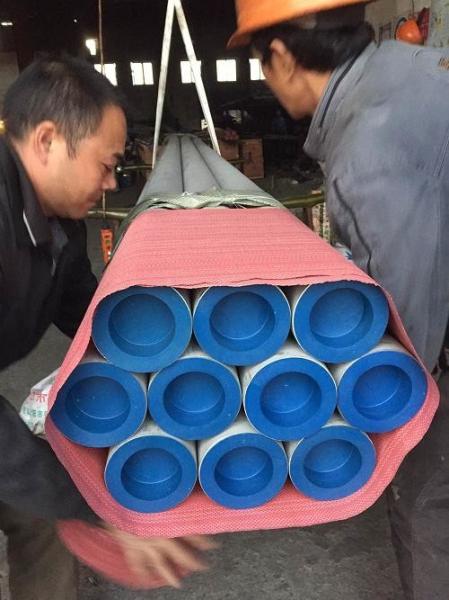

Packing:

Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional

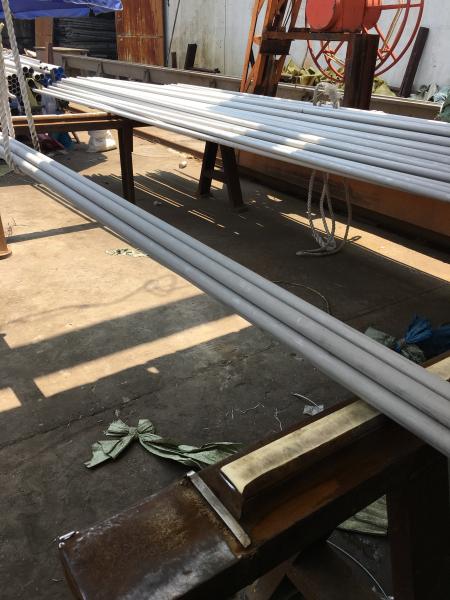

Workshop:

Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional

Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional

Processing technic:

Stainless Steel Welded Tube TP304 316L Round / Square / Rectangle Shape Optional
