30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
30 Inch Liquid Filter Housing 304/316 Stainless Steel Corrosion Resistance
Specifications
Brand Name :
Xinli
Model Number :
XLSF
Certification :
ISO9001
Place of Origin :
Henan
MOQ :
1
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Pieces/Month
Delivery Time :
15-18 work days
Packaging Details :
Plastic bubble film + wooden box + certificates + as the clients requirement
Application :
Industry Filter
Operaing temperature :
Under 480℃
Color :
Silver
Feature :
Corrosion Resistance
Filter rating :
0.45-800μm
Shape :
Customers' Request
Size :
Single or multiple filter element
Material :
304
Description

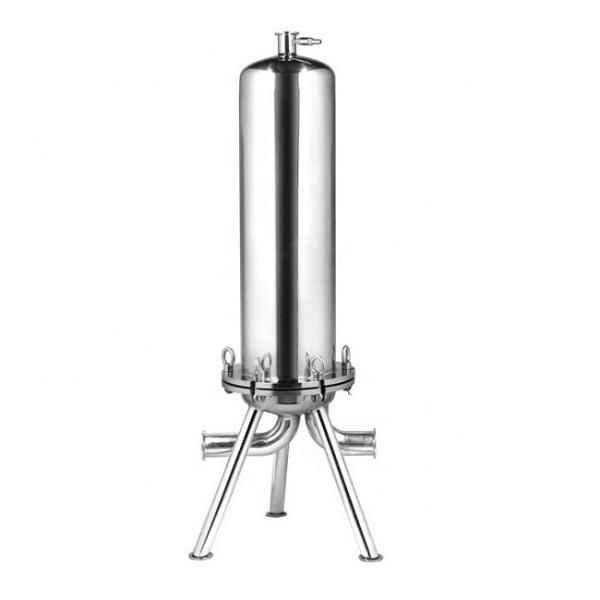

30inch 304/316 Stainless Steel filter Housing for Liquid Filter

The filter can eliminate the particulates and bacteria larger than 0.2μm from liquid and gas. It has the following advantages: high precision, fast speed, low adsorption, no medium fall off, acid resistant. lye-resistant and easy operation. It is widely used in pharmacy, chemical, winery, beverage industries etc.
Material: Housing Stainless Steel 304 and 316L for Choice
O-Ring Silicone, Viton, EPDM, etc
Surface Finish: Interior/Exterior Electro polished, Ra≤0.2um
Connections: Inlet/Outlet Tri Clamp 1” to 10”
Or as your request
Flange
Thread
DIN 11851
Vent ¼" female
Drain 1" male or as your request
Lid/Cover Type: Swing Bolts or Tri Clamp(only for single round)
Length: 5, 10, 20, 30 40 inch
Operating Pressure: Max. 6 bar(87 psi)
Temperature: Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter: 220(DOE), 222, 226, etc
Cartridge Capacity: 1, 3, 5, 7, 8, 9, 10, 12, 15, 20, 24, 30, 36, 45, etc

Application:

1. Weak corrosion material filtration: Water,oil,ammonia,hydrocarbon

2. Corrosion material filtration: Caustic soda,soda ash,acid,Carbonic acid,Aldonic acid

3. Food & Beverage and Pharmaceutical: Bear,juice,dairy products,syrup.

Feature:

1. Mirror Surface Finish Complete Stainless Steel Construction;

2. Easy To Install Design With Sanitary Connections, Easy to Clean;

3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;

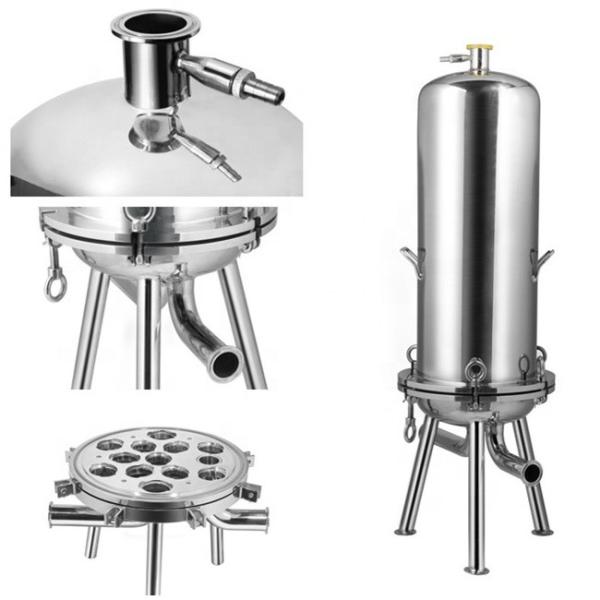

Image:
