CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread
CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread
CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread
CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread
Specifications
Model Number :
YH-mini-02
Certification :
CE& ISO
MOQ :
5 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 ton/ Month
Delivery Time :
20 days
Packaging Details :
Poly wood and boxes
Samples :
Free samples are available
OEM :
OEM design is available
size :
1/4"-4"
Body material :
Stainless steel 316, 316L, 304
Working Temperature :
—20℃ ~ 200℃
Color :
Silvery White
Certificate :
CE and ISO
Connection :
Female Thread
Description

1/2" - 2" CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread

1. Description

Our range of Mini Ball Valves is manufactured using the finest quality raw material. These valves are known for their durability, constant performance and sturdiness. These mini ball valves are very helpful and work very smoothly. These wide ranges for mini ball valves are appreciated for its superior performance, Zero Leakage & Corrosion Free. They are accessed at competitive prices.

2. Material Specification

ITEM DESIGNATION MATERIAL
1 O-RING VITON
2 STEM 304
3 BOLT 304
4 LEVER ALUMINUM ALLOY
5 BODY CF8M
6 CAP CF8M
7 BALL SEAT (A) R-PTFE
8 BALL CF8M
9 BALL SEAT(B) RPTFE
10 THRUST WASHER PTFE

3. Parameters

SIZE 1/4" 3/8" 1/2" 3/4" 1"
D 7 7 9.2 12.5 15
L 42 42 46 54 65
H 26.5 26.5 28.3 31.5 34
W 22.8 22.8 22.8 22.8 22.8

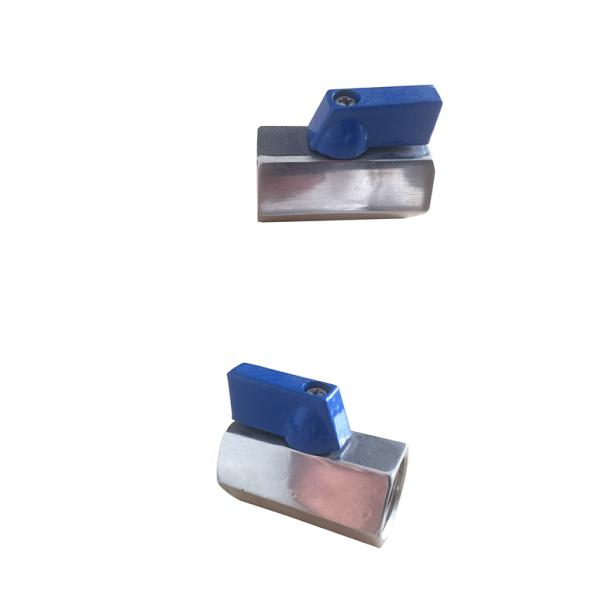

4. Pictures

CF8M And CF8 Mini Ball Valve Female and Female Blue Handle NPT Thread
