1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
Specifications
Model Number :
YH-MV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 3.85- 4.08 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Body material :
Stainless Steel 316/304
Media :
Water Oil Gas
Handle Color :
Blue/Red
Working pressure :
6.3 Mpa
Certificate :
CE
Connection type :
Thread
Description

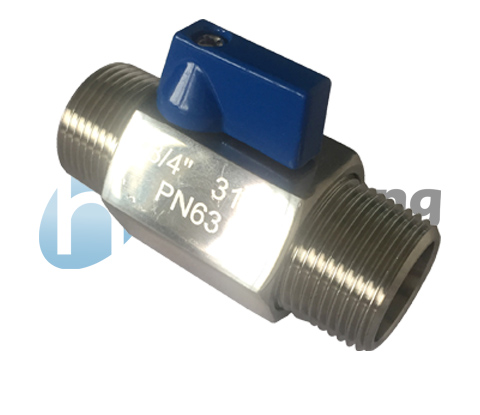

1000 WOG Mini Ball Valve Npt / Bsp Threaded Blue / Red Handle Color

Stainless steel mini ball valves are mainly made from Stainless steel 304 or 316 material, other stainless steel material are also available.

The feature and fuction is better than brass or carbon steel products.

The shape, material and color can be customized. There are MM threaded type and MF threaded type. The handle have red, blue colors for

choice. The handle are made of plastic or steel. There are NPT, BSP, BSPT threads.

For special size requirements we can also modify according to the needs.

The working pressure is 1000 PSI, WOG.

Material and specification

Item ITEM Material
1 O-RING viton
2 STEM 304
3 BOLT 304
4 LEVER Aluminum alloy
5 BODY CF8M
6

CAP

 CF8M
7 BALL SEAT(A) R-PTFE
8 BALL CF8M
9 BALL SEAT(B) R-PTFE
10 THRUST WASHER PTFE

1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color

SIZE 1/4" 3/8" 1/2" 3/4" 1"
D 8 8 9.2 12.5 15
L 50 50 58 70 83
H 26.5 26.5 28.3 31.5 34
W 22.8 22.8 22.8 22.8 22.8
S 21 21 25 31 38

1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color

1000 WOG Mini Ball Valve Npt / Bsp Threaded 304, 316 stainless steel Blue / Red Handle Color
