2~12 DN50~DN300 ASTM B62 Class C83600 SS304 Wafer Butterfly Valve
2~12 DN50~DN300 ASTM B62 Class C83600 SS304 Wafer Butterfly Valve
2~12 DN50~DN300 ASTM B62 Class C83600 SS304 Wafer Butterfly Valve
2~12 DN50~DN300 ASTM B62 Class C83600 SS304 Wafer Butterfly Valve
Specifications
Brand Name :
TOBO
Model Number :
Butterfly valve
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
12USD-30USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000PCS
Delivery Time :
15work days
Packaging Details :
Packed in wooden cases of plywood
Name :
butterfly valve
material :
SS416
Pressure test :
EN12266
Size :
DN50~DN200
Suitable temperature :
-10-120℃
Pressure rating :
PN10, PN16, Class150
Description

2"~12", DN50~DN300 ASTM B62 Class C83600 SS304 Wafer Butterfly Valve

Body Test:1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test:1.1 times the working pressure with water.
Function/Operation Test:At the time of final inspection,each valve and its actuator (Flow-Control Lever/ Gear/Pneumatic Actuator),under goes a complete operating test (Open/Close).This test carried out without pressure and at ambient temperature.It ensures the correct operation of the valve/actuator assembly with accessories such as solenoid valve,limit switches,air filter regulator etc.
Special Test:On request,any other test can be carried out according to special instruction by client.

Part Name Material ASTM Spec.
Body Cast Iron ASTM A126 Class B
Shaft Stainless Steel AISI 416
Disc-1 Stainless Steel ASTM A351 Class CF8M
Disc-2 Cast Bronze ASTM B62 Class C83600
Disc-3 Ductile Iron ASTM A536 Class 65-45-12
Bushing PTFE Commercial
Liner EPDM or NBR Commercial
O-Ring EPDM or NBR Commercial
Plug Steel ASTM A307 Class B
Washer PTFE Commercial

Name Material
Body GJS500-7/ GJS400-15
Disc GJS500-7/ GJS400-15
Shaft SS420/SS431/Duplex 1.4462
Body seal ring SS304
Disc seal ring EPDM
Shaft bearing Al-bronze
Retainer ring Carbon steel +epoxy/ SS304
O ring EPDM
Pin SS420
Packing gland Carbon steel +epoxy
End cover Carbon steel +epoxy
Key SS420
Connection flange Carbon steel +epoxy

With the support of customers, the company continues to develop new products and research new technologies, and strive to create high quality and low price Dn50-2-Inch-ANSI-Class-150-EPDM Rubber Seat Lug Cast-Steel-12volt Modulating Electric Actuator Butterfly Valve for customers. Our company always adheres to the people-oriented development concept, focusing on the combination of high-level talent introduction and talent training. Following strict standards and choosing fine materials is the unanimous consensus that enables the company to grow and develop.

Hot Tags: aluminum bronze marine butterfly valve, China, manufacturers, suppliers, factory, wholesale, price, quotation, for sale, made in China, rubber lined butterfly valve, WCB lug type PTFE seat butterfly valve for marine use, butterfly valve gear, ptfe lined butterfly valve, wafer valve, manual operation lug type stainless steel butterfly valve

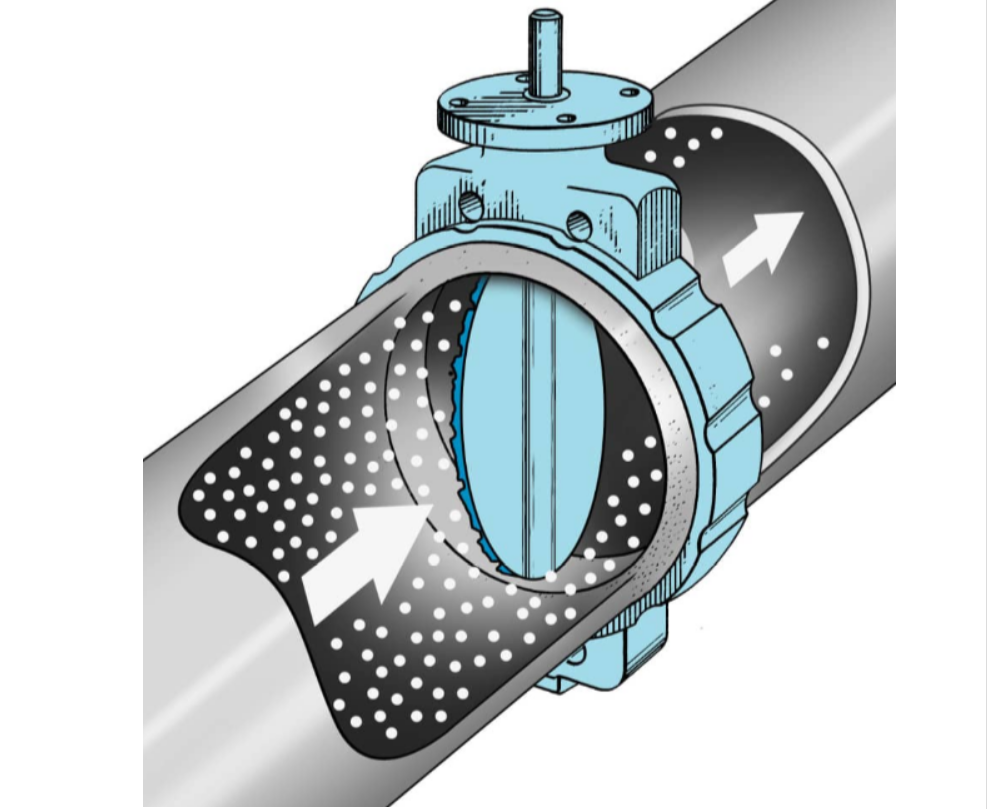

2
