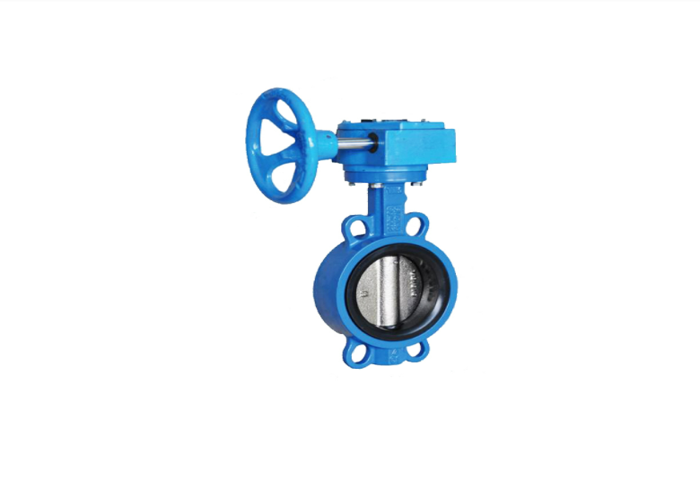

Water Oil Gaz ASTM A351 Class CF8M AISI 416 Wafer Butterfly Valve
Water Oil Gaz ASTM A351 Class CF8M AISI 416 Wafer Butterfly Valve
Water Oil Gaz ASTM A351 Class CF8M AISI 416 Wafer Butterfly Valve
Water Oil Gaz ASTM A351 Class CF8M AISI 416 Wafer Butterfly Valve
Specifications
Brand Name :
TOBO
Model Number :
Butterfly valve
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
12USD-30USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000PCS
Delivery Time :
15work days
Packaging Details :
Packed in wooden cases of plywood
Name :
butterfly valve
material :
SS416
Pressure test :
EN12266
Size :
DN50~DN200
Suitable temperature :
-10-120℃
Pressure rating :
PN10, PN16, Class150
Description

Water, Oil, Gaz ASTM A351 Class CF8M Wafer Butterfly Valve

Triple eccentric butterfly valve DN600 specifications

Nominal diameter: DN50 ~ 2000mm

Nominal pressure Pn (LB) : 0.6 ~ 6.4MPa

Applicable medium: air, water, steam, gas, oil and acid, alkali, salt with weak corrosive medium, etc

Applicable temperature: carbon steel: -29℃~425℃;Stainless steel, chrome-molybdenum steel: -40℃~550℃

Leakage rate :0.1*DNmm3/S (in line with GB//T13927-92 standard)

Actuation: handle, turbine, electric, pneumatic.Electric and pneumatic devices adopt famous and superior products at home and abroad, with more reliable performance (can be specified by users).

Stem can be lengthened according to user's requirements.

When the butterfly valve is used in urban heating pipe network, the two-way pressure sealing can be selected according to the user's demand.

Triple eccentric butterfly valve DN600 Main parts and materials

Body: carbon steel, stainless steel, chromium molybdenum steel, alloy steel

Stem: 2Cr13, 1Cr13 stainless steel, chromium molybdenum steel

Butterfly plate: carbon steel, alloy steel, stainless steel, chromium molybdenum steel

Bearing: austenitic stainless steel, 304 nitriding

Sealing ring: stainless steel and high temperature resistant asbestos plate is composed of multiple layers

Filling: flexible graphite

Part Name Material ASTM Spec.
Body Cast Iron ASTM A126 Class B
Shaft Stainless Steel AISI 416
Disc-1 Stainless Steel ASTM A351 Class CF8M
Disc-2 Cast Bronze ASTM B62 Class C83600
Disc-3 Ductile Iron ASTM A536 Class 65-45-12
Bushing PTFE Commercial
Liner EPDM or NBR Commercial
O-Ring EPDM or NBR Commercial
Plug Steel ASTM A307 Class B
Washer PTFE Commercial
