ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
Specifications
Brand Name :
BOZEX
Model Number :
BZX.B04487
Certification :
ISO9001,CE, SGS, BV
Place of Origin :
SHENZHEN CHINA
MOQ :
1000PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50Million pcs per day
Delivery Time :
5-8working days
Packaging Details :
box size: 20cm*20cm*10cm
Product Name :
ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
Original Material :
Carton steel
Application :
Steel structure,bridge,building,airport,tower,pipeline,road,railway
Diameter :
M10,M13,M16,M19,M22,M25(1/2''-1")
Certificate :
CE,ISO13918
ODM & OME :
Available
Feature :
Light weight,excellent resistance,anti-corrosion,excellent mechanical strength etc
Transport Package :
Small Pack+Carton+Pallet
Description

ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic

Product Application

Our shear connector used for Mulit-floor & high rising bulidings, bridge construction,airport,stadium, exhibitions, conference centre, railway station.We dedicated to be expertise in struture connection solutions.

Main Features

1) ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.

2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

3) All our products meet the current standards and specifications.

ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic specification:

Product Name Cheese Head Shear Connector With Ceramic Ferrule For Steel Structure
Material Low Carbon Steel
Grade 4.8
Diameter M13,M16,M19,M22,M25
Length 40mm~300mm
Surface Treatment Polished,prevent rust
Bottom Treatment Slightly Curve or Chamfer

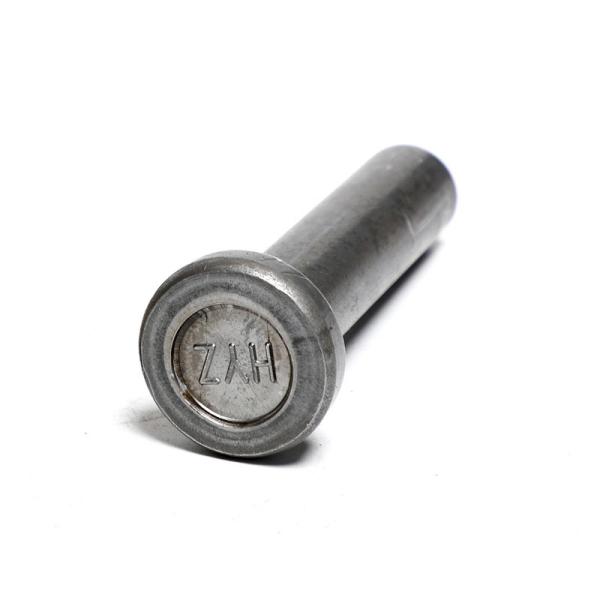

Head marking "HYZ" or Client's brand.
Quality assurance 3 years
Certifications CE,SGS,FPC BC1,UDEM,UKTC,etc.
Hot sell Standard Tensile strength Yield strength Elongation
EN ISO 13918 SD1 ≥450 Mpa ≥350 Mpa ≥15%
AWS D1.1 TYPE B ≥450 Mpa ≥350 Mpa ≥15%
BS 5400 ≥495 Mpa ≥385 Mpa ≥18%
AS/NZS 1554.2 ≥410 Mpa ≥345 Mpa ≥12%
JIS B1198 ≥400 Mpa ≥235 Mpa ≥20%
GB/T 10433 ≥420 Mpa ≥340 Mpa ≥14%

Chemical Component Of Material (%)
Material C Si Mn P S Al
SWRCH15A 0.13-0.18 ≤0.10 0.30-0.60 ≤0.035 ≤0.035 ≥0.020
SWRCH18A 0.15-0.20 ≤0.10 0.60-0.90 ≤0.030 ≤0.035 ≥0.020
Q345D ≤0.18 ≤0.50 ≤1.70 ≤0.030 ≤0.025 ≥0.015

Main Features

1) Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.

2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

3) All our products meet the current standards and specifications.

Advantages

1. Our company have more than 15 years experience in the Stainless Steel Screws field.

2. We have Professional experienced engineers, sales and overseas engineers.

3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .

4. Our high productivity can make sure your quickly delivery time

ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic

ISO 13918 Type1 SD Nelson Studs Carbon Steel Black Treatment With Ceramic
