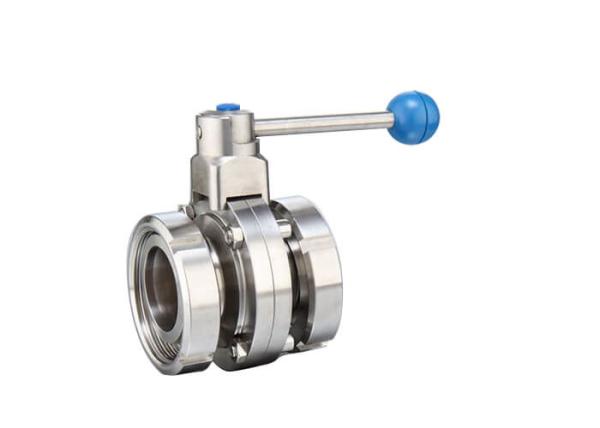

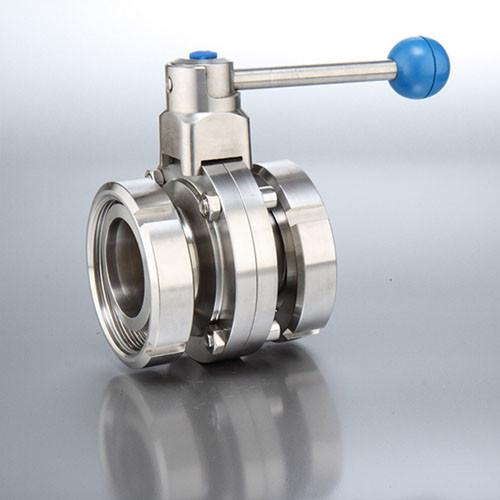

DIN Three - Piece Butterfly Sanitary Safety Valve SS304 / SS316L
DIN Three - Piece Butterfly Sanitary Safety Valve SS304 / SS316L
DIN Three - Piece Butterfly Sanitary Safety Valve SS304 / SS316L
DIN Three - Piece Butterfly Sanitary Safety Valve SS304 / SS316L
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Body Material :
304/316L Stainless Steel(Forged, 1.4301/1.4404)
Actuator Material :
Stainless Steel 304
Seal Material :
EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard
Temperature Range :
15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure :
10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Finishing :
Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available
Port Size :
1/2” through 12”
Connection :
Female thread(NPT, ACME)
Features :
100% hydraulic tested / 100% inspected
Application :
Food process, Milk process, Beer brewage, Bio-pharmacy
Description

DIN Sanitary Stainless Steel SS304/SS316L Three-Piece Thread Butterfly Valve

Description DIN Sanitary 3-piece butterfly valve
Part Number M5101EXXXFF (XXX: 0.5”=050, 1”=100)
Body Material 304/316L Stainless Steel(Forged, 1.4301/1.4404)
Seal Material EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard
Temperature Range 15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Finishing Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available
Port Size 1/2” through 12”
Connection Female Union
Connection Standard 3-A, ASME BPE, ISO, DIN, BS, SMS
Minimum order 10pcs each size
Features 100% hydraulic tested / 100% inspected
Specifications See our catalog for sanitary/hygienic valves
Application Food process, Milk process, Beer brewage, Bio-pharmacy
Packaging Five layers of double corrugated boxes, 1pc each
Shipment Air shipment, Ocean shipment, DHL/UPS available
Payment T/T, L/C, West Union, Paypal
