Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Media :
Water
Structure :
Ball
Connection :
Clamp
Color :
Customer's Request
industry :
Sanitary industry food beverage beer industry
Connection Type :
Tri Clamp/weld
Power :
Manual
Port Size :
Standard
Size :
Custom Made
type :
Retention Ball Valve
Description

Non Retention Sanitary Ball Valves Small Operated Torque For Food / Pharmaceutical


Sanitary Non-Retention ball Valve is a two splitted design sanitary ball valve, the combination is connected by heavy clamp. Non-retention ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete of DIN, SMS standards etc., it is without dead angle, and no retention of flow. NYHAU sanitary provides a wide range of sanitary valves for food processing, beverages, fruit juices, wine, biopharmaceutical etc.

Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Valve body combined with clamp connection.
  • Valve body is renewable and changed to other connections.
  • Small operated torque.
  • Easily disassemble without special tools.
  • Gasket materials complies with FDA 177.2600.
  • Connected end of tri-clamp,weld,thread available.
  • Standard of DIN, SMS, ISO, IDF, BPE, RJT etc.

Application:

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.

Sanitary Non-Retention Ball Valves Specification

PRODUCT Sanitary Non-Retention Ball Valve
DIMENSION DN10 ~ DN65
MATERIAL T304, T316L, EN 1.4301, EN 1.4404 etc.
STANDARD DIN,SMS,ISO,IDF,BPE,RJT etc.
SEALING GASKET Silicone, EPDM, PTFE, Buna-N etc.
TEMPERATURE -30°C / -22°F up to +120°C/ +248°F
APPLICATION Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.
How to order *Part Name*Size *Material *Quantity *Standard

Working temperature :


-10oC up to 150oC


Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.
Sanitary pump line includes both centrifugal and positive displacement pumps.

Stainless Steel Sanitary Tubing and Tube Fittings Highlights:

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.
Sanitary pump line includes both centrifugal and positive displacement pumps.

Technical Parameters
Steel material Product wetted steel parts AISI 304 or 316L
(1.4306 / 1.4404)		 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical

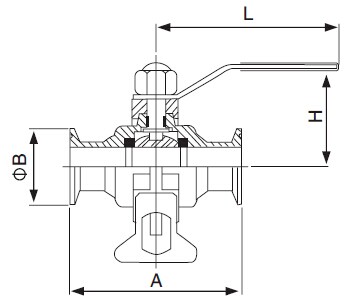

Dimension of Clamped Non-Retention Ball Valve -DIN

Size A B H L
3/4″ 19 105.0 25.4 55.0 125.0
1″ 25 125.0 50.5 55.0 140.0
11/4″ 32 132.0 50.5 65.0 150.0
11/2″ 38 140.0 50.5 65.0 160.0
2″ 51 159.0 64.0 85.0 180.0
21/2″ 63 180.0 77.5 100.0 200.0

Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical

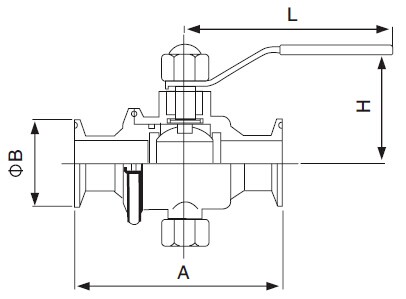

Dimension of Clamped Non-Retention Ball Valve – SMS/3A/ISO

Size A B H L
3/4″ 19 90.0 25.4 65.0 105.0
1″ 25 110.0 50.5 70.0 105.0
11/4″ 32 120.0 50.5 80.0 130.0
11/2″ 38 140.0 50.5 80.0 150.0
2″ 51 164.0 64.0 85.0 160.0
21/4″ 57 170.0 77.5 110.0 180.0
21/2″ 63 180.0 77.5 110.0 180.0

Stainless Steel Tri Clamp Ball Valve Non Retention For Food Pharmaceutical
