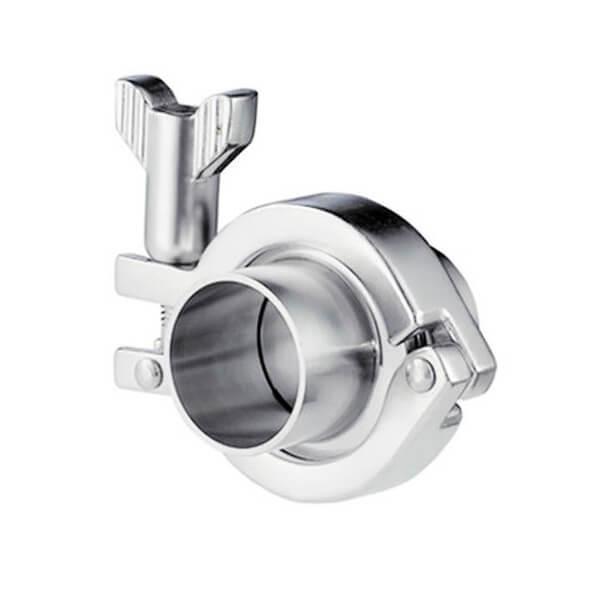

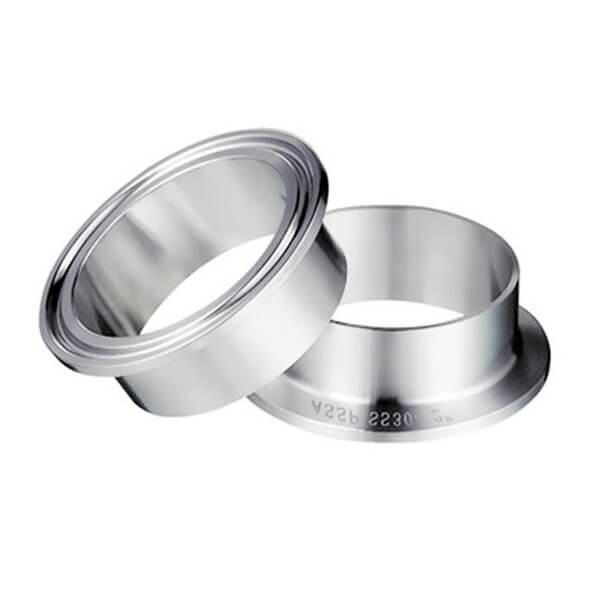

Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Short Type Stainless Steel Tri Clamp Fittings For Food Industries
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 Or 316L Forged Stainless Steel
Size :
DN10 ~ DN200
For Tubes :
DIN11866(series A / B / C), DIN11850(series 1) Pipe
Surface Roughness :
Ra, Internal < 0.8 μm, Ra, External < 1.6 μm
Compoments :
Nut Clamp, Bundle Clamp, Nut & Bundle Clamp Blank, O-ring, Clamp
Application :
Connected With Hygienic Pipes By Welding In Food And Pharmaceutical Industries
Description

Stainless Steel Sanitary Tri Clamp Fittings Short Type For Food Industriesa

Production Description:

This Tri clamp connection couplings set is designed and produced according to DIN 11853 part 3: Stainless steel clamp connection fittings for food and chemical industries

Hygienic clamp pipe connection, short type

DIN11853-3 tri clamp coupling fittings are used especially for stainless steel pipes in DIN11850.

Technical Details:

1. Size can cover DN10 ~ DN200

2. Pipe dimensions according to DIN11850 standard

3. Working pressure should be 12.7~41mm 40bar; 42.4~70mm: 25bar; 76.1~104mm:16bar

4. Stainless steel material should be 1.4301, 1.4307, 1.4404, 1.4432

5. O-ring material can be EPDM, FKM, HNBR, or VMQ

6. Surface roughness must be Ra, internal < 0.8 μm, Ra, external < 1.6 μm

7. Hardness according to DIN53505 standard: 75+/-5 shore A; ISO48 O-Ring 70+/-8 IRHD
