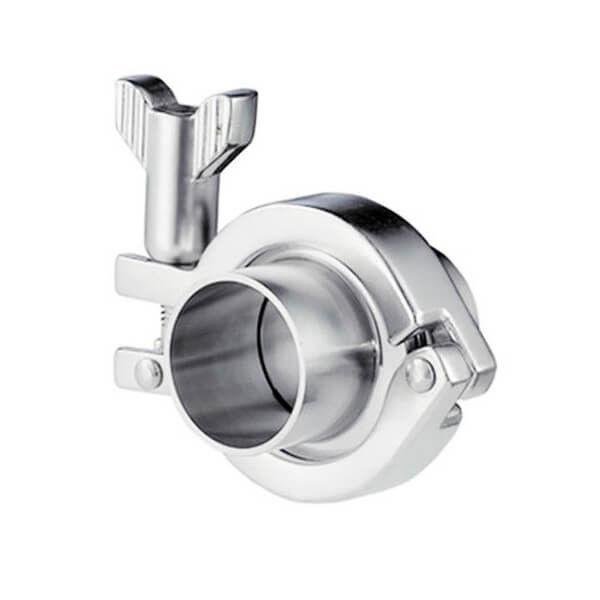

Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Short Type Sanitary Tri Clamp Fittings DN10 ~ DN200 For Food Industriesa
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 Or 316L Forged Stainless Steel
Size :
DN10 ~ DN200
For Tubes :
DIN11866(series A / B / C), DIN11850(series 1) Pipe
Surface Roughness :
Ra, Internal < 0.8 μm, Ra, External < 1.6 μm
Compoments :
Nut Clamp, Bundle Clamp, Nut & Bundle Clamp Blank, O-ring, Clamp
Application :
Connected With Hygienic Pipes By Welding In Food And Pharmaceutical Industries
Description

Stainless Steel Sanitary Tri Clamp Fittings Short Type For Food Industriesa

Production Description:

This Tri clamp connection couplings set is designed and produced according to DIN 11853 part 3: Stainless steel clamp connection fittings for food and chemical industries

Hygienic clamp pipe connection, short type

DIN11853-3 tri clamp coupling fittings are used especially for stainless steel pipes in DIN11850.

Technical Details:

1. Size can cover DN10 ~ DN200

2. Pipe dimensions according to DIN11850 standard

3. Working pressure should be 12.7~41mm 40bar; 42.4~70mm: 25bar; 76.1~104mm:16bar

4. Stainless steel material should be 1.4301, 1.4307, 1.4404, 1.4432

5. O-ring material can be EPDM, FKM, HNBR, or VMQ

6. Surface roughness must be Ra, internal < 0.8 μm, Ra, external < 1.6 μm

7. Hardness according to DIN53505 standard: 75+/-5 shore A; ISO48 O-Ring 70+/-8 IRHD
