SS 316 Wire Rope Mesh 51mm For Safety Barriers
SS 316 Wire Rope Mesh 51mm For Safety Barriers
SS 316 Wire Rope Mesh 51mm For Safety Barriers
SS 316 Wire Rope Mesh 51mm For Safety Barriers
Specifications
Brand Name :
Yuhan Wiremesh
Model Number :
YH-SS-007
Certification :
SGS
Place of Origin :
China
MOQ :
50 quare meters
Price :
USD5-20/square meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 square meters per day
Delivery Time :
10 days
Packaging Details :
Wooden Pallet
Product :
Wire Rope Mesh
keyword :
Rope Netting
Material :
SS 316
Cable Diameter :
2.0mm
Mesh Size :
51mm
Length :
16m
Width :
5m
Color :
Silver or Black
Description
SS 316 Wire Rope Mesh 51mm for Anti-Falling Safety
Product Specifications
Attribute Value
Product Wire Rope Mesh
Material SS 316
Cable Diameter 2.0mm
Mesh Size 51mm
Length 16m
Width 5m
Color Silver or Black
AISI 304 X-Tend Cable Mesh 51mm Stainless Steel Wire Rope provides superior anti-falling protection with excellent durability and flexibility.
Stainless Steel Rope Mesh Features

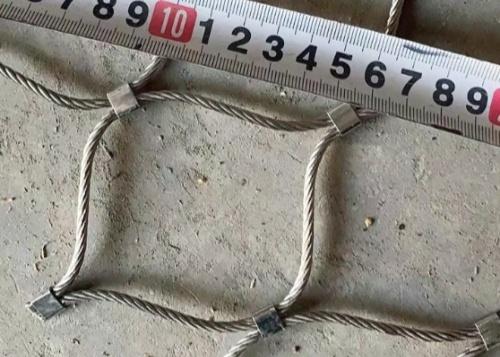

Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is manufactured from high-quality 304, 304L, 316 or 316L stainless steel materials. This innovative product combines flexibility with structural stability, offering an exceptional strength-to-weight ratio that showcases the superior toughness and plasticity of austenitic stainless steel.
Applications
Our safety protection solutions are ideal for various bridge types including footbridges, highway bridges, and suspension bridges to prevent falls of people or objects. We offer customized design options such as integrated glitter or LED modules for unique architectural effects.
Key Advantages
  • Easy assembly and durability: Securely fixed with ferrules for simple installation while maintaining high load-bearing capacity
  • Flexible structure: Can be bent and folded without compromising strength or safety characteristics
  • Excellent corrosion resistance: Made from 304/316 stainless steel for superior weather resistance in outdoor applications
  • Customizable design: Available in various rope diameters, opening sizes, and mesh aperture configurations
Design Specifications
Wire Rope Diameter (D) Mesh Aperture (M)
7 × 19
5/32" (4.0mm)		 3" × 3"
7 × 19
5/32" (4.0mm)		 3.6" × 3.6"
7 × 19
5/32" (4.0mm)		 4" × 4"
Our stainless steel cable mesh is available in two production types: ferrule type (X-TEND Mesh) and inter-woven type (hand-woven net). The ferrule type offers superior structural integrity while the inter-woven type provides a distinctive aesthetic appearance.
Buckle Types

Closed-type buckle: Features multiple steel wire ropes combined together for enhanced strength, with multiple joints at the closure end.

Open-type buckle: Constructed from a single continuous steel wire rope for easier installation and a more uniform appearance.
