304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
Specifications
Brand Name :
Yunhan Wiremesh
Model Number :
YH-Z-011
Certification :
SGS
Place of Origin :
China
MOQ :
50 square meter
Price :
USD5-20/square meter
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
1000 square meters per day
Delivery Time :
within 10 days
Packaging Details :
Wooden Pallet
Product Name :
Wire Rope Mesh
Key Words :
Cable Wire Rope Mesh Zoo Mesh
Material :
SS304
Application :
safety netting
Cable Wire :
7*7
Wire Diameter :
1.5mm
Mesh Size :
22mm*22mm
Description
304 Stainless Steel Rope Mesh For Protective Safety Net Anti-Falling Steel Wire Mesh
22mm×22mm Knotted Steel Cable Wire Rope Mesh as Staircase Fence
Wire Rope Mesh Specifications
Our stainless steel wire rope mesh is manufactured from premium 304, 304L, 316, or 316L materials, available in three process types: hand-woven, closed mouth, and open buckle designs. Each mesh is assembled with 100% seamless rope ferrules for optimal strength and stability.
Available Configurations
  • Wire diameter options: 1.0-4.0mm (Customizable: 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.2mm, 4mm)
  • Mesh size range: 20-300mm
  • Optimal stretch at 60° angle
  • Special border design for easy installation
Standard Product Specifications
Item No. Cable Diameter Mesh Opening Size
BZ-3212W1/8" (3.2mm)4.75" × 4.75"
BZ-3210W1/8" (3.2mm)4" × 4"
BZ-3290W1/8" (3.2mm)3.55" × 3.55"
BZ-3276W1/8" (3.2mm)3" × 3"
BZ-3250W1/8" (3.2mm)2" × 2"
BZ-2410W3/32" (2.4mm)4" × 4"
BZ-2490W3/32" (2.4mm)3.55" × 3.55"
BZ-2476W3/32" (2.4mm)3" × 3"
BZ-2460W3/32" (2.4mm)2.4" × 2.4"
BZ-2450W3/32" (2.4mm)2" × 2"
BZ-2076W5/64" (2.0mm)3" × 3"
Material Composition & Characteristics
Our stainless steel rope mesh (also known as cable ferrule mesh) combines flexibility with structural stability, offering an exceptional strength-to-weight ratio. This product showcases the superior toughness and plasticity of austenitic stainless steel, making it an innovative solution for architectural applications.
Applications

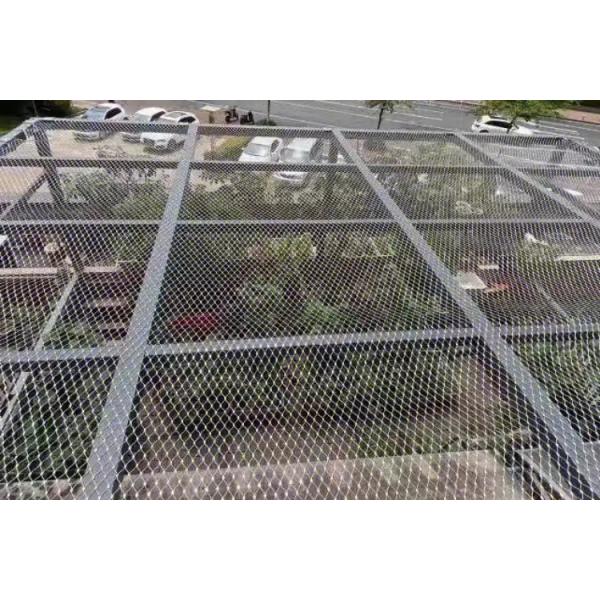

Our safety protection solutions are ideal for various structures including:
  • Footbridges and pedestrian walkways
  • Highway and suspension bridges

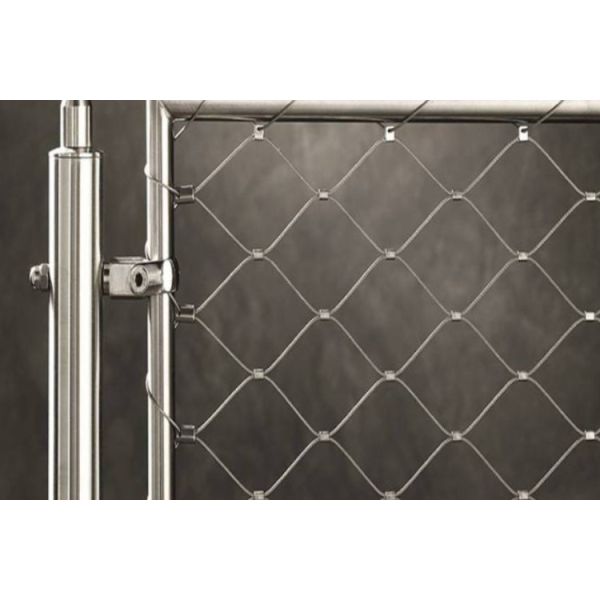

  • Staircase fencing and balcony barriers
  • Architectural facades and decorative elements
We offer customized design solutions including optional glitter or LED module integration for unique project requirements.
Key Advantages
  • Easy Assembly: Secure ferrule fixation simplifies installation
  • High Durability: Stainless steel construction offers exceptional load-bearing capacity
  • Flexible Structure: Can be bent and folded without compromising strength
  • Corrosion Resistance: Excellent weather resistance for outdoor applications
  • Customizable: Available in various rope diameters and mesh apertures
Design Specifications
Wire Rope Diameter (D) Mesh Aperture (M)
7 × 19 (5/32" / 4.0mm)3" × 3"
7 × 19 (5/32" / 4.0mm)3.6" × 3.6"
7 × 19 (5/32" / 4.0mm)4" × 4"
Our rope mesh products are available in two main series: Inter-woven (Knotted) and Ferrule Type, with numerous variations based on materials, ferrules, weaving methods, and applications.
