304 Flexible Stainless Steel Rope Mesh For Industrial Fencing Security Wall
304 Flexible Stainless Steel Rope Mesh For Industrial Fencing Security Wall
304 Flexible Stainless Steel Rope Mesh For Industrial Fencing Security Wall
304 Flexible Stainless Steel Rope Mesh For Industrial Fencing Security Wall
Specifications
Brand Name :
Yuhan
Model Number :
YH-SS-001
Certification :
SGS
Place of Origin :
China
MOQ :
50 quare meters
Price :
USD5-20/square meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 square meters per day
Delivery Time :
10 days
Packaging Details :
Wooden Pallet
Product Name :
Rope Mesh Fencing
Length :
Customized
Package :
Waterproof Paper, Pallet, Etc.
Key Word :
Wire Rope Mesh
Wire Diameter :
2.0mm
Material :
Stainless Steel 316
Width :
8m
Description
304 Flexible Stainless Steel Rope Mesh For Industrial Fencing Security Wall
Product Name Rope Mesh Fencing
Length Customized
Package Waterproof Paper, Pallet, Etc.
Key Word Wire Rope Mesh
Wire Diameter 2.0mm
Material Stainless Steel 316
Width 8m

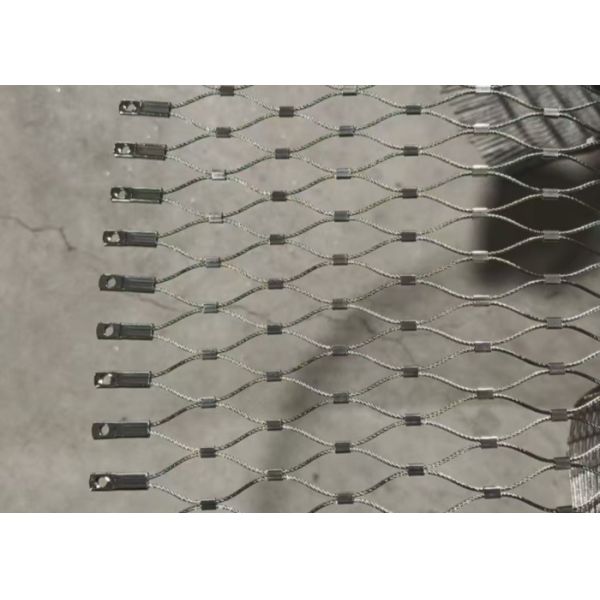

Stainless Steel Rope Mesh Overview
Wire rope ferrule mesh, also known as cable ferrule mesh or stainless steel ferrule rope mesh, is manufactured from 304, 304L, 316 or 316L stainless steel materials. This innovative product combines flexibility with stability and features an exceptional strength-to-weight ratio, showcasing the superior toughness and plasticity of austenitic stainless steel.
As a contemporary solution for architectural decoration and protection, wire rope ferrule mesh introduces a modern aesthetic element to building design, gaining increasing popularity among designers and clients worldwide.
Applications
Our safety protection solutions are ideal for various structures including footbridges, highway bridges, and suspension bridges, effectively preventing falls of people or objects. We also offer customized design options such as incorporating glitter or LED modules to create distinctive project features. All safety protection facilities are constructed using high-strength materials to ensure outstanding durability and tensile performance.
Key Advantages
  • Easy assembly and durability: The wire ropes are securely fixed with ferrules for simplified assembly. Stainless steel construction provides high load-bearing capacity, relatively low weight, and exceptional tensile strength.
  • Flexible structure: Can be easily bent and folded without compromising strength or safety characteristics, while remaining simple to package and transport.
  • Superior corrosion resistance: Available in 304, 304L, 316, and 316L stainless steel materials, offering excellent weather resistance for outdoor applications.
  • Custom design options: Each mesh can be tailored to specific project requirements with customizable rope diameter, opening size, and mesh aperture dimensions.
Design Specifications
Wire Rope Diameter (D) Mesh Aperture (M)
7 × 19
5/32"
4.0mm		 3" × 3"
7 × 19
5/32"
4.0mm		 3.6" × 3.6"
7 × 19
5/32"
4.0mm		 4" × 4"
