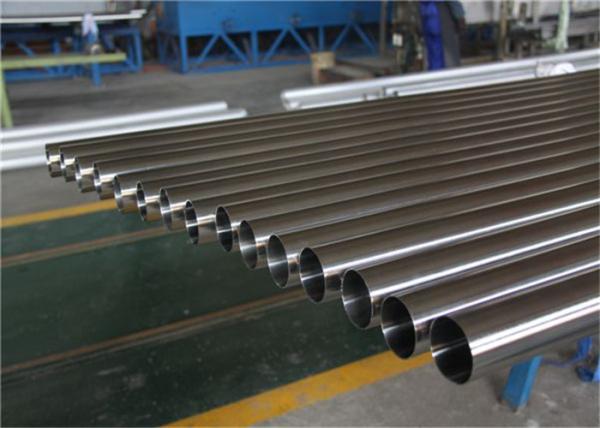

304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
Specifications
Model Number :
1" to 5"
Certification :
ISO
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000M/ Month
Delivery Time :
20 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
Sanitary Stainless Steel Pipe Food Grade Inox Tube
Material :
Stainless Steel 304 / 316
Specification :
38.1*1.5 ; 50.8*1.5
Surface :
Inside & Outside Mirror
Application :
Dairy ,Beverage ,Wine and Chemistry Industry
MTC :
Yes
Packing :
Wrap with plastic paper then put into wooden box .
Max Lengh :
6000mm
Pipe Fittings :
Yes
Factory :
Yes
Description

All Size 304 316 S316L Sanitary Stainless Steel Pipe Food Grade Inox Tube

1. Introduction :

Inner flat mirror face of stainless steel seamless pipe is famous for precise size, property, surface sanitation and high precision. Precision of our liquid steel pipe reach to the excellent level which outer diameter, inner diameter and thickness is ± 005mm when we cooperated with dairy product, beer, pharmacy, juice and food industry etc. Therefore, we have established fellowship due to our stable quality.
Inner flat mirror face of stainless steel seamless pipe is widely used in food, dairy product, drink, brewage, pharmacy and biology project etc. Its customer group are vast. Good user basis have been set up.
The used materials cover: 304, 304L, 316, 316Letc.
Specifications: Outer diameterφ 19.1-φ 1148.3mm, wall thickness0.6-3.0mm.

OD(inch) 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 2" 21/2" 3" 3 1/2" 4" 4 1/2" 5" 6" 8"
OD(mm) 12.7 15.88 19.1 25.4 31.8 38.1 50.8 63.5 76.2 88.9 101.6 114.3 127 152.4 219
WT 0.80 √ √
WT 1.0 √ √ √ √ √
WT 1.20 √ √ √ √ √ √ √ √
WT 1.25 √ √ √ √ √ √ √
WT 1.50 √ √ √ √ √ √ √ √ √ √
WT 1.60 √ √ √ √ √ √ √ √ √
WT 1.65 √ √ √ √ √ √ √ √ √
WT 2.00 √ √ √ √ √ √ √ √ √ √ √
WT 2.11 √ √ √ √ √ √ √ √ √ √ √
WT 2.50 √ √ √ √ √ √ √ √ √ √
WT 3.00 √ √ √ √ √ √ √ √


Size for DIN11850

OD(DN) 10 15 20 25 32 40 50 65 80 100 125 150 200
OD(mm)Series 1 12 18 22 28 34 40 52
OD(mm)Series 2 13 19 23 29 35 41 53 70 85 104 129 154 204
OD(mm)Series 3 14 20 24 30 36 42 54
WT 0.80 √
WT 1.00 √ √ √ √
WT 1.20 √ √ √ √ √ √ √
WT 1.50 √ √ √ √ √ √ √ √
WT 1.65 √ √ √ √ √ √
WT 2.00 √ √ √ √ √ √
WT 3.00 √ √ √ √
WT 4.00 √ √

2. Techncial Parameter :

Product name seamless pipes, ERW pipe, DSAW pipes.
Standard ASME B36.10M, ASTM A269, ASTM A213, ASTM A312, API, customized
Material stainless steel: A312 TP304, A312 TP 304L, A312 TP316, A312 TP 316L,
A312 TP 321,UNS32750,etc
Carbon steel: A106 GR B, A53 GR B
Alloy steel: A335 P11, A335 P 22, A335 P 12, A335 P 5, A335 P 9,
A335 P 91,etc
Pipeline steel: API 5L GR B, API 5L X42, API 5L X46, API 5L X65,
API 5L X70,etc
OD 3/8" -100" , DN15-DN1200, 4-2500mm
Wall thickness SCH5-SCHXXS (0.5-150mm)
Length 5.8m, 6m, 11.8m, 12m, or as required
Surface Annealing, pickling, polishing, bright, sand blast,hair line, brush, satin,
snow sand, titanium, etc
Price term Ex-Work, FOB, CNF, CFR, CIF, etc
Payment term TT, L/C, Western Union
Export to Singapore, USA, Morocco, Thailand,Australia,Viet Nam, Italy,Iran, India,
Ukraine, Nigeria,Egypt,Mexico,Pakistan,Tunis,Lebanon, Dubai, Iraq,
Syria,South Africa,South Korea, France, Spain, Turkey, Bulgaria, etc
Application Stainless steel pipe widely used in petroleum,chemical industry,electric power,
boiler,high temperature resistant,low temperature resistant,corrosion resistant.
The size of the pipes can be made according to clients requirements.
Contacts If you have any questions, please feel free to contact me.
we are sure your inquiry or requirements will get prompt attention.

304 316 S316L Sanitary Stainless Steel Pipe / Food Grade Inox Tube ISO Approved
