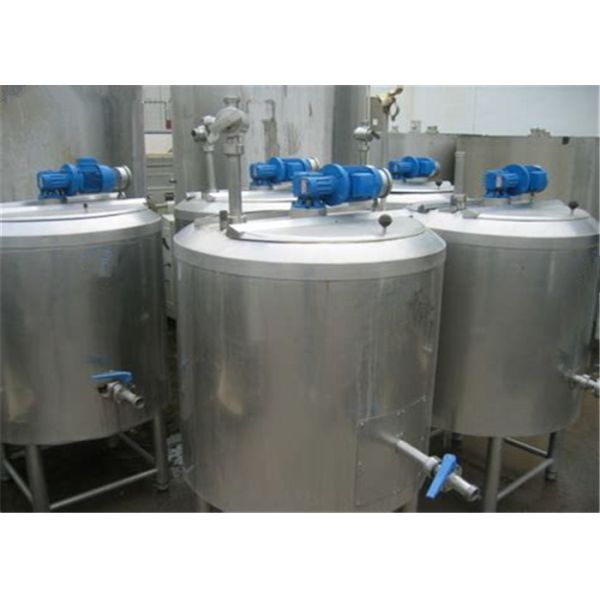

1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
Specifications
Model Number :
KQ 1000L KQ2000L KQ3000L
Certification :
ISO ,CE
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets
Delivery Time :
25 days after get your advance payment
Packaging Details :
Standard Wooden Box For Export
Name :
1000L 2000L 3000L 1000 Gallon Stainless Steel Liquid Heating Mixing Tank
Material :
Stainless Steel 304 / 316 /316L
Heating :
Steam Heating / Electric Heating
Capacity :
100L to 3000L
Speed of mixer :
18RPM / 36RPM /72 RPM
OEM :
Yes
Packing :
Wooden Box
Description

1000L 2000L 3000L 1000 Gallon Stainless Steel Liquid Heating Mixing Cooling Tank

1. Introduction of the tank :

Three-layered heating mixing tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.

1. Tank Part

Capacity: 2000L

Material: Stainless Steel 304

* Type: with Jacket and insulation

* Internal shell thickness: 4 mm

* Jacket thickness: 3mm

*PU insulation wall: 50mm

* Outer shell thickness: 1.5 mm

* Appearance: Ellipsoidal head top and down

* Accessories Included:

(1) Manhole: DN500mm

(2) Liquid Inlet/Outlet

(3)Electric Heating Bar

(4) Mixing System

(5) Temperature Gauge

(6) The Electric Motor

(7) Electric Cabinet

(8) Syrup Inlet / Outlet

(9) Auto CIP Cleaning Ball

(10) Name Plate

2. Technical Parameter :

Tank Capacity(L) 2000L
Material Food Grade Stainless Steel 304
Speed of Mixer 36r/min.3KW
Electric heating bars power 72KW, 380V,50HZ,3PHZ
Heating Area(M2) 7.5
Material Input/output Φ63.5mm
Electricity Make to your order .
Dimension(CM) 160*160*220
Package Put on wooden pallets then put into a 20 GP container .
Weight (Kg) 1500

1000L 2000L 3000L Liquid Mixing Tank 1000 Gallon Stainless Steel Tank
