Specifications
Brand Name :
ABLINOX
Model Number :
ABL-SC01
Place of Origin :
Foshan China
MOQ :
20
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
200 Ton/month
Delivery Time :
35-40 days
Packaging Details :
PP bag/carton/plywood crate
Certification :
ISO9001:2015,CE
Product name :
Stainless steel Investment casting
usage :
Customized machinery
weight :
0.1KG to 10KG
Material :
Stainless steel
Casting Standard :
GB,ISO, ASTM, AISI, DIN, etc
Surface Roughness :
Ra 0.4um-12.5um
Certificate :
ISO9001:2015
Quality :
High end grade
Service :
OEM
Samples :
25days
Description

Stainless Steel Investment Casting Of Machine Part Customized For Euro And USA Market

Material Stainless Steel ,316 316L 2205
Processing lost wax casting process + Precision CNC Machining + Surface Treatment
Casting process Client drawings , pattern, raw casting, machining, packing and delivery
Surface treatment Plating, anodizing powder coating, spray-paint, electrophoresis
Size Customized as customer's drawings
Standards DIN, AISI, ASTM, BS, JIS, etc
Service To chart to sample production; OEM / ODM
Certificate ISO9001:2015
MOQ Small order is acceptable
Shipping Accept FOB or customer designated shipping agent
Package details Standard export package(carton/wooden case/pallet)
Application Machinery hardware,Auto hardware,Car hardware

Advantages of Stainless Steel Castings

Stainless steel's biggest advantage is its excellent corrosion resistance. Unlike other materials, stainless steel investment castings have a built-in chromium oxide layer that provides exceptional anti-corrosive properties.

Applications

l Food processing machinery

l Pumps

l Valves

l Pipe Fittings

l Automotive

l Marine and Oil

l Machinery

l Power & Energy

l Mechanical Castings

Production Process

1.TOOL MAKING
A wax injection mold is designed and built to produce castings per customer specifications.
2. WAX PRODUCTION
A wax pattern is produced from the wax injection mold.
3. PATTERN ASSEMBLY
Wax patterns are attached to gating system by hot knife.
4. SHELL MAKING
The pattern assembly is dipped into a ceramic slurry, coated with a refractory material and dried. The process is repeated until the desired thickness and strength is achieved.
5. DEWAXING
Using regulated steam pressure, an autoclave melts and remove the wax from the ceramic shells.
6.SHELL PREHEAT
High temperature ovens cure and preheat the ceramic shells before pouring.
7.CASTING
Pre-heated Ceramic cavities are poured with the molten metal.
8.KNOCK OUT
The ceramic shell is removed by vibration knocking and the cluster is cleaned.
9.CUT OFF
Castings are cut off from the gating system.
10.MACHINING,SURFACE FINISH,AND INSPECTION
After cut off and gate removal, all secondary finishing operations are performed. Each casting is inspected according to customer specifications and requirements.

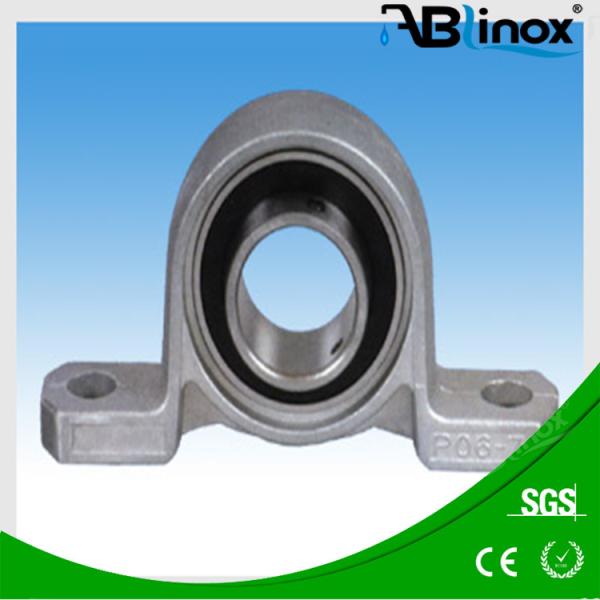

Polished Stainless Steel Investment Casting , Precision Casting Machine Parts

Equipments

With these in-house turning capabilities,We also can quote your bar stock requirements, which complements

our investment casting line.

We specialize in turning, drilling, tapping, and a variety of other machining capabilities to offer a complete product.

Why Choose Us

ABLinox can be your one-stop-shop and has in-house machining capabilities as well as outside machining services available for specialized machining.

ABLinox specializes in turning, drilling, tapping, and a variety of other machining capabilities to offer a complete product With these in-house turning capabilities, ABLinox also can meet your ready assembly product price requirements,which complements our investment casting line.

ABLinox have been cooperated with some TOP 500 enterprises in the world.

ABLinox wants to become a high-end customized expert in stainless steel industry.

ABLinox wants to be your first-grade partner in near future.

Our Service

l OEM & ODM lDrawing design lMould design l Investment Casting l Heat treatment

l Machining l Surface treatment l Assembly l Packing l Export & Trading to whole world

l Fast response within 24 hours l Project management l After-sales service

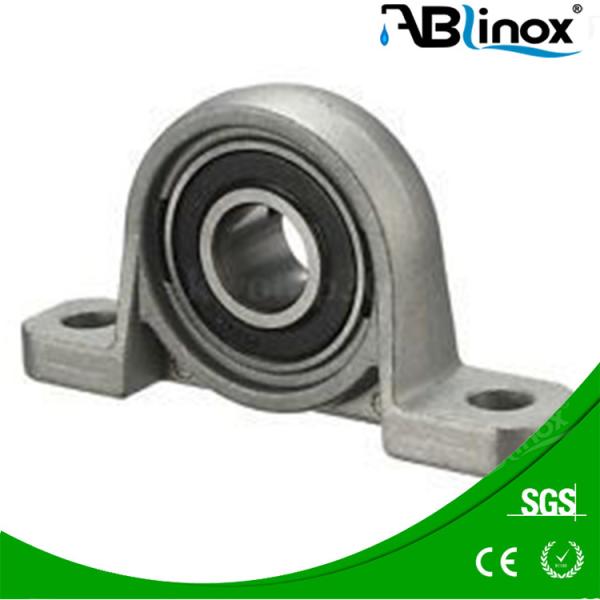

Polished Stainless Steel Investment Casting , Precision Casting Machine Parts

Quality Control

Quality inspection at each stage,

1. Incoming material inspection 2. Inspection of work-in-progress

3. Finished product inspection 4. Random warehouse inspections

Packing & Delivery

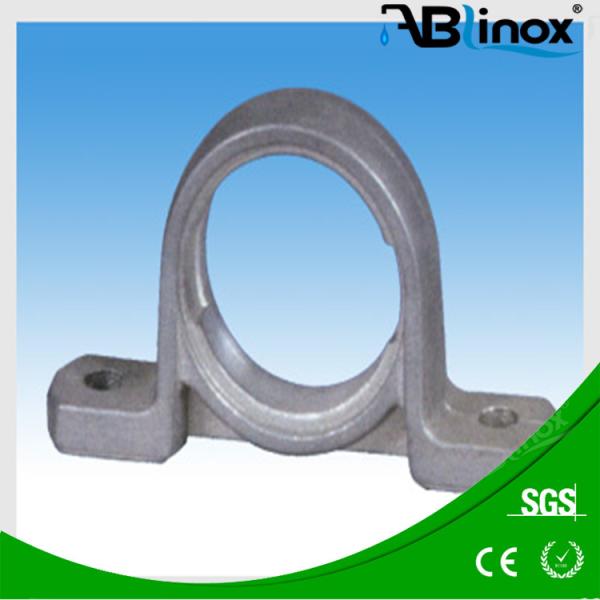

Polished Stainless Steel Investment Casting , Precision Casting Machine Parts
