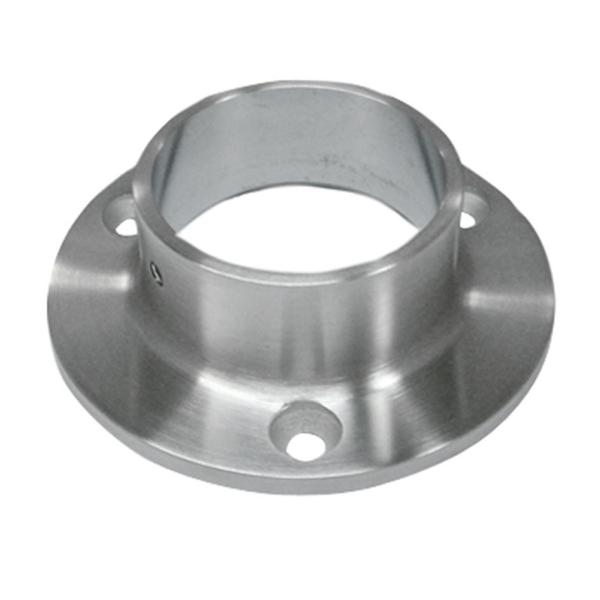

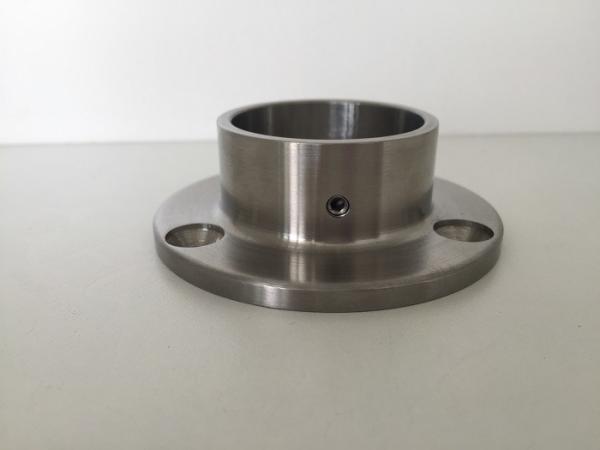

Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly
Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly
Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly
Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly
Specifications
Brand Name :
Compass
Model Number :
602
Certification :
ISO 9001, SGS
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
Bag + Box + Carton + Pallet
Name :
Balusters Wall Mount Flange
Plate :
85mm, 90mm, 100mm
Height :
25mm, 30mm
Dimensions :
33.7mm-50.8mm
Material :
AISI304, AISI316, AISI316L
Finish :
Brushed, Polished
Description

Stainless Steel Stair Balusters Wall Mount Flange in Satin Finish

Available dimensions.

Item NO. Sizes(mm) Base(mm) Height(mm) Material
602.337 33.7 85mm 25mm AISI304, AISI316
602.424 42.4 85mm 30mm AISI304, AISI316
602.483 48.3 100*6 30mm AISI304, AISI316

Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly

This Stainless Steel Stair Balusters Wall Mount Flange in Satin Finish can be used in both inetrior and outdoor, for residential and commercial buildings. They are widely used in stainless steel handrails, railings and balustrades. The quality materials keep them corrosion resistance, anti-rust and eco-friendly in nature.

Material types.

304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.

316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.

316L is the low carbon version of 316.

Compass Quality.


In house testing facilities and innovated process to assure the quality
- CNC centers
- Coordinate Measurement Machine (CMM)
- Spectrograph ( Make sure material are respecting the standards)
- Salt Spray Test

- 4 inspections.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)

Features.

Item Faisic mount flange
Material AISI3041, AISI316, AISI316L
Finish Satin(brushed), Mirror(polished)
Base 85, 90, 100mm
Height 25, 30mm
Available dimensions 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm
Packing bag + box + carton + pallet
Lead time 35-45days
Type Base flange
Application Base plate for tubular balusters
Free samples Available
Delivery term FOB, CIF, CFR, DDU, DAP

Stainless Steel Balusters Wall Mount Flange Satin Finish Eco Friendly
