ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet
Specifications
Brand Name :
Hengchengtai
Model Number :
201 304 316L 317 321 310 309 410 420
Certification :
SGS
Place of Origin :
Mainland China
MOQ :
1Ton
Price :
1000USD PER TON Or Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800TONS PER MONTH
Delivery Time :
5-10Days after confirming order
Packaging Details :
Standard waterproof package
Deliver Condition :
Solution Pickling
Processing service :
Polishing Decoiling Bending Laser Cutting
Application :
Chemical Construction Machinery Medical
Thickness :
01mm 100mm or Customized
Length :
0.3M-12M Or As Requirements
Ni Content :
9-12
Cr Content :
17-19
Tolerance :
0.01-0.1MM
Description

ASME SA-240 Middle Thick Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet Bending

The welding methods of 321 stainless steel plate can be manual TIG welding, CO2 welding and manual arc welding.

1. Manual TIG welding

Er321 welding wire, 2.5 thick or 3.2 thick can be used. For 6mm thick 321 stainless steel plate, x-groove can be used. Pay attention to welding deformation during finish welding, one on the front and one on the back, so as to offset the influence of welding deformation as much as possible.

2. Carbon dioxide welding

What does carbon dioxide welding mean? It is a gas shielded arc welding using carbon dioxide as protective gas, which is fully known as carbon dioxide gas shielded arc welding.

If you want to get better results, you can cut and weld the 6mm thick 316L stainless steel plate with flux core wire 321 Inox Sheet. The reason for choosing flux cored wire is that the spatter is very small and the weld protection effect is good, but the price is expensive.

Pay attention to the cleaning operation between layers during operation. The next welding must be carried out after removing the coating.

3. Manual arc welding

Manual arc welding refers to welding with manually operated electrodes. A207 electrode can be used for welding 321 stainless steel plate with 6mm thickness, and the intermediate layer needs to be cleaned during electrode welding.

Product Name ASME SA-240 Middle Thick Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet Bending
Length 1M 1.5M 2M 3M 5.8M Or as required
Width 3mm-2500mm or as required
Thickness 0.03mm-300mm or as required
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc
Technique Hot rolled / cold rolled
Surface Treatment NO.1 2B or according to customer requirement
Thickness Tolerance ±0.01mm
Material 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L
Application It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.
It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 3-5 workdays after receiving deposit or L/C
Export Packing Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year

Chemical Composition:

Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -

Mechanical Property:

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

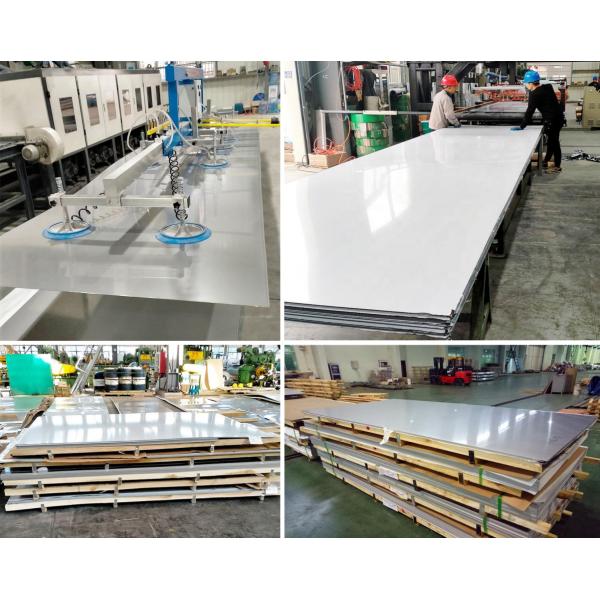

Detailed Photos:

ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet

ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet

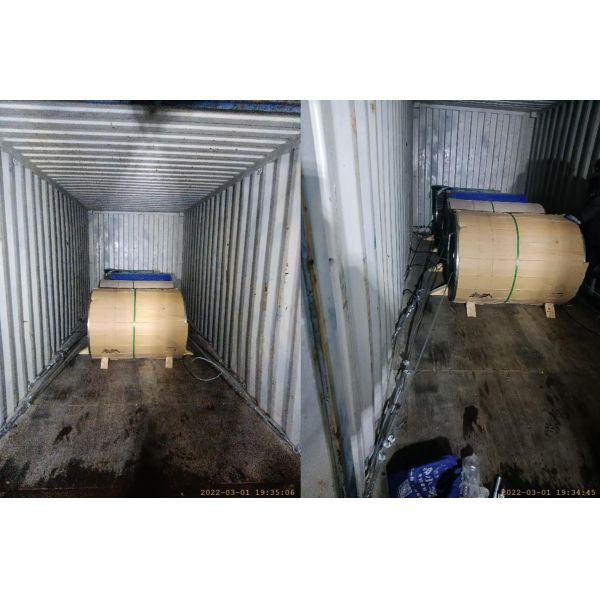

Packing & Shipping

ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet

About Us

HENGCHENGTAI SPECIAL STEEL CO .,LTD IS LOCATED IN SHANGHAI, THE LARGEST STEEL DISTRIBUTION CENTER IN EAST CHINA. SINCE ITS ESTABLISHMENT, THE COMPANY HAS BEEN COMMITTED TO PROVIDING CUSTOMERS WITH HIGH-QUALITY STEEL MATERIALS AND HAS BECOME THE LEADING SUPPLIER OF COMPREHENSIVE MATERIAL SOLUTIONS IN CHINA. THE COMPANY HAS 20,000 SQUARE METERS OF INDOOR STORAGE, MORE THAN 20,000 TONS OF SPOT INVENTORY.

ASME SA-240 Stainless Sheet 10MM Thickness Solution Pickling 321 Hot Rolled Inox Sheet

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Hengchengtai Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
