Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304
Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304
Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304
Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304
Specifications
Brand Name :
Hengchengtai
Model Number :
304
Certification :
SGS ISO ROHS
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
7-10 Days after confirming order
Packaging Details :
Standard Waterproof Package
Grade :
304
Surface Finish :
HL
Edge :
Slit Edge
Width :
1000mm,1500mm,3000mm, or as required
Thickness :
0.5 mm-3 mm or as required
Tolerance :
±1%
Description

ASTM 304 Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel

Stainless steel Brushed Finish is a metal processing technology, which is the most popular surface treatment technology in the stainless steel and aluminum products industry today. It is a Brushed surface treatment for stainless steel and aluminum products.

Product Description

Product Name ASTM 304 Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel
Standard JIS, AISI, ASTM, GB, DIN
Width within 1500mm
Length as the customers' requirements
Thickness 0.2-2.0mm

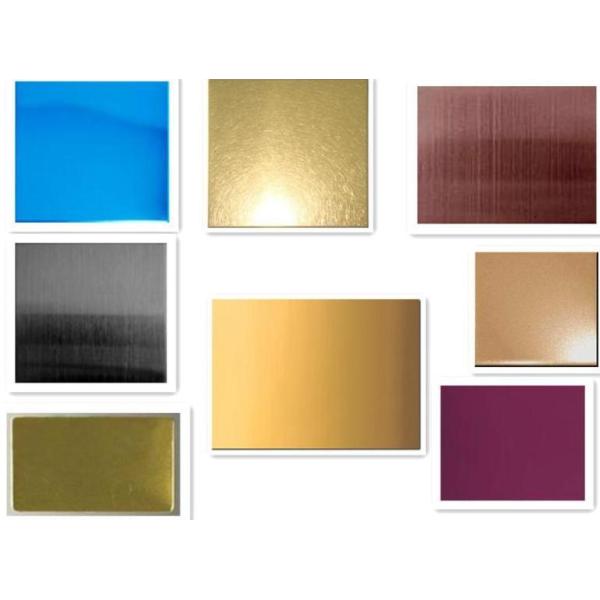

Surface Pink hairline
Color

Golden, Black , Sapphire Blue, Brown, Rose gold Bronze, ,Purple, gray, silver, Champagne violet, blue diamond, etc
manufacture Cold Rolled
Application construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields ,etc.
Packing Export standard or as customers' requirement
Delivery time 5-10 days, according to customers' requirement
Payment L/C or T/T
MQQ 1 Tons
Quality High Quality
Productivity 1000 Tons/Month

Chemical Composition

Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -

Physical Properties

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

Detailed Photo

Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304

Surface Finish

Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304

Certification

Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304

Packing & Delivery

Purple Color Stainless Steel Brushed Finish Sheet Metal Wall Panel ASTM 304

FAQ

Q1: ARE YOU FACTORY OR TRADER?

A1: Hengchengtai Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?

A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?

A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?

A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.

If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
