ASTM A240 S304 316L 309s 1.4301 White NO.1 Hot Rolled Stainless Steel Sheet 3-10mm
Product Description:
Hot rolled stainless steel plate strength is relatively low, surface quality almost (low oxidation finish), but good plasticity, generally medium thick plate, cold rolled plate: high strength, high hardness, high surface finish, generally thin plate, can be used as stamping plate.
After cutting head, cutting tail, cutting edge, straightening, leveling and other finishing line treatment, cutting plate or rewinding, it becomes: hot rolled stainless steel plate, flat hot rolled steel coil, longitudinal cutting tape and other products. Hot rolled finish roll is hot rolled pickling plate roll after pickling removing the oxide scale and oiling. The product has a partial alternative to the trend of cold rolled sheet, moderate price, loved by the majority of users.
Hot rolled stainless steel plate surface smooth, high plasticity, toughness and mechanical strength, acid, alkali gas, solution and other media corrosion. It is an alloy steel that is resistant to rust, but not absolutely resistant to rust.
Material | ASTM A240 S304 316L 309s 1.4301 White NO.1 Hot Rolled Stainless Steel Sheet 3-10mm |
Material Origin | TISCO, BAOSTEEL, JISCO, LISCO, DINGXIN |
Grade | Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc |
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 | |
200series:201,202,202cu,204 | |
400series:409,409L,410,420,430,431,439,440,441,444 | |
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc | |
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304 | |
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo | |
Technology | Hot Rolled |
Length | 100~12000 mm |
Width | 100~2000 mm |
Thickness | Cold Roll:0.1~3 mm |
Hot Roll:3~100 mm | |
Surface | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed |
| Leveling: improve flatness, esp. for items with high flatness request. |
| Skin-Pass: improve flatness, higher brightness |
Other Choices | Cutting:Laser cutting, help the customer to cut the required size |
Protection | 1. Inter paper available |
2. PVC protecting film available | |
Price Item | FOB,CIF,DDU,FCA,EXW ,.etc |
Chemical Composition:
Grade | C | Si | Mn | P | Ni | Cr | Mo |
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
201 | ≥655 | ≥310 | ≥40 | ≤100 |
202 | ≥620 | ≥260 | ≥40 | ≤100 |
304 | ≥515 | ≥205 | ≥40 | ≤92 |
304L | ≥485 | ≥170 | ≥40 | ≤88 |
316 | ≥515 | ≥205 | ≥40 | ≤95 |
316L | ≥485 | ≥170 | ≥40 | ≤95 |
321 | ≥515 | ≥205 | ≥40 | ≤95 |
409 | ≥380 | ≥205 | ≥20 | ≤80 |
409L | ≥350 | ≥185 | ≥22 | ≤80 |
430 | ≥450 | ≥205 | ≥22 | ≤80 |

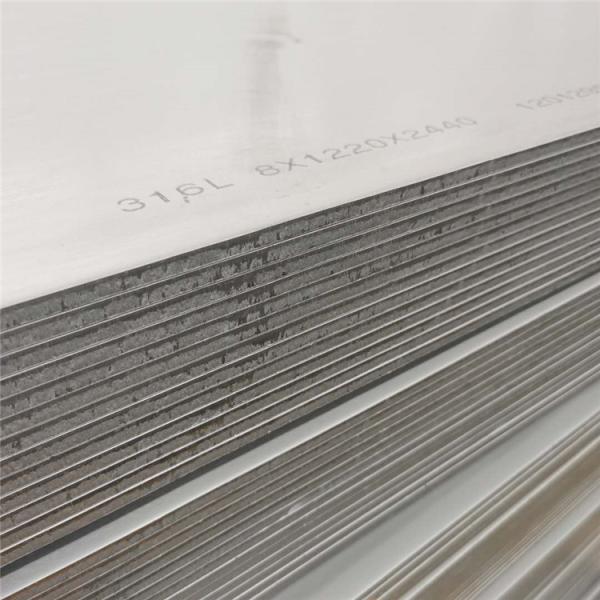

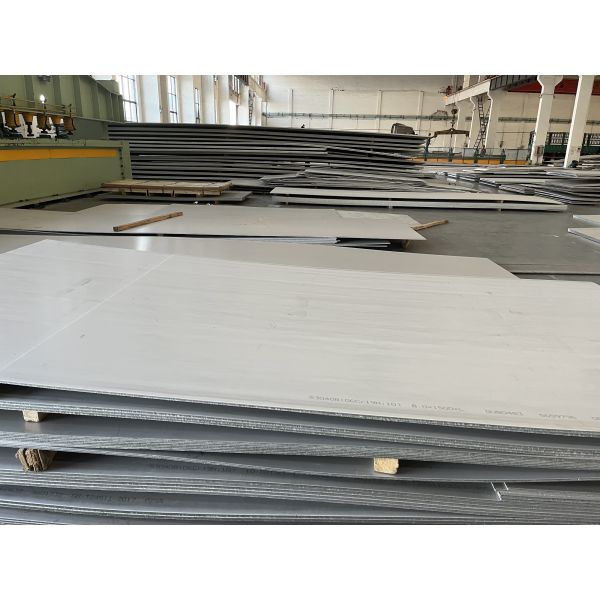

Detailed Photos:

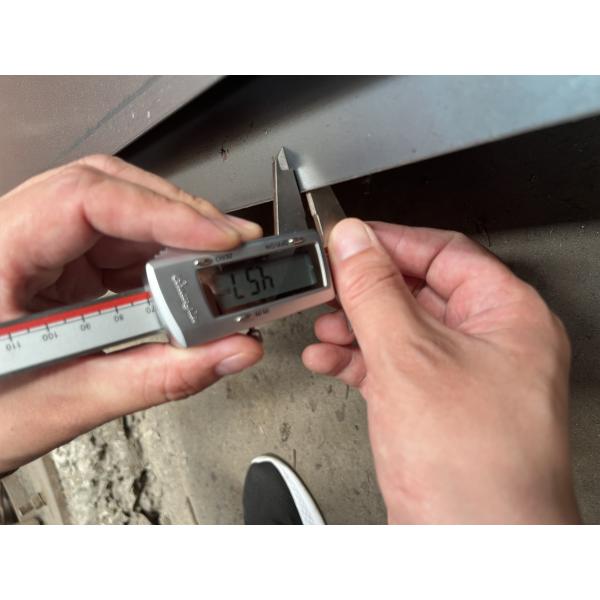

Size measurement:
Certification:
Packing & Shipping
