201 J1 Cold Rolled Stainless Steel Coil Roll Secondary For Construction

Specifications

Brand Name :

HENGCHENGTAI

Model Number :

201 J1

Certification :

ISO, SGS, RoHS

Place of Origin :

China

MOQ :

1 Ton

Price :

Negotiable

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

50000 TONS PER YEAR

Delivery Time :

7-10 Days after confirming order

Packaging Details :

Standard Seaworthy Package

Tolerance :

±1%

Material :

Stainless Steel

Thickness :

0.2mm-12mm or Customized

Length :

2000mm-3000mm or Customized

Technology :

Cold Rolled

Sample :

Available

Description

Hot Sale 201 J1 Cold Rolled Stainless Steel Coil Roll Secondary For Construction

Product Description:

The stainless steel cold-rolled coil is made of hot-rolled stainless steel strip as blank and further cold-rolled. Compared with hot rolled coil, it has higher dimensional precision, lower surface roughness, good surface quality, smooth and higher strength. Therefore, thin cold rolled coil can replace thick hot rolled coil for the same purpose, in order to save the amount of steel, economic significance.

Product	Stainless Steel Coil
Surface Finish	BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, Embossed
Technique	Hot Rolled / Cold Rolled
Standard	GB JIS ASTM ASME EN
Steel Grade	200 series: 201 202 300 series: 301 304 304L 309 310 310s 316 316L 321 400 series: 409 410 410S 420 430
Color	Standard RAL color:red,bule,white,grey,brick,etc.
Stock Dimension	0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm; 8mm-80mm x 1500/1800/2000mm/2500 x 6000mm; cut to size according to customers' demands
Service	OEM, customized processing service, customized fabrication by drawings
Processing Type	Cutting, bending,stamping,welding,cnc machining
Cutting Type	Laser cutting;water-jet cutting;flame cutting
Protection	1. Inter paper available2. PVC protecting film available
Application	Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration

Chemical Composition:

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤ 0.03	3.5 -5.5	16 .0 -18.0	-
202	≤0 .15	≤l.0	7.5-10.0	≤0.06	≤ 0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤l.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤ 0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0 - 15.0	16 .0 -1 8.0	2.0 -
321	≤ 0 .08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤ 0 .07	≤1.0	≤1.0	≤0.035	≤ 0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤ 2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤ 0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤ 0.040	≤ 0.03	≤0.60	16.0 -18.0	-

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elogation(%)	Hardness (HRB)
201	≥655	≥310	≥40	≤100
202	≥620	≥260	≥40	≤100
304	≥515	≥205	≥40	≤92
304L	≥485	≥170	≥40	≤88
316	≥515	≥205	≥40	≤95
316L	≥485	≥170	≥40	≤95
321	≥515	≥205	≥40	≤95
409	≥380	≥205	≥20	≤80
409L	≥350	≥185	≥22	≤80
430	≥450	≥205	≥22	≤80

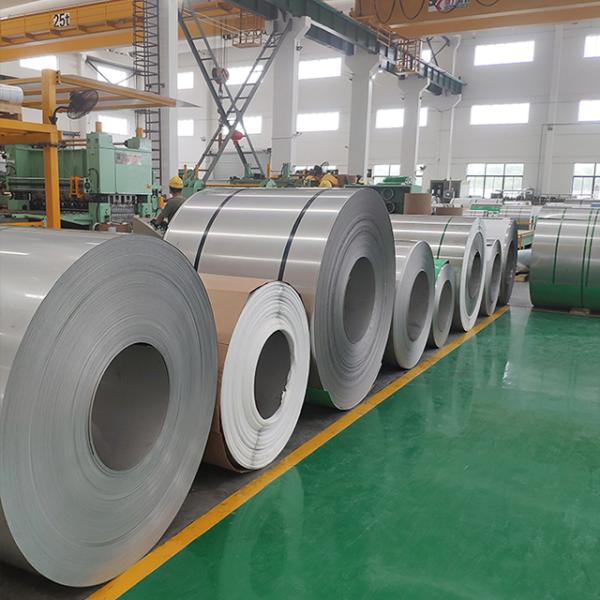

Detailed Photos:
