ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
Specifications
Brand Name :
Lichuang
Model Number :
201 202 304 304L 316 309s 310s 904l
Certification :
ISO, SGS, RoHS
Place of Origin :
China
MOQ :
1Ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 Tons/Year
Delivery Time :
7-10 days
Packaging Details :
Standard seaworthy package
Arrangement Of Holes :
Straight, Staggered, Irregular
Mesh Size :
1220*2440mm,1200*2400mm,1000*2000mm
Processing Service :
Bending, Decoiling, Cutting, Punching
Tolerance :
±3%
Trade Terms :
FOB,EXW,CIF,CRF
Application :
Protecting Mesh
Description

ASTM 201 202 304 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

Product Introduction

Stainless steel punching plate refers to the punching plate made of stainless steel. There are many advantages of punching plate made of stainless steel, the main advantage is: net surface smooth, smooth, beautiful, durable, has a wide range of uses. Can be used for civil construction, mechanical equipment protection, handicraft manufacturing, used for high-grade sound box net cover, food ventilation and heat dissipation and bridge reinforcement.

Item
ASTM 201 202 304 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet
Type
Perforated Mesh
Application
Protecting Mesh
Weave Style
Perforated
Technique
Perforated
Model Number
201 202 304 304L 316 309s 310s 904l
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Delivery Time
8-14 days
THICKNESS Thickness: 0.3mm-20mm
HOLE SIZE Hole size:0.3-50mm
SHEET SIZE Sheet Size: Normal size :39inch*78inch : 48inch*96inch ;Any size could be customised.
QUANTITY The price depond on the quantity,so any quantity could be ordered.
SURFACE TREATMENT

1> Electric galvanized,
2> Hot dipped galvanized,

3> PVC coated,
4> oxidation treatment
5> Powder coated
6> Polished

Plain Steel Perforated Metal
Hole Diameter Staggered Centers Sheet Thickness Open Area Perforated Area Percent
0.045" 1.14mm 0.066’’ 0.033-0.039" 0.84-0.99mm 37.00%
1/16" 1.59mm 3/32" 0.027-0.033" 0.68-0.84mm 41.00%
1/16" 1.59mm 1/8" 0.027-0.066" 0.68-1.68mm 23.00%
5/64" 1.98mm 1/8" 0.027-0.053" 0.68-1.35mm 35.00%
0.081" 2.06mm 1/8" 0.053-0.066" 1.35-1.68mm 38.00%
3/32" 2.38mm 5/32" 0.053-0.066" 1.35-1.68mm 33.00%
1/8" 3.17mm 3/16" 0.027-0.127" 0.68-3.23mm 40.00%
5/32" 3.97mm 3/16" 0.027-0.066" 0.68-1.68mm 63.00%
3/16" 4.76mm 1/4" 0.027-0.127" 0.68-3.23mm 50.00%
1/4" 6.35mm 3/8" 0.033-0.111", 0.25" 0.84-2.82mm, 6.35mm 40.00%
3/8" 9.52mm 1/2" 0.053-0.082", 3/16" 1.35-2.08mm, 4.76mm 51.00%
3/8" 9.52mm 9/16" 0.059", 0.119" 1.50mm, 3.02mm 40.00%
1/2" 12.70mm 11/16" 0.033-0.127", 3/16" 0.84-3.23mm, 4.76mm 48.00%
1/4" Hex 6.35mm Hex 0.285 0.027-0.033 0.68-0.84mm 76.00%

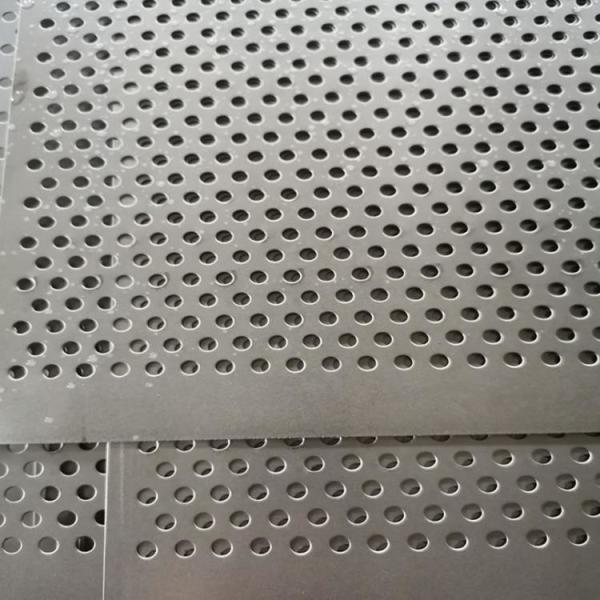

Product Show

ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

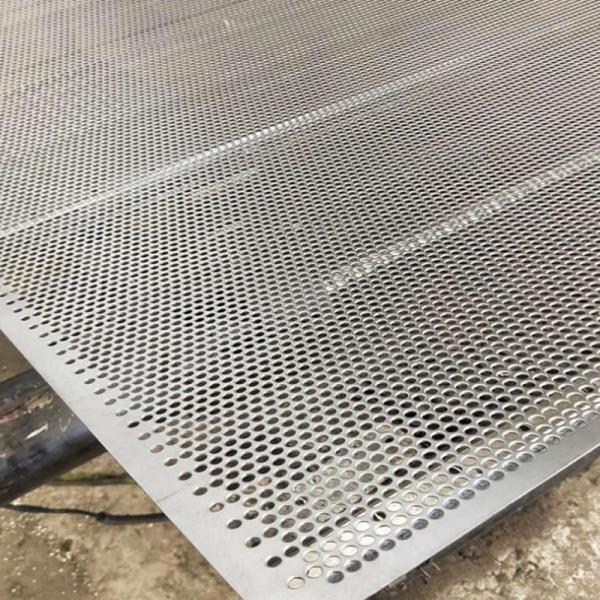

Hot Patterns

ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

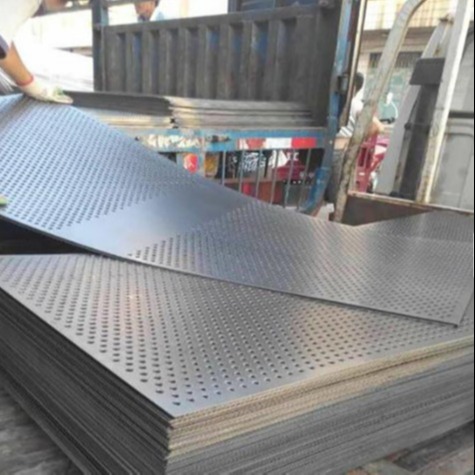

Package

ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

Shipping

ASTM 201 202 Perforated SS Plate Porous Round Hole Screen Metal Punching Mesh Sheet

F&Q

Q: ARE YOU FACTORY OR TRADER?

A: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?

A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?

A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?

A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.

If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).

If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
