500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
Specifications
Brand Name :
TISCO
Model Number :
T1, T2, T3, T4, T5, Dr8, Dr9, Ba, Ca...
Certification :
SGS ISO ROHS
Place of Origin :
Jiangsu, China
MOQ :
100KGS
Price :
500 - 1000 USD PER TON
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800TONS PER MONTH
Delivery Time :
5 - 10Days after confirming order
Packaging Details :
Standard Seaworthy Package
Thickness :
0.5 - 100mm or customized
Payment Term :
T/T L/C
Temper :
T1, T2, T3, T4, T5, Dr8, Dr9, Ba, Ca...
After sales Service :
Supporting After Sale Service
Warranty :
One Year
Edge :
Slit edge
Description

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Pdoduct Description

Tin plate, in which SN is the coating, and tin plate is also called tin plate. Tin plate is the common name of electroplated tin sheet, abbreviated as spte, which refers to cold rolled low carbon sheet or steel strip coated with commercial pure tin on both sides. Tin is mainly used to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, soldering and beautiful appearance of tin. It has the characteristics of corrosion resistance, non toxic, high strength and good ductility.

Material
SPCC,MR,SPCH
Thickness
0.5 to 100mm or as required
Width
20 to 2000 mm or as required
Length
600 to 6000 mm or as required
Tin coating
2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement
Temper
T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 BA & CA
Annealing
CA(Continuous annealing) and BA(Batch annealing)
Surface
Bright/Stone/Silver finish with passivation treatment; DOS oil
MOQ
25 tons or one container
Payment
T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Reference Standard
GB/T 2520 - 2008, JIS G3303 - 2008 ,DIN EN 10203 - 1991 and ASTM A623M - 2011
Applications
Widely used for metal packaging industry. Such as making cans for food, tea, oil, paints, chemicals, aerosol, gifts, printing

Structure

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Product Details

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Mechanical Properties

Temper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690

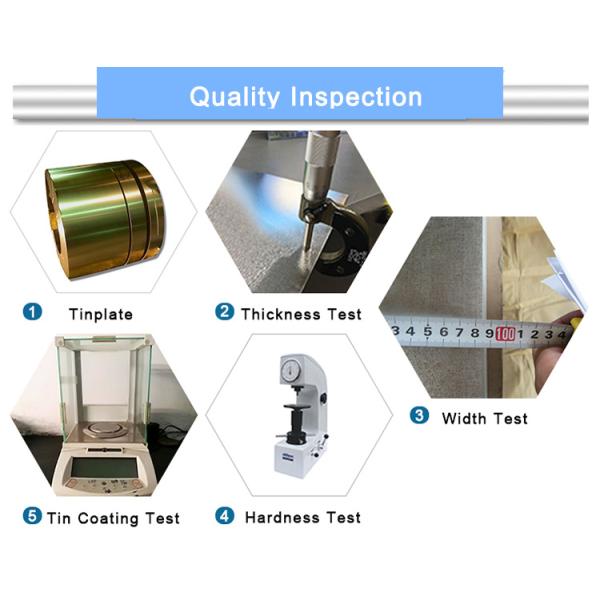

Inspection

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Application

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Package & Shipping


500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

Production Process

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided


Certificates


500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided


FAQ

How do you control quality ?
Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

What are the advantages of your company ?
We have many professionals, technical personnel, more competitive prices and best after - dales service than other stainless steel companies.

How many coutries you already exported ?
Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
