Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316
Specifications
Brand Name :
TISCO
Model Number :
201 304 316
Certification :
SGS ROHS ISO
Place of Origin :
China
MOQ :
1Ton
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800Tons per month
Delivery Time :
5-10Days after confirming order
Packaging Details :
Standard marine packaging
Technique :
Cold Rolled
Tolerance :
±5%
Length :
1000-6000mm or Customer's Requirement,customer required, 2438/3000/6000
Surface :
Mirror,Anodized,Brushed,Mill Finished,Polished etc
Product Name :
Stainless steel sheets
Type :
Plate
Description

Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316

Product Description

The most commonly used two kinds of stainless steel 304,316 (or corresponding to Germany/European standard 1.4308,1.4408), 316 and 304 in the chemical composition of the most important difference is that 316 contains Mo, and it is generally recognized that 316 corrosion resistance is better, more corrosion resistance than 304 in high temperature environment. Therefore, in high temperature environment, engineers generally choose parts made of 316 material

Chemical composition

Grade C Si Mn P S Ni Cr Mo N
SUS201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.030 0.8-1.2 16-18 -- ≤0.25
SUS301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 6.0-8.0 16-18 -- ≤0.25
SUS304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.0-10.0 18-20 -- --
SUS310S ≤0.1 ≤1.50 ≤2.00 ≤0.045 ≤0.03 19-22 24-26 -- ≤0.10
SUS316L ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.30 10-14 16-18.5 2.0-3.0 ≤0.11
SUS430 ≤0.12 ≤0.750 ≤1.00 ≤0.040 ≤0.030 ≤0.60 16-18 -- --


Physical properties

Grade Temper Vickers Hardness Yield Strength Tensile Strength Elongation(%)
SUS201 ANN <200 >205 >515 >40
1/4H 200-250 >250 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS301 ANN <250 >205 >520 >40
1/4H 250-310 >470 >780 >35
1/2H 310-370 >510 >930 >10
3/4H 370-430 >745 >1130 >5
H 430-490 >1030 >1320 >3
EH 490-550 >1275 >1570 --
SH >550 >1500 >1850 --
SUS304 ANN <200 >205 >520 >40
1/4H 200-250 >255 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS310S ≤200 <200 >205 >520 >40
SUS316L ≤200 <200 >310 >620 >40
SUS430 ANN <200 >205 >450 >22
1/2H 200-250 >330 >505 >10
H 250-310 >420 >750 >6

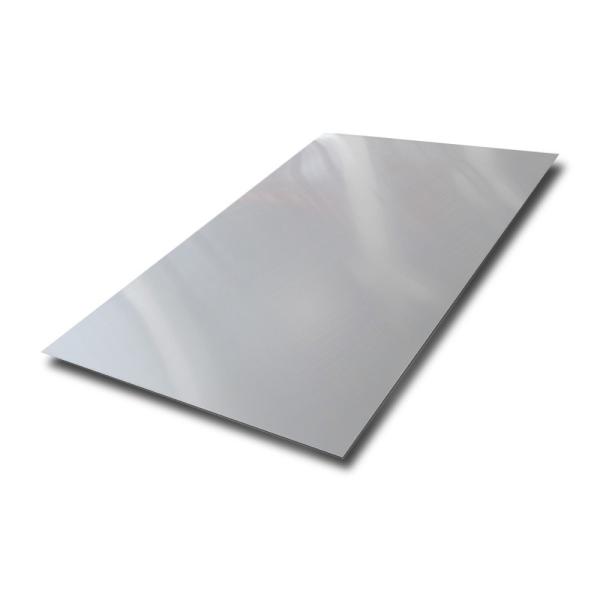

Product detailed pictures

Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316

Surface treatment.

Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316

Production equipment

Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316

Certification

Cold Rolled 2B HL Surface Cutting Bending EN Stainless Steel Sheets Plate Anodized 2mm Thickness SUS 316

FAQ


Q: ARE YOU FACTORY OR TRADER?
A: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
