Stainless Steel Channels Features & Dimensions

Stainless steel channel offers a wide variety of features and come in a variety of dimensions at Stainless Shapes. Whereas, the shape is made using a vertical web with top and bottom flanges at a 90-degree angle to the web and inside radius corners to increase the channel’s strength.

Furthermore, the hannel can be hot-rolled, extruded, or laser-fused. The following benefits and features make stainless steel channel a great choice for a wide range of industries and applications.

Features:

• • Corrosion resistance makes channel an ideal product not only for chemical, but also for petrochemical, and waste treatment applications
  • Low cost
  • High-temperature resistance
  • Surface finish is ideal for food, medical and pharmaceutical manufacturing applications
  • Easily machinable
  • Weld to exact tolerances

Hot Rolled Stainless Steel Channels Standards

Stainless steel channel dimensions that need consideration are the same dimensions that apply to each of our products. To summarise, there is height, width, thickness, and length. Whereas, these all need to fit certain measurements. In contrast, the height and width are key factors in deciding what kind of channel you need for your application.

Hot rolled stainless steel channel meets the following standards:

• A276 ASTM
• A484 ASTM
• A479 ASTM
• ASME SA479

Laser fused stainless steel channel is produced to:

• ASTM A1069/A1069M/11

Furthermore, dimensional tolerances, and grades according to:

• A276 ASTM
• ASTMA484 ASTM
• ASTM A479/A479

The Two Types of Stainless Channel

Depending on your application and industry, there are two kinds of channel to choose from, U-Channel and C-Channel. Though there are no specific terms, generally the parts of stainless-steel channel are called ‘body’ and ‘legs’. A long body with short legs is a ‘c’ channel, while a short body with long legs is called a ‘u’ channel.

C-Channel:

C-channel tends to have shorter legs and thinner bodies overall. This way it can resemble the ‘c’ shape that it is named after. C channel steel is available in:
• 304L
• 316L
Stainless C channel can withstand corrosive environments and is best used around chemicals, acids, and salt water. We offer laser fused non-tapered or hot rolled C channels, tapered.

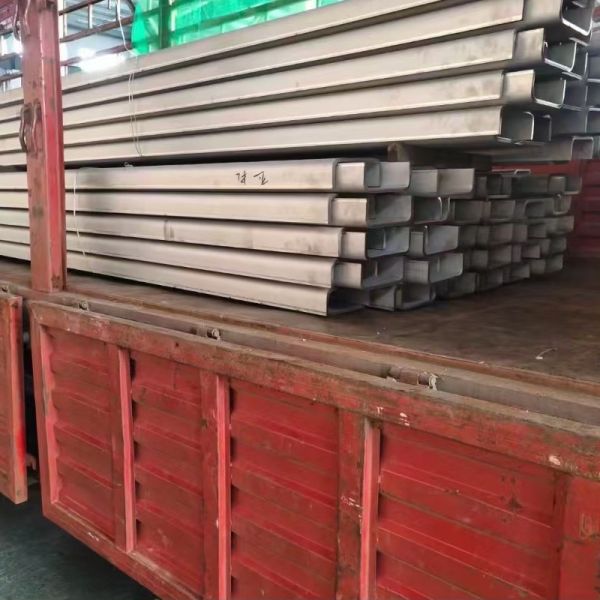

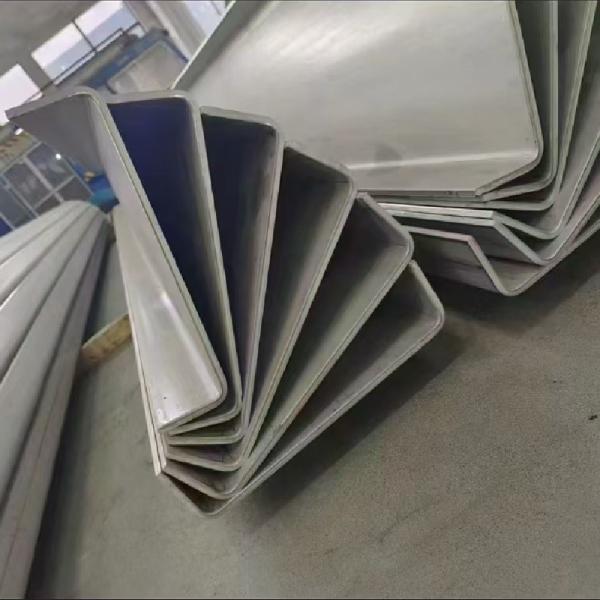

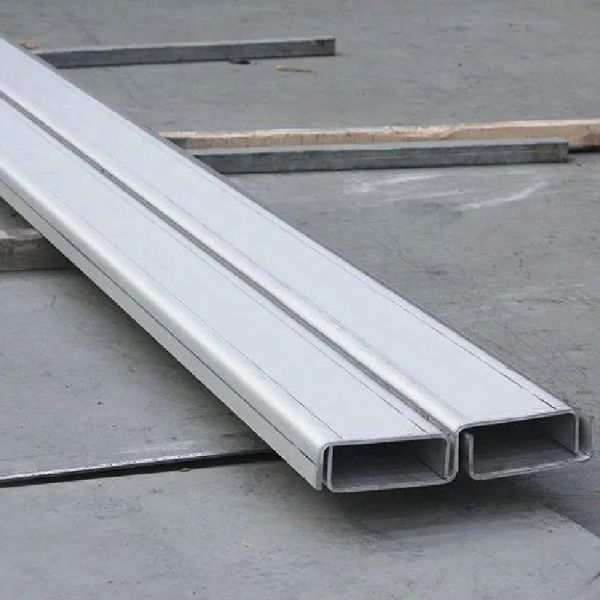

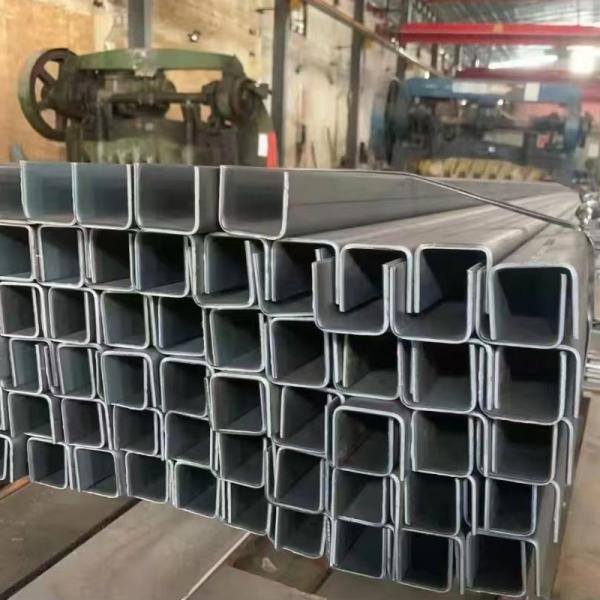

U-Channel

The U channel is like a square. The best way to produce it is to make all of the portions symmetrical. The U-channel is extremely durable and very reliable. Material available in:
• 304L
• 316L
U channel is offered in laser fused non-tapered with smooth bead blast finish. Stainless Shapes offers custom made to order U channels up to 40’ long.
