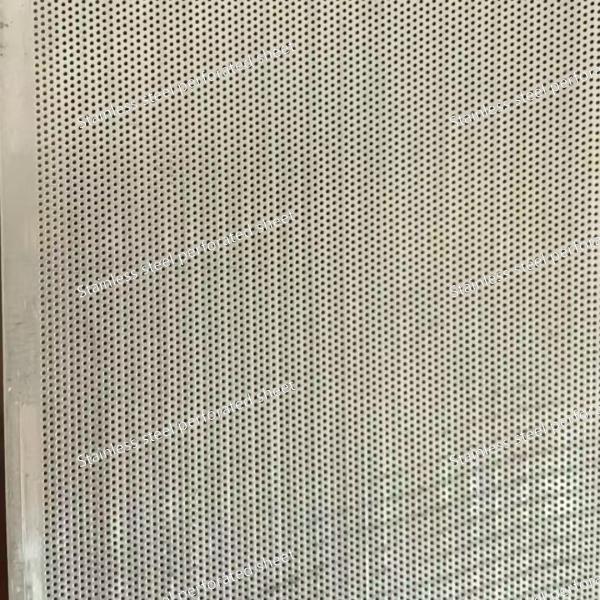

Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l
Specifications
Brand Name :
TISCO
Model Number :
304 316L 2205 2507 904L 254SMO.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2100 - 3200 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
Stainless Steel Micro Perforated Sheet
Grade :
304 316L 2205 2507 904L 254SMO.etc
Hole Diameter :
0.1 - 10.0mm
Size :
1000*2000mm 1219*2438mm 1500*3000mm
Thickness :
0.3 - 3.0mm
Type :
cold rolled
Surface :
2B
application :
industrial
Packing :
wooden pallets
Description

Stainless Steel Perforated Sheet Hole Diameter 0.1 - 6.0mm Grade 316L / 2205 / 2507 / 904l

Products Specification:

Product Name Stainless Steel Perforated Sheet
Grade 201 304L 304 309S 310S 321 317L 316L 316Ti 2205 2507 904L 254SMO 409L 436 441.etc
Hole Shape Diamond, Round, Square, Hexagon
Size for mesh panel 1000*2000mm, 1200*2400mm, 1250mm*2500mm, as customized
Hang Thickness 0.3mm-10mm
Hole Size Diameter 0.1 - 10.0mm
Techniqe Perforated
Application Office Ceiling, Building protection, Indoor decoration

316L Stainless Steel Perforated Plate Product Information​
Product Overview​
Our 316L stainless steel perforated plates are meticulously crafted, leveraging the superior properties of 316L stainless steel, a low-carbon austenitic stainless steel renowned for its exceptional corrosion resistance, especially in harsh environments. The plates are engineered with precisely punched holes of various patterns, offering customized solutions for diverse industrial and architectural applications.​
Parameters​ of 316L Stainless Steel Perforated Sheet
  • Material Composition: 316L stainless steel, with a chemical composition typically including approximately 16 - 18% chromium, 10 - 14% nickel, 2 - 3% molybdenum, and a maximum carbon content of 0.03%. This composition ensures excellent resistance to chloride-induced pitting and crevice corrosion.​
  • Tensile Strength: ≥480 MPa, providing robust mechanical strength for heavy-duty applications.​
  • Elongation: ≥40%, enabling good formability during processing.​
  • Density: 7.98 g/cm³, contributing to its structural integrity while maintaining a reasonable weight.​
Specifications​ of 316L Stainless Steel Perforated Sheet
  • Thickness: Available in a wide range from 0.3mm to 6.0mm, catering to different load-bearing and aesthetic requirements.​
  • Hole Patterns: A variety of patterns including round holes (diameter from 0.5mm - 50mm), square holes (side length from 1mm - 50mm), slot holes (width from 1mm - 10mm, length customizable), hexagonal holes, and custom patterns upon request.​
  • Plate Sizes: Standard sizes range from 1000mm×2000mm to 1500mm×6000mm, and non-standard sizes can be customized to meet specific project needs.​
  • Surface Finish: Options include BA (bright annealed), 2B (smooth cold-rolled finish), hairline finish, and mirror finish, enhancing both the functionality and appearance of the product.​
Advantages​ of 316L Stainless Steel Perforated Sheet
  • Outstanding Corrosion Resistance: The addition of molybdenum in 316L stainless steel significantly improves its resistance to corrosion from seawater, acids, alkalis, and other corrosive media. This makes it ideal for applications in coastal areas, chemical plants, and marine environments.​
  • High Strength and Durability: With excellent tensile strength and elongation properties, our perforated plates can withstand heavy loads and mechanical stresses, ensuring a long service life even in demanding conditions.​
  • Versatile Design: The wide variety of hole patterns and customizable sizes allow for flexible design choices, enabling the plates to be used for functions such as filtration, ventilation, decoration, and protection, while also adding an aesthetic element to the projects.​
  • Easy to Clean and Maintain: The smooth surface finish of the 316L stainless steel perforated plates makes them resistant to dirt and stains, requiring minimal maintenance and cleaning efforts.​
  • Environmentally Friendly: 316L stainless steel is 100% recyclable, contributing to sustainable construction and manufacturing practices, reducing the environmental impact of projects.​
Applications​ of 316L Stainless Steel Perforated Sheet
  • Industrial Filtration: Widely used in chemical, pharmaceutical, and food processing industries for liquid and gas filtration, separating impurities and ensuring the quality of products.​
  • Ventilation and Airflow Control: In buildings, factories, and ventilation systems, our perforated plates regulate airflow, providing efficient ventilation while preventing the entry of debris and pests.​
  • Architectural Decoration: Applied in interior and exterior building designs, such as facades, ceilings, and partitions, adding a modern and stylish touch to architectural projects.​
  • Acoustic Panels: Used to create acoustic solutions in auditoriums, concert halls, and offices, reducing noise levels through sound absorption and diffusion.​
  • Machine Guards and Safety Barriers: Providing reliable protection in industrial settings, preventing accidental contact with moving machinery parts while allowing visibility and ventilation.
