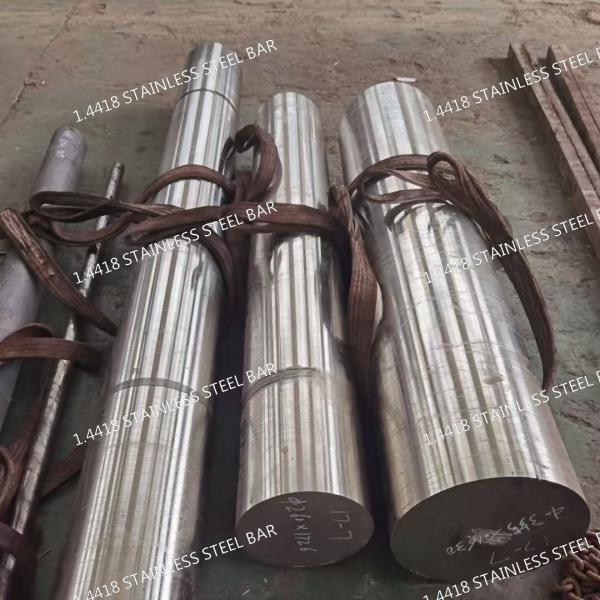

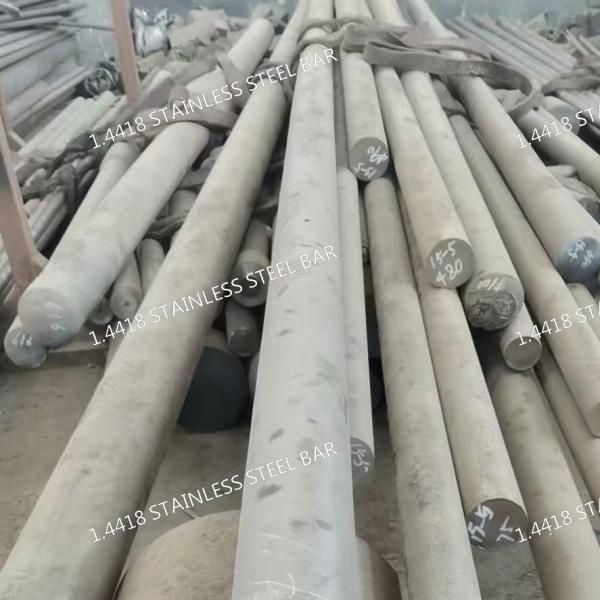

1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
1.4418 Stainless Steel Square Bar And Round Bar Forged And Hor Rolled Bright Polished Bar
Specifications
Brand Name :
Delta
Model Number :
1.4418 / S135 / F6NM / 0Cr13Ni5Mo / S41500
Certification :
ISO 9001
Place of Origin :
China
MOQ :
500 kgs
Price :
2500-3200 USD/Ton
Payment Terms :
T/T, Western Union
Supply Ability :
50 Ton per Month
Delivery Time :
5 - 10 days
Packaging Details :
wooden box or water resistant paper surround
Products Name :
1.4418 Stainless Steel bar
Diameter :
10 - 350mm
Length :
6m or cutting any length as request
Surface :
Pickling or Bright
Service :
Cutting
Standard :
ASTM DIN GB EN
Other products :
round bar, square bar, flat bar.etc
Technique :
hot rolled
Description

1.4418 Stainless Steel Square Bar and Round Bar Forged And Hor Rolled Bright Polished Bar

Products Specification

Products Name Stainless Steel Round Bar
Grade 1.4418 / S135 / F6NM / 0Cr13Ni5Mo / S41500
Products Diameter Range φ10mm - φ350mm
Length 6.1m/pcs or cutting any length as request
Surface Pickling finishing, bright finishing
Other Grade

304,304L,309S,310S,310H,316L,316Ti,316H,317L,321,329,347,410,415,420,

430F,431,440A/B/C,2205,2507,904l,254SMO,253MA,CD4MCU,XM-19,17-4PH,15-5PH,17-7PH,C276,600,601,625,718,800,800H,825,926.etc
Standard ASTM JIS,GB,DIN EN
Service Cutting
Other Shape Square , Flat, Hexagonal, Round.etc
Loading Port Shanghai Port
MOQ 500 kgs

Product Information: Hot-Rolled & Forged 1.4418 Stainless Steel Round Bar
Material Overview
  • Grade: 1.4418 (X3CrNiMo13-4)
  • Category: Martensitic stainless steel
  • Composition: Chromium (12.5-14.5%), Nickel (3.5-4.5%), Molybdenum (0.8-1.5%), Low Carbon (≤0.05%)
  • Advantages: Combines high tensile strength with excellent corrosion resistance in chloride - rich environments.
Manufacturing Process
  • Hot Rolling: Utilizes high - temperature forming to refine grain structure and enhance ductility.
  • Forging: Apply directional force to improve density and eliminate internal defects, ensuring superior mechanical properties.
Product Features
  • Surface Quality: As - rolled finish or machined to precision tolerances (e.g., h11/h12).
  • Diameter Range: 12mm - 250mm (standard stock); larger sizes (up to 600mm) available on request.
  • Length Options: 5.8m, 6m, or custom - cut lengths with chamfered ends.
Technical Specifications
  • Mechanical Properties:
    • Tensile Strength: 800 - 1000 MPa
    • Yield Strength: ≥650 MPa
    • Elongation: ≥12%
    • Impact Resistance: ≥27 J (Charpy V - notch, room temperature)
  • Heat Treatment: Quenched and tempered to achieve optimal hardness (240 - 320 HB).
Applications
  • Marine Equipment: Shafts, fasteners, and components for offshore platforms.
  • Power Generation: Turbine parts, pump rods in hydroelectric plants.
  • Chemical Processing: Valves and fittings for corrosive fluid handling.
  • Automotive: High - stress components in racing and heavy - duty vehicles.
Certifications
  • EN 10204 3.2 material certificate
  • AD2000 W0 approval
  • NORSOK M - 630 compliant (upon request)
Quality Control
  • Ultrasonic testing (UT) for internal integrity
  • Magnetic particle inspection (MPI) for surface defects
  • Chemical composition analysis via PMI
Packaging & Logistics
  • Protection: Greased, wrapped in anti - rust paper, and bundled in wooden crates.
  • Shipping: Containerized or bulk shipments; worldwide delivery within 25 - 40 days.
Custom Solutions
  • Special Finishes: Electropolished, passivated, or coated (e.g., PTFE).
  • Non - Standard Sizes: Rapid prototyping for bespoke requirements.
  • Value - Added Services: Threading, fluting, or CNC machining.
Why Partner With Us?
  • Vertical Integration: From raw material sourcing to final inspection.
  • Technical Support: In - house metallurgists available for application consulting.
  • Sustainability: Certified production with reduced carbon footprint.
