EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
Specifications
MOQ :
1 Ton
Price :
US $750-1,150 / Ton
Model Number :
DC01
Edge Type :
Slit edge
Sheet Dimensions :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Carbon Content :
max 0.12%
Manganese Content :
max 0.6%
Phosphorus Content :
max 0.045%
Sulfur Content :
max 0.045%
Tensile Strength :
270-410 MPa
Yield Strength :
280 MPa
Elongation (80mm) :
28%
Elongation (5.65√So) :
32%
Vickers Hardness :
105 HV
Standard :
EN 10130:2006, EN 10139:1997, EN 10152:2009, EN 10271:1999
Classification :
Non-alloy quality steel
Equivalent Grades :
SAE1008, SAE1010, FeP01, St12, SPCC, C, F12, CR4, AP00, 08, 08F, 1142, 11321, St02F, 08kp, 08ps, Cr01, CR22, O
Description
Product Specifications
Grade DC01
Number 1.0330
Classification Non-alloy quality steel
Dimensions 1.0mm × 1500mm × 3000mm
Coating Electrolytically Zinc Coated
Technical Standards
EN 10130:2006 Cold rolled low carbon steel flat products for cold forming
EN 10139:1997 Cold rolled uncoated mild steel narrow strip for cold forming
EN 10152:2009 Electrolytically zinc coated cold rolled steel flat products for cold forming
EN 10271:1999 Electrolytically zinc-nickel (ZN) coated steel flat products
Chemical Composition
Unless otherwise agreed, this grade may be supplied as alloy steel (for example with boron or titanium)
Element Maximum %
Carbon (C) 0.12
Manganese (Mn) 0.6
Phosphorus (P) 0.045
Sulfur (S) 0.045
Mechanical Properties
Tensile Strength (Rm) 270-410 MPa
Minimum Yield Strength (ReH) 280 MPa
Elongation (Lo = 80mm) 28% minimum
Elongation (Lo = 5.65√So) 32% minimum
Vickers Hardness (HV) 105
International Equivalent Grades
Warning! Equivalent grades are for reference only
Region Equivalent Standards
USA SAE1008, SAE1010
Germany FeP01, St12
Japan SPCC
France C, F12, FeP01
England CR4, FeP01
China 08, 08F
Russia 08kp, 08ps

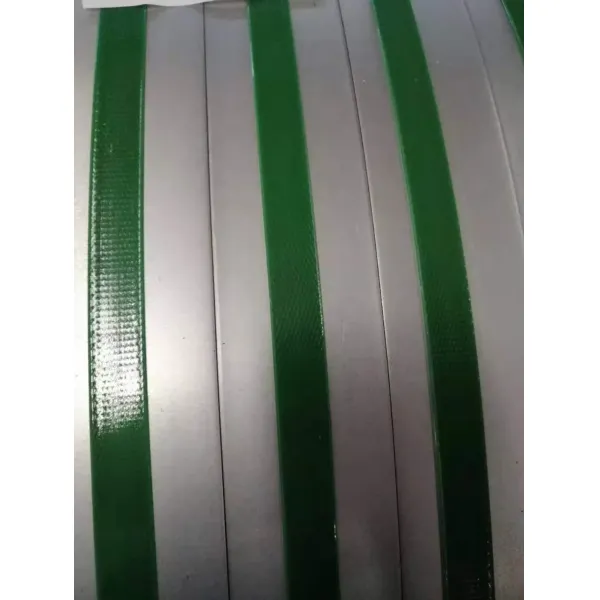

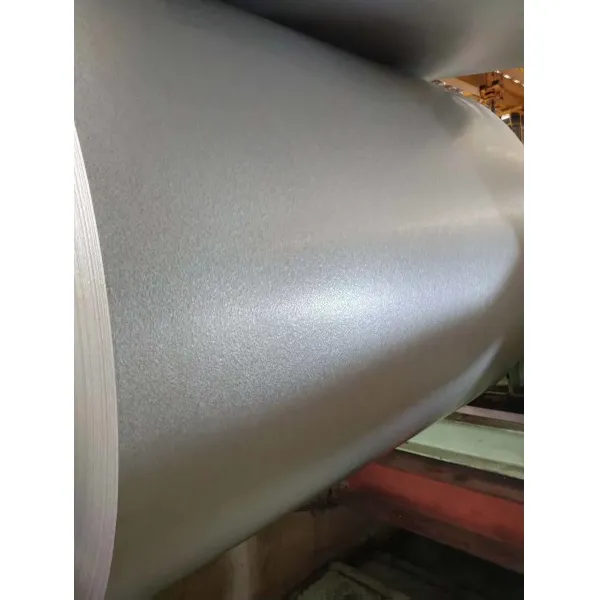

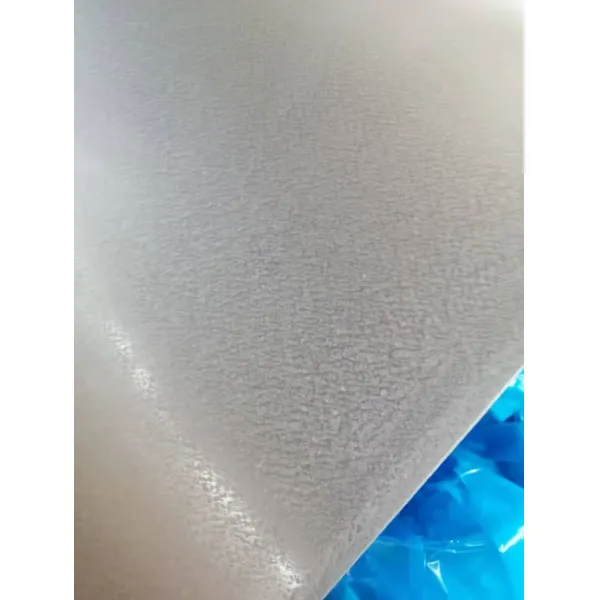

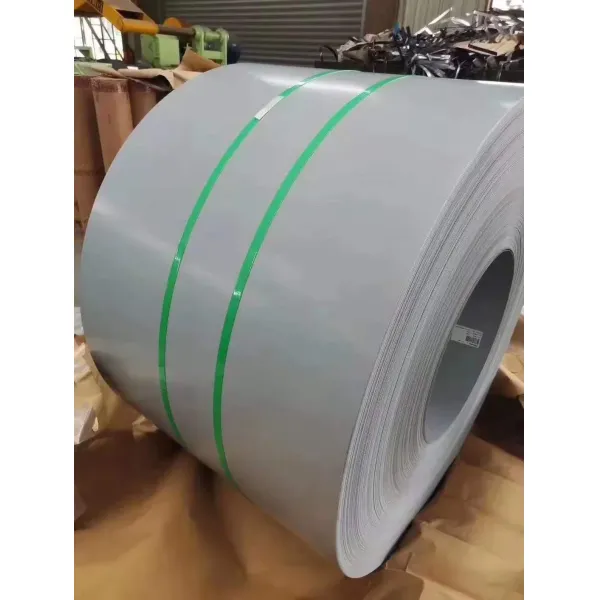

Product Images
EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size EN 10152 Standard DC01 Cold Rolled Steel Sheet with 1.0mm Thickness and 1500*3000mm Size
