Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
Specifications
MOQ :
1 Ton
Price :
US $750-1,150 / Ton
Model Number :
DC01(ST12)
Grade :
DC01
Number :
1.0330
Classification :
Non-alloy quality steel
Carbon Content :
max 0.12%
Manganese Content :
max 0.6%
Phosphorus Content :
max 0.045%
Sulfur Content :
max 0.045%
Tensile Strength :
270-410 MPa
Yield Strength :
280 MPa
Elongation (Lo=80mm) :
28%
Elongation (Lo=5.65√So) :
32%
Vickers Hardness :
105 HV
Dimensions :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Edge Type :
Slit edge
Description
DC01 (ST12) Electrolytically Galvanized Steel Sheet
Thin sheet metal DC01 (ST12) electrolytically galvanized steel sheet DC 01+ Ze 25/25 a PC ungreased / Type 1.0330
Product Specifications
Grade: DC01
Number: 1.0330
Classification: Non-alloy quality steel
Standards Compliance
  • EN 10130: 2006 Cold rolled low carbon steel flat products for cold forming
  • EN 10139: 1997 Cold rolled uncoated mild steel narrow strip for cold forming
  • EN 10152: 2009 Electrolytically zinc coated cold rolled steel flat products for cold forming
  • EN 10271: 1999 Electrolytically zinc-nickel (ZN) coated steel flat products
Chemical Composition
Chemical composition % of steel DC01 (1.0330): EN 10130-2006
Unless otherwise agreed at the time of inquiry and order, this grade may be supplied as alloy steel (for example with boron or titanium)
Element Maximum %
C (Carbon) 0.12
Mn (Manganese) 0.6
P (Phosphorus) 0.045
S (Sulfur) 0.045
Mechanical Properties
Property Value
Tensile Strength (Rm) - MPa 270-410
Minimum Yield Strength (ReH) - MPa 280
Min. Elongation Lo = 80 mm (%) 28
Min. Elongation Lo = 5,65 √ So (%) (+A) 32
Vickers Hardness (HV): (+A) 105
International Equivalent Grades
Warning! Equivalent grades are provided for reference only
Region Standard Equivalent Grade
EU EN DC01
USA SAE 1008, 1010
Germany DIN, WNr FeP01, St12
Japan JIS SPCC
France AFNOR C, F12, FeP01
England BS CR4, FeP01
China GB 08, 08F
Russia GOST 08kp, 08ps
International ISO Cr01, CR22

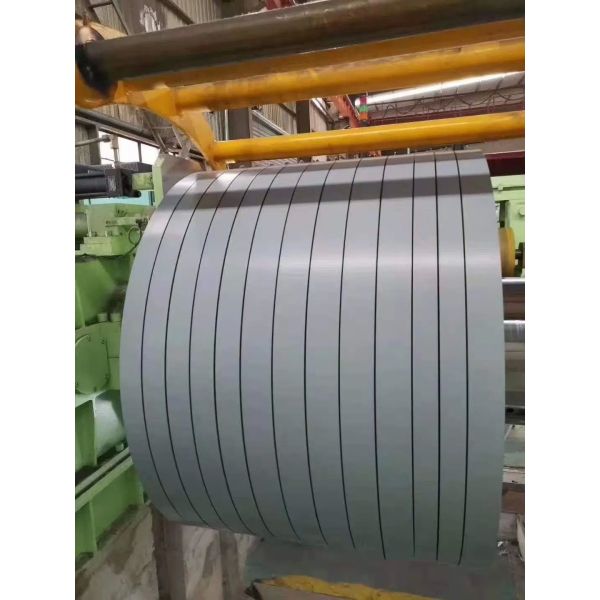

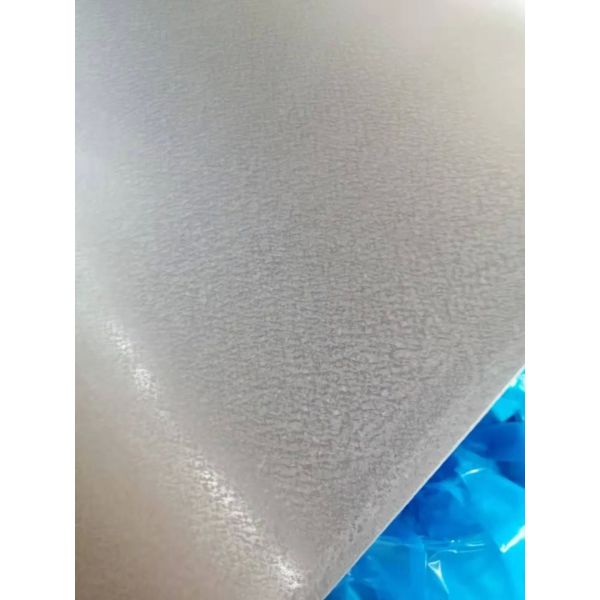

Product Images
Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
