EN10216-2 Standard High Temperature and High Pressure Resistant Seamless Steel Boiler Pipe
EN10216-2 Standard High Temperature and High Pressure Resistant Seamless Steel Boiler Pipe
Specifications
MOQ :
1 Ton
Price :
US $680-1,120 / Ton
Model Number :
P235GH P265GH P235TR-1 16Mo3 20MnNb6
Surface Treatment :
Black
Section Shape :
Round
Outer Diameter :
6-630mm
Production Capacity :
50000kgs
Carbon Content :
≤0.16% (P235GH)
Silicon Content :
≤0.35% (P235GH)
Manganese Content :
≤1.20% (P235GH)
Phosphorus Content :
≤0.025%
Sulfur Content :
≤0.020%
Chromium Content :
≤0.30%
Molybdenum Content :
≤0.08%
Tensile Strength :
360-500 MPa (P235GH)
Yield Strength :
≥238 MPa (P235GH)
Elongation :
25% (P235GH)
Description
EN10216-2 Seamless Steel Pipes for High Temperature Applications
EN10216-2 P235GH seamless steel pipes are engineered for high temperature and high pressure applications. These premium quality pipes are extensively used in boilers, heating systems, superheaters, reheaters, pressure vessels, and industrial instrumentation.
Available Material Grades
Our comprehensive range includes P195GH, P235GH, and P265GH grades, each with distinct inspection requirements, chemical compositions, and mechanical properties to meet specific application needs.
Chemical Composition
Standards Steel Pipes No. C Si Mn P S Cr Mo Cu Ni Al Nb
EN10216-2 15NiCuMoNb5-6-4 (WB36) ≤0.17 0.25~0.50 0.80~1.20 ≤0.025 ≤0.020 ≤0.30 0.25~0.50 0.50~0.80 1.00~1.30 ≤0.05 0.015~0.045
EN10216-2 P195GH ≤0.13 ≤0.35 ≤0.70 ≤0.025 ≤0.020 ≤0.30 ≤0.08
EN10216-2 P235GH ≤0.16 ≤0.35 ≤1.20 ≤0.025 ≤0.020 ≤0.30 ≤0.08
EN10216-2 P265GH ≤0.20 ≤0.40 ≤1.40 ≤0.025 ≤0.020 ≤0.30 ≤0.08
EN10216-2 20MnNb6 ≤0.22 0.15~0.35 1.00~1.50 ≤0.025 ≤0.020 / /
EN10216-2 16Mo3 0.12~0.20 ≤0.35 0.40~0.90 ≤0.025 ≤0.020 ≤0.30 ≤0.08
Physical Properties
Standards Steel Pipes No. Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
EN10216-2 15NiCuMoNb5-6-4 (WB36) 610~780 ≥440 ≥19
EN10216-2 P195GH 320~440 ≥195 27
EN10216-2 P235GH 360~500 ≥238 25
EN10216-2 P265GH 410~570 ≥265 23
EN10216-2 20MnNb6 500~650 ≥355 22
EN10216-2 16Mo3 450~600 ≥280 22
Product Features & Specifications
  • Compliant with EN10216-2 European standard for seamless steel pipes
  • Certified for use in multiple European countries including Germany, France, UK, and Italy
  • Available with surface painting, chamfering, threading, and protective end caps
  • Custom export packaging ensures safe transportation and delivery
  • Ideal for boiler systems, pressure vessels, and high-temperature applications

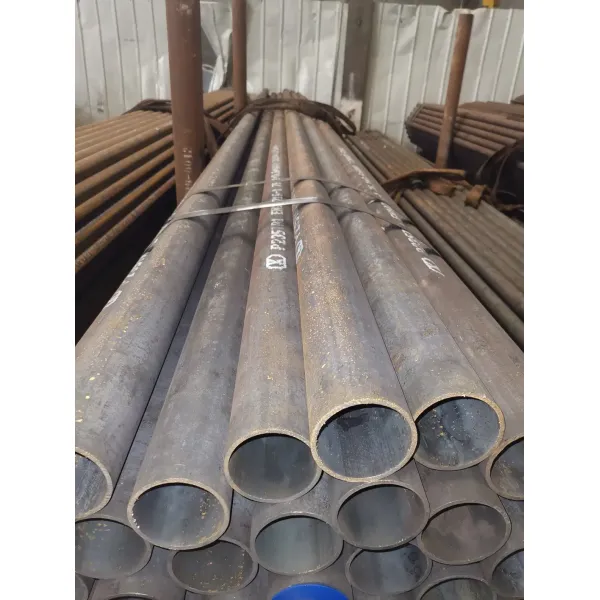

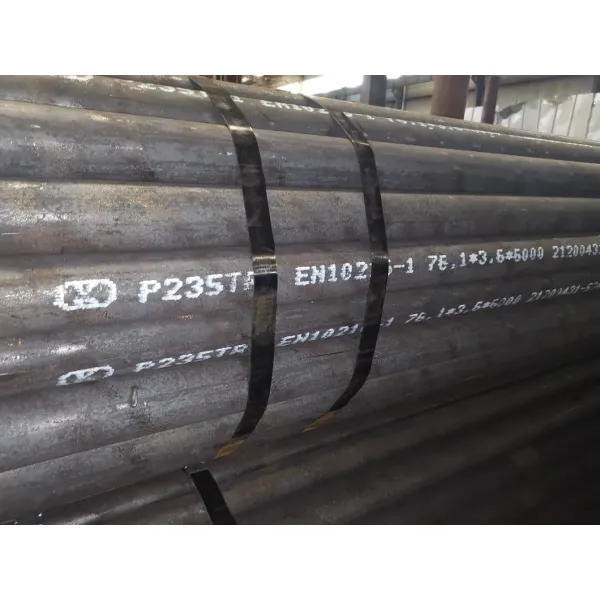

Product Images
EN10216-2 Standard High Temperature and High Pressure Resistant Seamless Steel Boiler Pipe EN10216-2 Standard High Temperature and High Pressure Resistant Seamless Steel Boiler Pipe
