C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
Specifications
MOQ :
500 kg
Price :
US $7-10 / kg
Model NO. :
c12000
Shape :
Round
Alloy :
Non-alloy
Diameter :
4 - 250mm
Length :
Custom Any Length as Request
Material :
Copper
Grade :
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C443
Temper :
O-H112; T3-T8; T351-T851
Size :
thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm
Surface :
Mill finish, polished, anodizing, brushing, sand blasting, powder coating
Chemical Composition :
Cu:99.90;P:0.004-0.012
Tensile Strength :
215 ~ 271 MPa
Elongation :
≥25%
Hardness :
55 ~ 100HV
Other Shape :
Round,Square,Flat,Hexagonal
Description
C12000 (TP2) Copper Bar - Diameter 4-300mm Custom Cutting
High-quality phosphorous deoxidized copper bars available in diameters from 4mm to 300mm with custom cutting to any required length.
Product Specifications
Product NameCopper Bar
MaterialCopper
StandardASTM, AISI, JIS, DIN, GB, EN
GradeC10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200, T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1
ShapeFlat plate
TemperO-H112; T3-T8; T351-T851
SizeThickness: 0.3mm-100mm; Width: 50mm-2500mm; Length: 1000mm-12000mm
SurfaceMill finish, polished, anodizing, brushing, sand blasting, powder coating, etc.
Payment TermsT/T, L/C, Western Union, Paypal
Price TermsCFR, FOB, CIF, Ex-work, CNF
Applications
  • Further making utensil
  • Solar reflective film
  • Building appearance
  • Interior decorating: ceilings, walls, etc.
  • Furniture cabinets
  • Elevator decoration
  • Signs, nameplates, bags making
  • Decorated inside and outside vehicles
  • Household appliances: refrigerators, microwave ovens, audio equipment, etc.
  • Consumer electronics: mobile phones, digital cameras, MP3 players, USB drives, etc.
Package & Contact
Standard export seaworthy package or as required. Please contact us with any questions.
Material Description
C12000 (TP2) copper bar refers to phosphorous deoxidized copper, a high-purity fusible raw material suitable for use in reducing atmospheres but not in oxidizing atmospheres. Commonly used in gasoline or gas delivery pipes, drain pipes, condensate pipes, mine tubes, condensers, evaporators, heat exchangers, and train box components.
Chemical Composition
Cu: 99.90%; P: 0.004-0.012%
Mechanical Properties
Tensile strength: 215-271 MPa; Elongation: ≥25%; Hardness: 55-100 HV
Product NameC12000 Copper Bar
Length1-6m, or as needed
Diameter3-800mm, or as needed
StandardGB, ASTM, BS, DIN, JIS
GradePhosphorous Deoxidized Copper
Cu (min)99%
ApplicationElectronic, Industry, Decoration
International Grade Equivalents
China (GB)Germany (DIN)Europe (EN)International (ISO)US (UNS)Japan (JIS)
TU2OF-Cu2.004Cu-OFEC10200C1020
T2Se-Cu2.0065Cu-ETPC11000C1100
TP2SF-Cu2.0090Cu-DHPC12000C1220
Equivalent Standards
ASME SB111, ASTM B152, ASTM B359, ASTM B506, ASTM B716, ASME SB133, ASTM B187, ASTM B372, ASTM B623, ASTM B716, ASME SB359, ASTM B188, ASTM B395, ASTM B638, ASTM B743, ASME SB395, ASTM B224, ASTM B42, ASTM B640, ASTM B75, ASME SB42, ASTM B272, ASTM B442, ASTM B641, MIL B-18907, ASME SB75, ASTM B280, ASTM B447, ASTM B68, MIL B-20292, ASTM B111, ASTM B302, ASTM B451, ASTM B687, MIL T-24107, ASTM B133, ASTM B306, ASTM B5, ASTM B698, MIL T-3235, SAE J463, MIL W-85, SAE J461

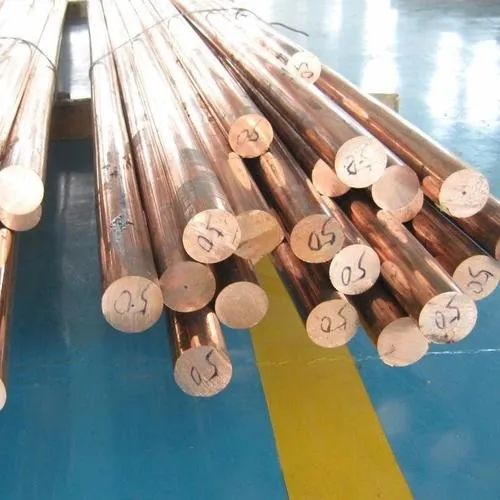

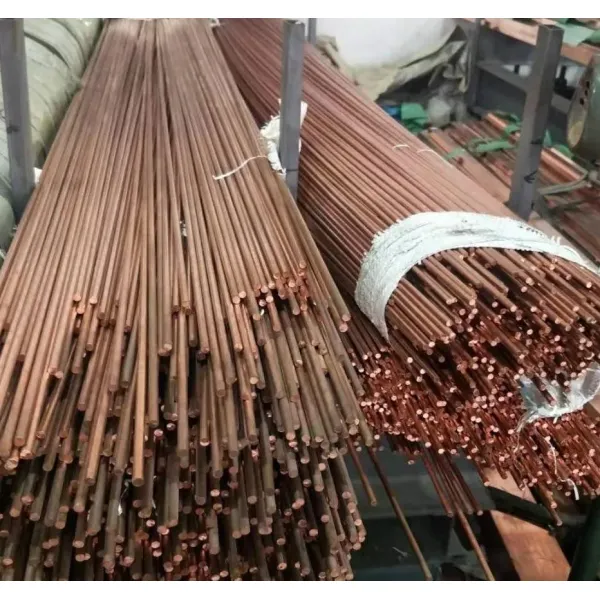

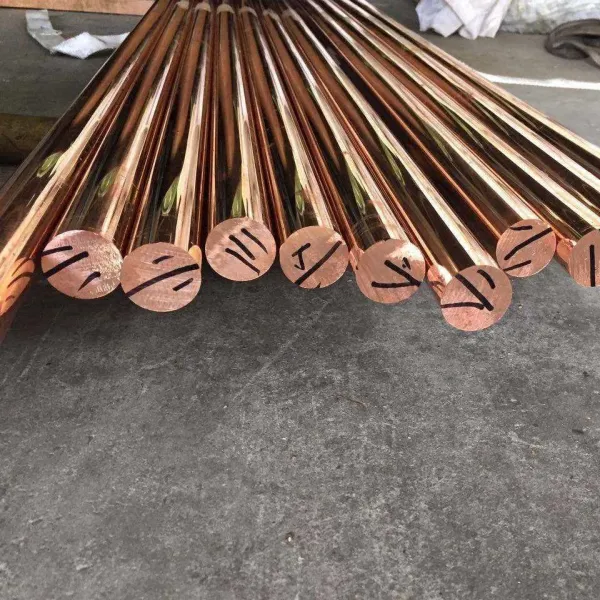

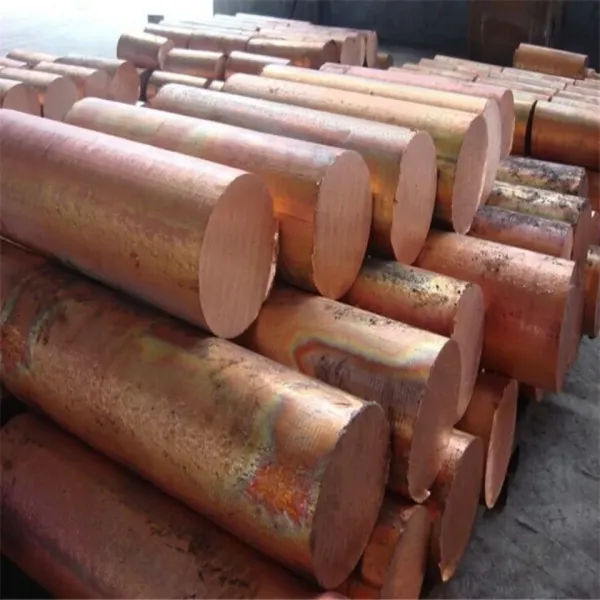

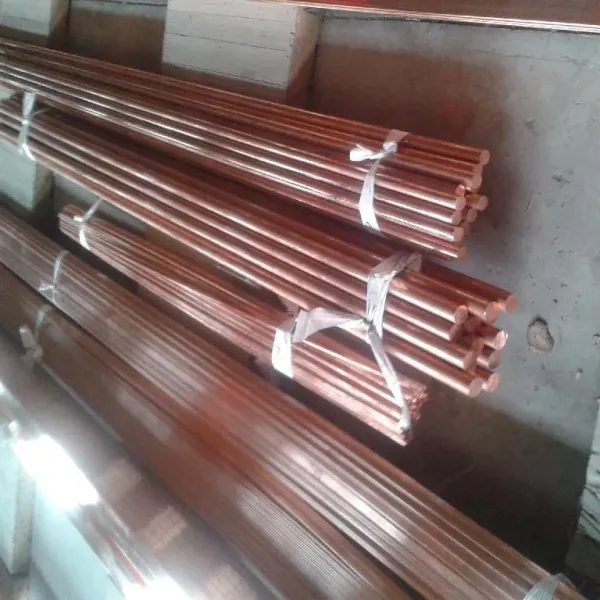

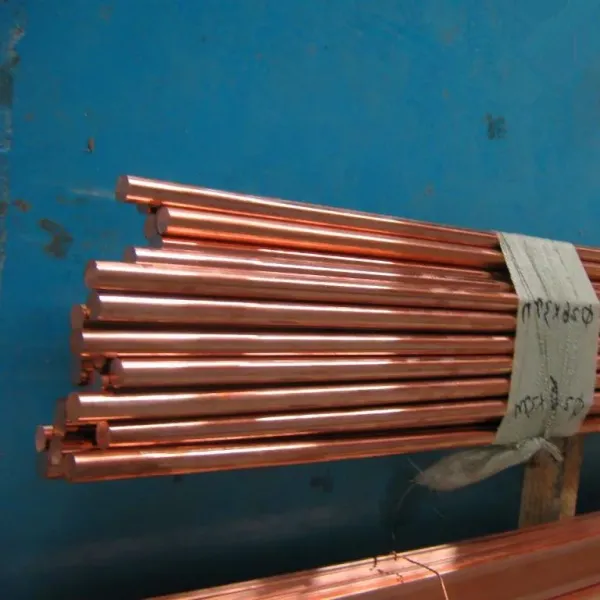

Product Images
C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length C12000 (TP2) Phosphorous Deoxidized Copper Bar Diameter 4 - 300mm Custom Cutting Any Length
