C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
Specifications
MOQ :
500 kg
Price :
US $8.13-8.52 / kg
Model NO. :
C11000
Shape :
Coil
Alloy :
Non-alloy
Color :
Red
Diameter :
6*3-300*50mm
Length :
1-6m or Cutting Any Length as Request
Surface :
Bright
Copper Grade :
C11000,C10100,C12200
Size Range :
Round Bar: 6mm - 200mm, Square Bar: 4x4mm - 200x200mm, Hex Bar: 8x8mm - 100x100mm, Flat Bar: 20x2mm - 200x20mm
Processing :
Extrusion/cold drawn
Temper :
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finish :
Mill, polished, bright, oiled, hair line, brush, mirror, sand blast
Chemical Composition :
Cu ≥99.90
Melting Point :
934 to 967 degrees
Container Size :
20ft GP: 5.9m x 2.13m x 2.18m, 40ft GP: 11.8m x 2.13m x 2.18m, 40ft HG: 11.8m x 2.13m x 2.72m
Description
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
Product Specifications
Product Name Copper Flat Bar
Copper & Copper Alloy Grades C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200, C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561, CuZn30, CuZn32, CuZn35, CuZn37, CuZn40, TU1, T2, TP2, and more
Available Sizes Round Bar: 6mm - 200mm
Square Bar: 4x4mm - 200x200mm
Hex Bar: 8x8mm - 100x100mm
Flat Bar: 20x2mm - 200x20mm
Standard Lengths 2m, 3m, 5.8m, 6m, or custom lengths as required
Processing Method Extrusion / Cold Drawn
Temper Options 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finishes Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required
Material Description
C11000 copper bar offers excellent electrical and thermal conductivity, corrosion resistance, and processing properties. It can be welded and brazed effectively. With low impurity content that minimally affects conductivity, this material provides reliable performance, though it may be susceptible to "hydrogen disease" during high-temperature processing above 370°C.
Chemical Composition
Grade Cu Pb Fe Zn
C11000 ≥99.90% - - -
Product Types & Dimensions
Type Grade Shape Temper Dimension (mm) Length (mm)
Extruded C11000 Round O 16-<30 L500-5000
Extruded C11000 Round O 30-300 OD≤50 L1000-5000
OD:50-75 L500-5000
Extruded C11000 Rectangle O 20-120 OD>75-120 L500-4000
Extruded C11000 Square, Hexagonal O 20-120 OD>120 L300-4000
Drawing C11000 Round O, H 6-80 OD≤50 L1000-500
OD>50-80 L500-5000
Drawing C11000 Square, Hexagonal H 8-60 8-60
Product Introduction
Copper bars are non-ferrous metal processing bars known for excellent processing performance and high conductivity. They are primarily categorized as:
  • Brass Rods: Copper-zinc alloys with yellow coloration, melting points of 934-967°C, offering good mechanical properties and wear resistance. Used in precision instruments, ship parts, gun casings, automotive synchronizer gear rings, marine pumps, valves, and structural components.
  • Purple Copper Rods: High copper content with purple-red color, featuring superior electrical conductivity, thermal conductivity, corrosion resistance, and processing properties. Characterized by high purity, fine structure, low oxygen content, and excellent ductility for fine machining applications.
Packaging & Delivery
Export standard packaging, bundled or as required. Container specifications:
  • 20ft GP: 5.9m (length) × 2.13m (width) × 2.18m (height) - approximately 24-26 CBM
  • 40ft GP: 11.8m (length) × 2.13m (width) × 2.18m (height) - approximately 54 CBM
  • 40ft HG: 11.8m (length) × 2.13m (width) × 2.72m (height) - approximately 68 CBM

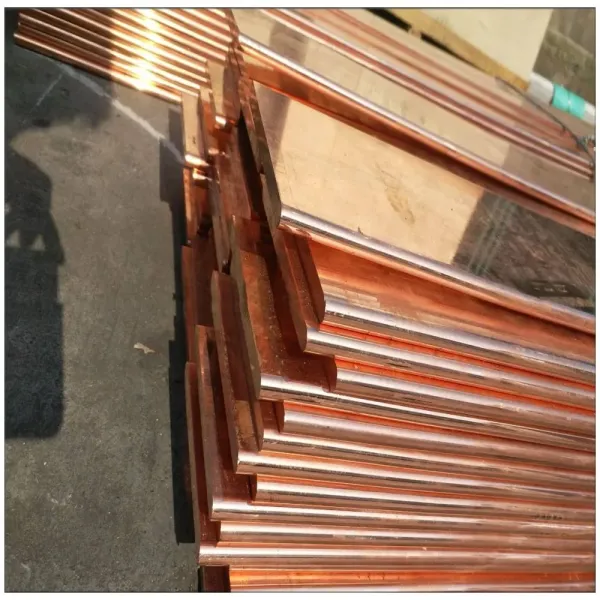

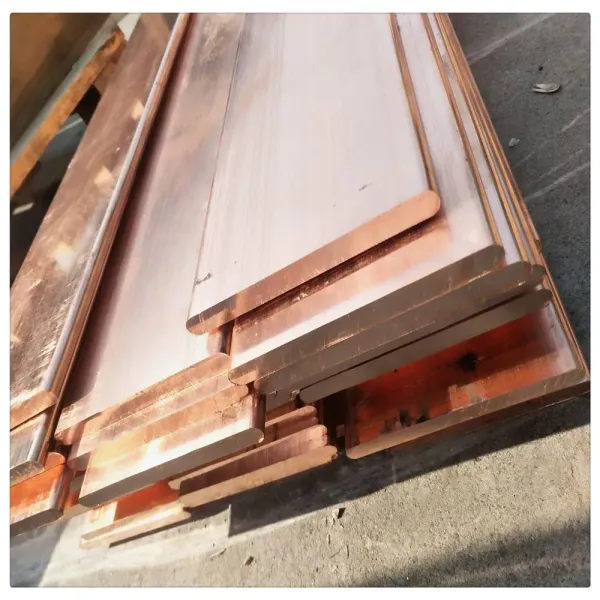

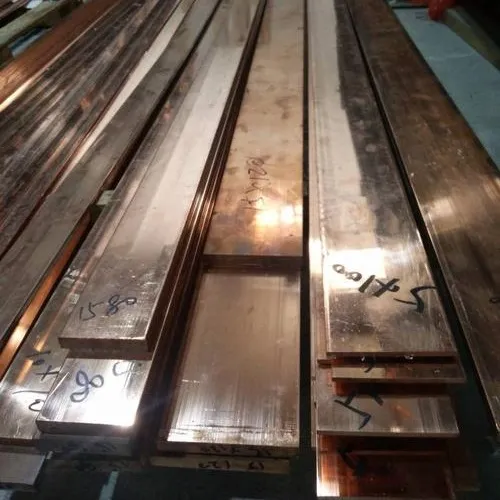

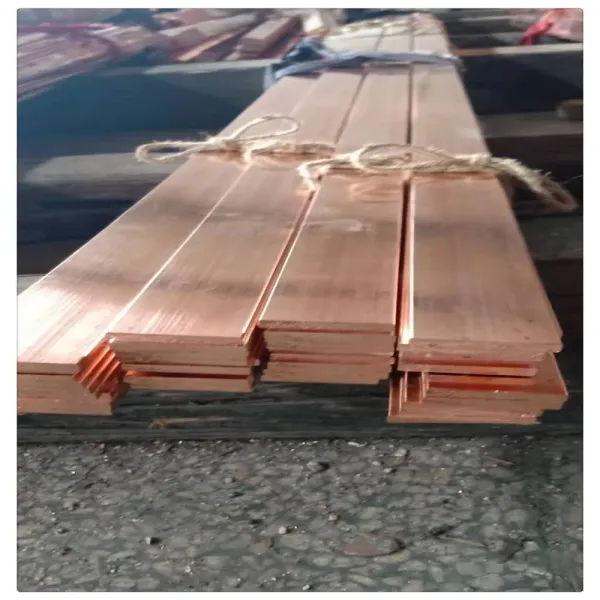

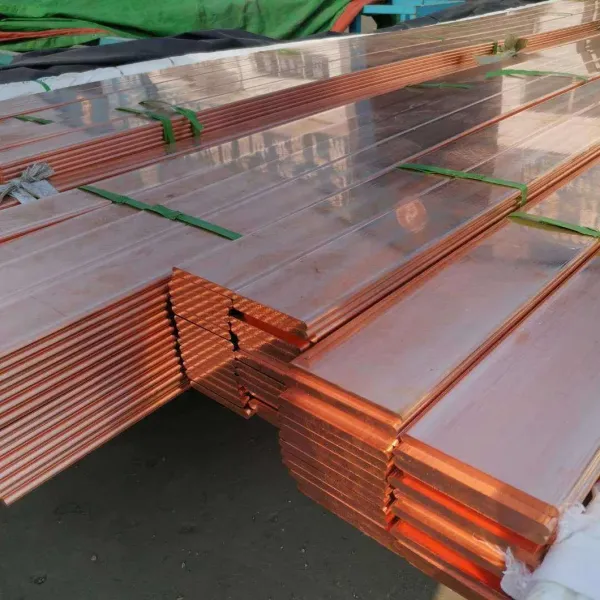

Product Images
C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications C11000 ASTM Standard Copper Flat Bar Red Copper Strip 6*3-300*50mm for Structural Applications
