Specifications
MOQ :
500 kg
Price :
US $8-9 / kg
Model NO. :
C11000
Shape :
Flat
Alloy :
Non-alloy
Size :
10*3-200*40mm or as Request
Length :
3-6m as Request
Other Shape :
Square, Hexagonal, Round
Copper Grade :
C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200, C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561, CuZn30, CuZn32, CuZn35, CuZn37, CuZn40, TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H6
Processing :
Extrusion/cold drawn
Temper :
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finish :
Mill, polished, bright, oiled, hair line, brush, mirror, sand blast
Thickness :
1mm to 60mm
Width :
5mm to 350mm
Max Length :
6400 mm (21')
Conductivity :
100% IACS
Purity :
99.9%
Description
Pure Copper Flat Bar C11000 / T2 Copper Flat Plate
High-quality pure copper flat bars and plates specifically designed for electronic applications, available in standard 6-meter lengths with various customization options.
Product Specifications
Product Name Copper Flat Bar
Copper Grades C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, and various other copper alloys
Available Sizes Round Bar: 6mm - 200mm
Square Bar: 4x4mm - 200x200mm
Hex Bar: 8x8mm - 100x100mm
Flat Bar: 20x2mm - 200x20mm
Standard Lengths 2m, 3m, 5.8m, 6m, or custom lengths as required
Processing Method Extrusion / Cold Drawn
Temper Options 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finish Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required
Material Description
C11000 Electrolytic Tough Pitch (ETP) Copper offers excellent corrosion resistance, making it suitable for underground applications where soil corrosion resistance is required. This material demonstrates excellent ductility combined with high electrical and thermal conductivity, making it ideal for electrical applications.
Copper flat bars are extensively used in conduction and electricity industries due to copper's superior electrical conductivity among common metals. Only silver offers better conductive properties. Our materials are applied in electrical engineering, switch board construction, grounding systems, lightning protection, and decorative applications.
Technical Specifications
  • Standard: ASTM B187
  • Item: Copper Flats ETP
  • Size: Width up to 152.4mm (6")
  • Additional Standards: GB/T5231-2001, GB/T1527-2006, JISH3100-2006, JISH3250-2006, JISH3300-2006, and various ASTM standards
  • Thickness: 1mm to 60mm
  • Width: 5mm to 350mm
  • Length: Up to 6400mm (21')
  • Types: Copper Bars, Flats, Rectangular, Rectangle profiles
Application Areas
  • Bus Bars
  • Transformer Connectors
  • Earthling Protection in L.T. and H.T. Electrical Panels
  • Power Transmission Equipment
  • Control Panels
Manufacturer Information
Established in 1994, we are a China-based manufacturer with global distribution to domestic markets, South Asia, Eastern Asia, Mid East, Southeast Asia, South America, Oceania, Africa, and various European and American markets.
Quality Assurance
  • Pre-production samples provided before mass production
  • Final inspection conducted before shipment
  • Annual production capacity up to 50,000MT
  • Products currently distributed to over 52 countries worldwide
Product Range
Copper/Brass Bar, Copper/Brass Sheet, Copper/Brass Strip, Copper/Brass Pipe
Services & Terms
Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR

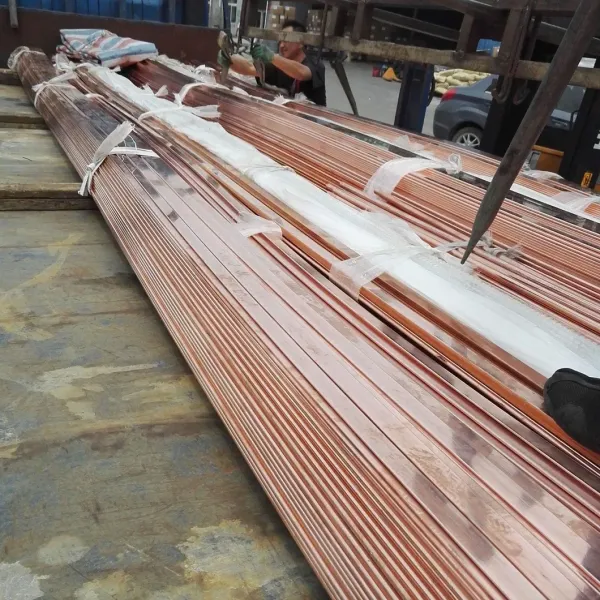

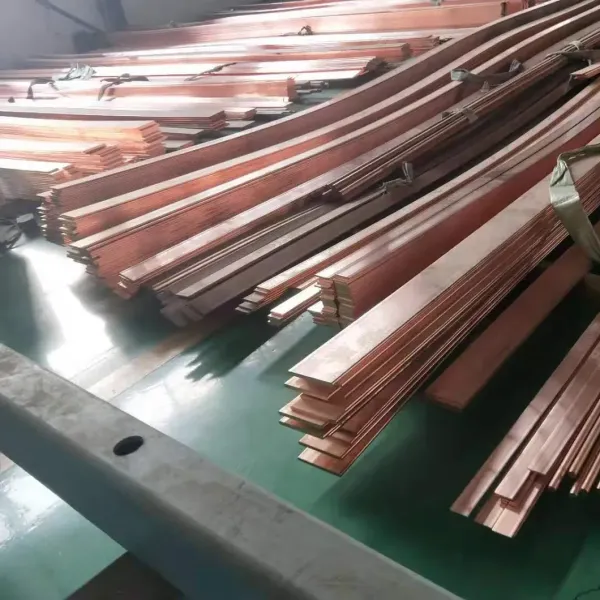

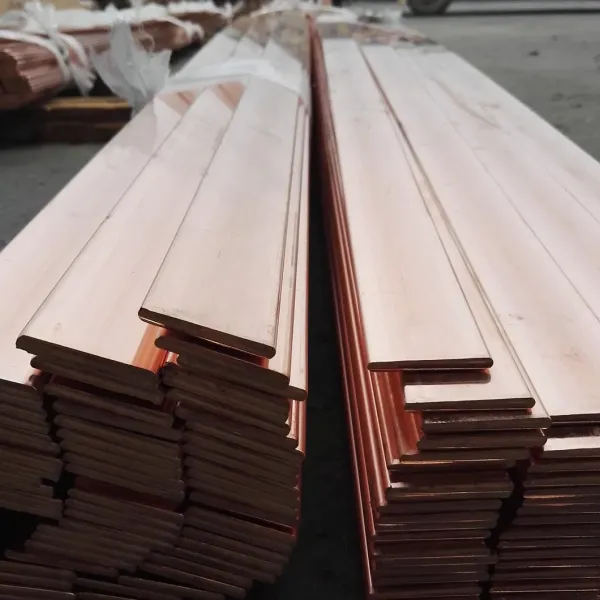

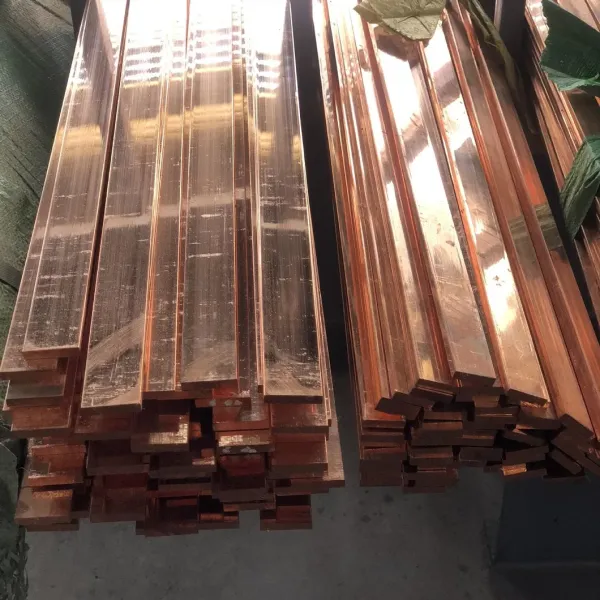

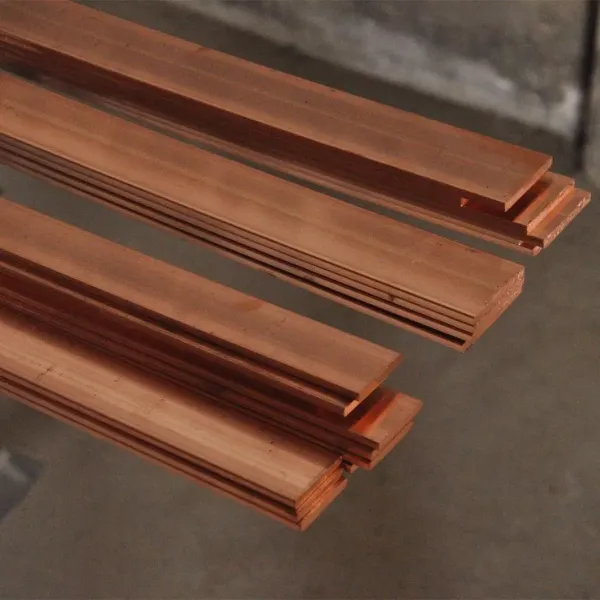

Product Gallery
Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area Pure Copper Flat Bar C11000 / T2 Copper Flat Plate in 6m Length for Electronic Area
