Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
Specifications
Certification :
AISI
MOQ :
50 kg
Price :
US $2.35-4.65 / kg
Model NO. :
321
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Bright
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity :
50000kgs
Thickness Range :
0.1 to 100 mm
Width Range :
10-2500mm
Length Range :
2m, 2.44m, 3m, or as required
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Yield Strength :
30 ksi
Tensile Strength :
75 ksi
Elongation :
40%
Density :
0.286 lb/in3
Modulus of Elasticity :
28.0 x 106 psi
Description
ASTM A240 ASME SA240/SA240m S32168 321 Stainless Steel Plate
Grade 321 / 321H Stainless Steel Sheet UNS S32100 Overview
321 stainless steel is a titanium-stabilized grade specifically designed for service in the 1000-1600°F temperature range. For optimal performance at temperatures up to 1600°F, a stabilizing treatment at 1550-1650°F followed by air cooling is recommended to provide maximum resistance to intergranular corrosion and polythionic acid stress corrosion cracking.
This grade is readily weldable using all common methods, including submerged arc welding. Appropriate weld fillers include AWS ER347 bare wire and E347 covered electrodes. With a machinability rating of 45% relative to AISI B1112, 321 stainless steel offers similar machining characteristics to 304 stainless steel.
Available Product Forms
Sheet, plate, coil, strip, wire, pipe, tube, bar, profile, round, flat, square, hexagonal
Specifications and Dimensions
Standards and Certifications
  • Grade 321/321H
  • ASTM A240, ASME SA240, BS EN 10028-7, BS EN 10088-2 and BS EN 10088-4
  • EN 10088/2, EN 10088/4 and CE Marking
  • NACE MR 0175/ISO 15156 Certification
Product Type 321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification ASTM A240 / ASME SA240
Tolerances EN 10258/ DIN 59381
International Standards ASTM A480, ASTM A959, ASME IID, EN ISO 9445, EN ISO 18286, EN 10051, EN 10088-1, ISO 15510
Dimension Ranges
Width 600mm - 2030mm
Thickness 0.1mm - 120.0mm
Length 300mm - 6000mm (Maximum 18000mm)
Available Finishes
No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating, color-coating, embossing
Other Trade Names
SS 321, SUS 321, Inox 321, DIN 1.4541, UNS S32100, AISI 321, SAE 321 Sheet
Applications
  • Aircraft piston engine manifolds
  • Expansion joints
  • Firearms production
  • Thermal oxidizers
  • Refinery equipment
  • High temperature chemical process equipment
Technical Data
Chemical Composition (wt%)
Element321
Carbon0.08
Chromium17.0-19.0
Nickel9.0-12.0
Manganese2.00
Silicon0.75
Nitrogen0.10
Phosphorus0.045
Sulfur0.030
Titanium5(C+N) min / 0.70 max
Mechanical Properties
Property321
Yield Strength, min. (ksi)30
Tensile Strength, min. (ksi)75
Elongation, min. (%)40
Hardness, max. (Rb)95
Physical Properties
Property321 Data
Density, lb/in³0.286
Modulus of Elasticity, psi28.0 x 10⁶
Coefficient of Thermal Expansion, 68-212˚F, /˚F9.2 x 10⁻⁶
Thermal Conductivity, Btu/ft hr ˚F9.3
Specific Heat, Btu/lb ˚F0.12
Electrical Resistivity, Microohm-in28.4
International Grade Equivalents
GradeUNS NoBritishEuronormSwedish SSJapanese JIS
321S32100321S311.45412337SUS 321
321HS32109321S511.4878-SUS 321H
347S34700347S311.45502338SUS 347
Alternative Grades
GradeSelection Criteria
304LWhen resistance to intergranular corrosion is required without high-temperature strength needs
3CR12For mild high-temperature environments up to approximately 600°C
304HFor mild high-temperature environments up to approximately 800°C
310For operating environments up to approximately 1100°C
S30815 (253MA)For operating environments up to approximately 1150°C

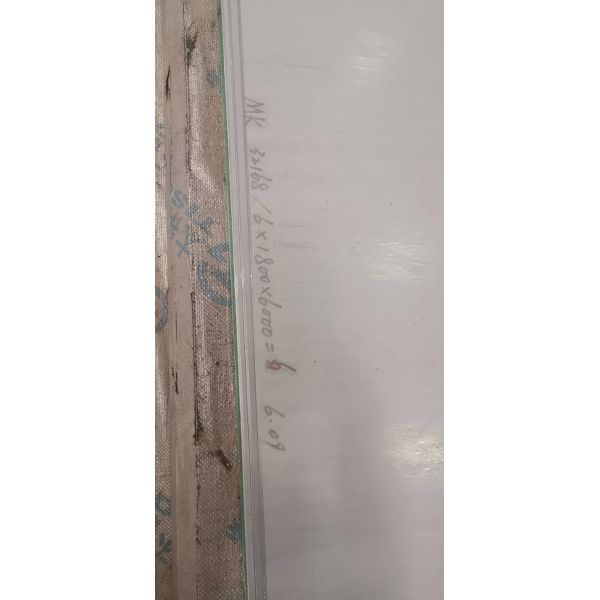

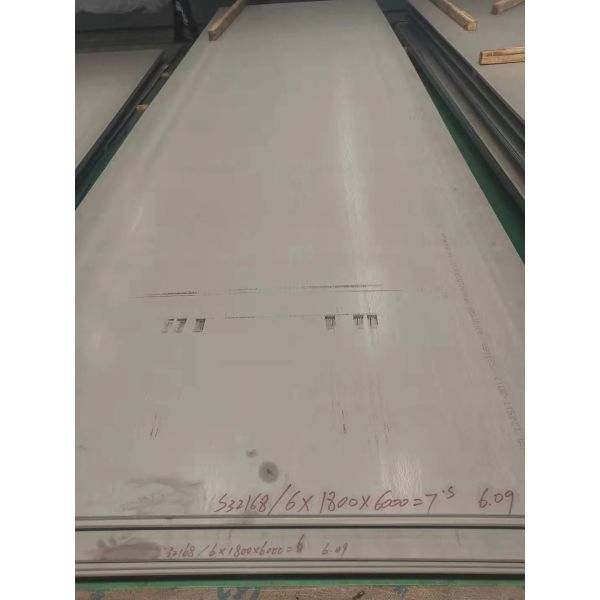

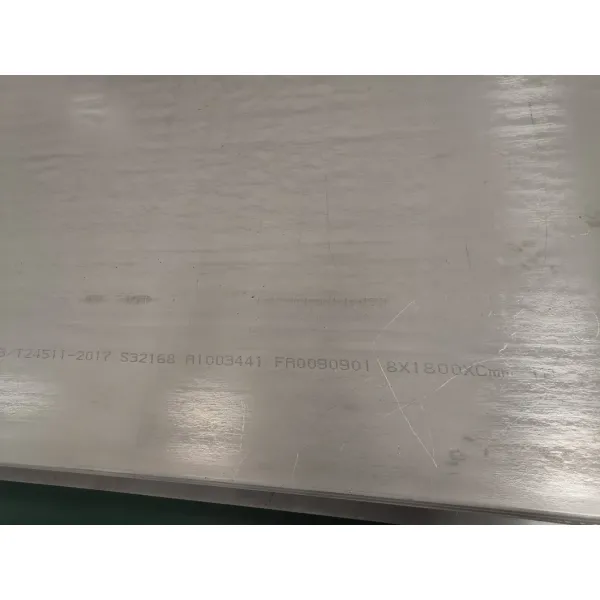

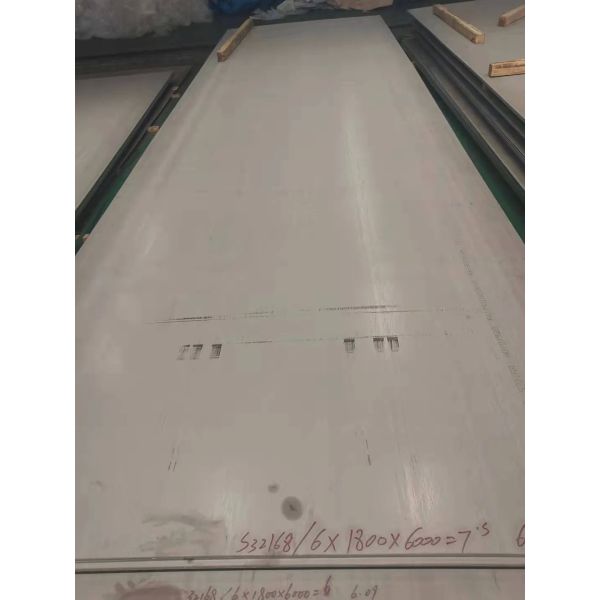

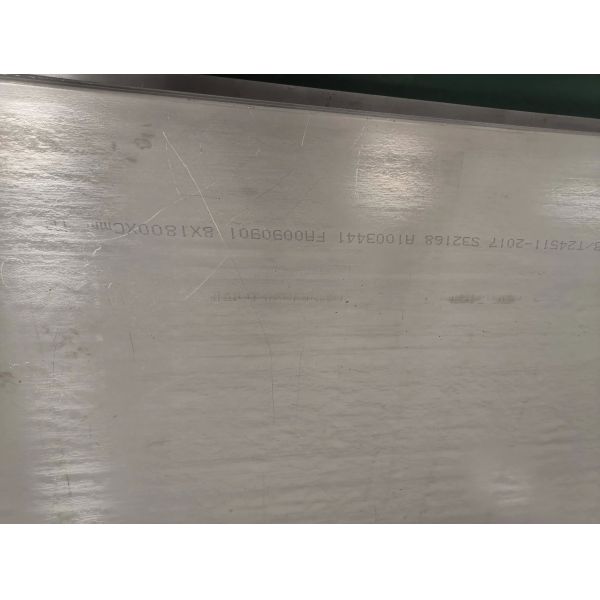

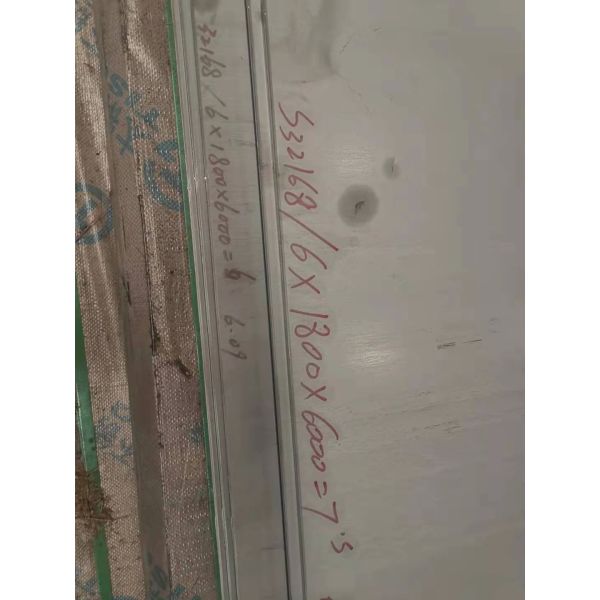

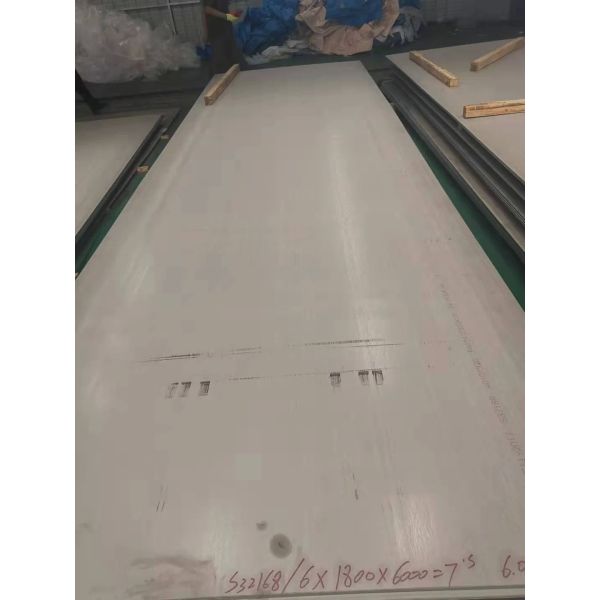

Product Images
Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168 Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168 Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168 Cold Rolled Bright Surface ASTM A240 ASME SA240 321 Stainless Steel Plate S32168
